2006 Suzuki GSX-R1000 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2006 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

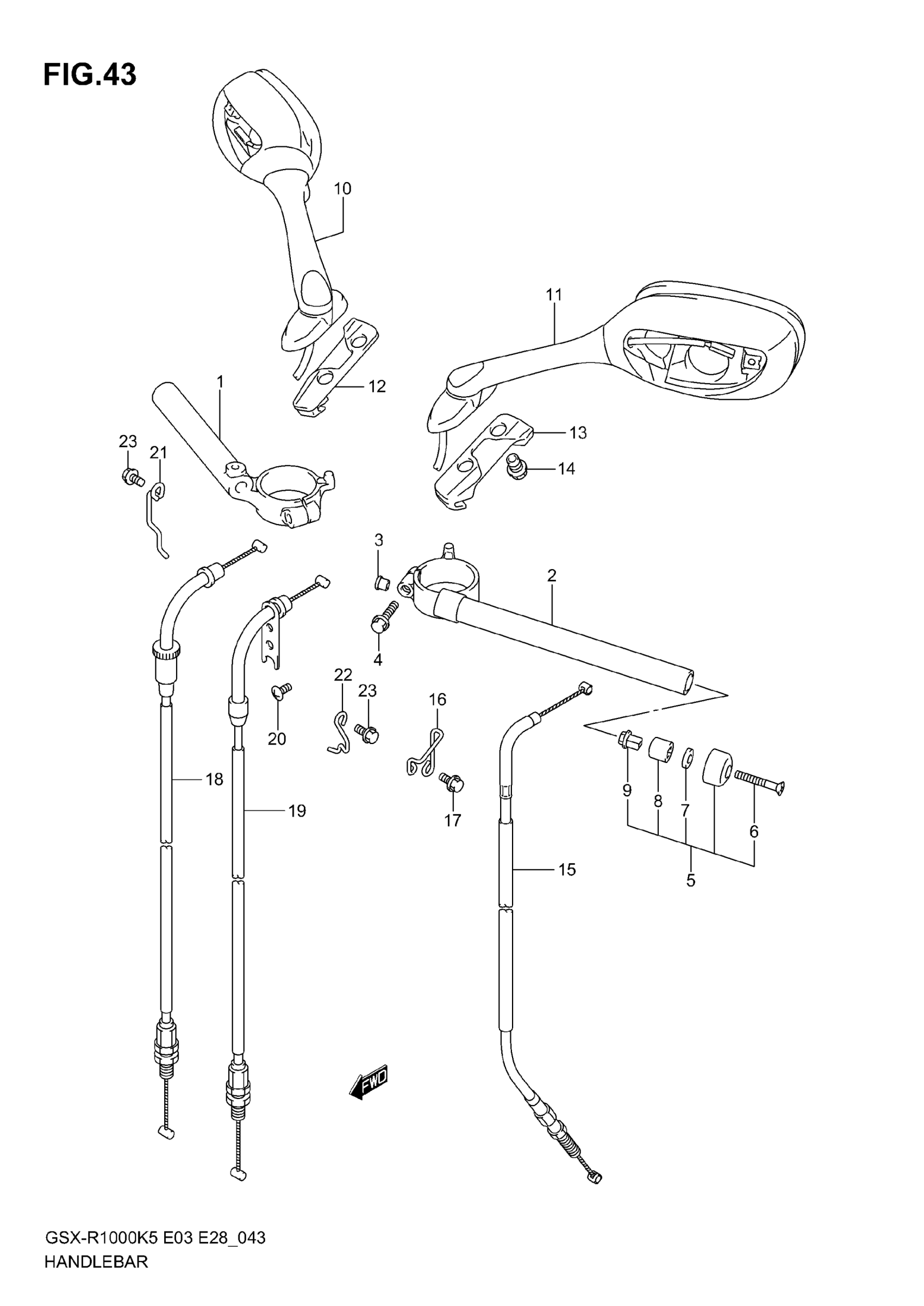

2006 Suzuki GSX-R1000 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR, RH

56111-41G00

1
Out of stock

2

HANDLEBAR, LH

56151-41G00

1
Out of stock

3

CAP,HANDLEBAR

56131-29G00

2
Out of stock

4

BOLT, SET

56123-35F00

2
Out of stock

5

BALANCER SET,HANDLEBAR | Includes Item(s) 6 - 9 This part replaces 56200-41820.

56200-41823

2
Out of stock

6

SCREW This part replaces 02122-06403.

02122-0640A

2
Out of stock

7

WASHER

09160-06131

2
Out of stock

8

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

2
Out of stock

9

NUT This part replaces 56273-10G00.

56273-10G10

2
Out of stock

10

MIRROR ASSY,REA | MODEL K5 This part replaces 56500-41G00.

56500-41G03

1
Out of stock

10

MIRROR ASSY,REA | MODEL K6 This part replaces 56500-41G01.

56500-41G03

1
Out of stock

11

MIRROR ASSY,REA | MODEL K5 This part replaces 56600-41G00.

56600-41G03

1
Out of stock

11

MIRROR ASSY,REA | MODEL K6 This part replaces 56600-41G01.

56600-41G03

1
Out of stock

12

CUSHION, RH

94575-41G00

1
Out of stock

13

CUSHION, LH

94576-41G00

1
Out of stock

14

NUT,RR VIEW MIRROR This part replaces 56619-41G00.

56619-41G01

4
Out of stock

15

CABLE ASSY, CLUTCH

58200-41G00

1
Out of stock

16

GUIDE, CLUTCH CABLE

58621-41G00

1
Out of stock

17

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

18

CABLE ASSY, THROTTLE NO.1

58300-41G00

1
Out of stock

19

CABLE ASSY, THROTTLE NO.2

58300-41G10

1
Out of stock

20

SCREW This part replaces 02142-05103.

02142-0510B

1
Out of stock

21

GUIDE, THROTTLE CABLE NO.1

58621-29G00

1
Out of stock

22

GUIDE, THROTTLE CABLE NO.2

58622-41G00

1
Out of stock

23

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock
