Description

Price

1

GRIP, THROTTLE (BLACK) This part replaces 57110-29G00.

57110-29G02-291

$27.40

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 4 This part replaces 57300-29G00.

57300-29G01

$81.28

3

BOLT, PIVOT

57431-29G00

$8.52

4

NUT,LEVER PIVOT

57433-09F00

$3.26

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$35.21

6

SCREW

57465-17C00

$2.37

7

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$13.32

8

LEVER ASSY,CLUT | Includes Item(s) 9 - 17 This part replaces 57500-41G00.

57500-41G11

$85.50

9

LEVER, CLUTCH

57621-41G00

$32.96

10

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

$8.94

11

.NUT This part replaces 08319-21063.

08319-2106B

$2.31

12

.SWITCH,CLUTCH

57560-05A00

$11.12

13

SCREW This part replaces 02122-03208.

02122-0320A

$2.01

14

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

15

.NUT, CABLE ADJUSTER This part replaces 57641-33E20.

57641-33E21

$46.38

16

SPRING

57644-33E00

$8.54

17

SCREW, SPRING

57642-33E00

$4.53

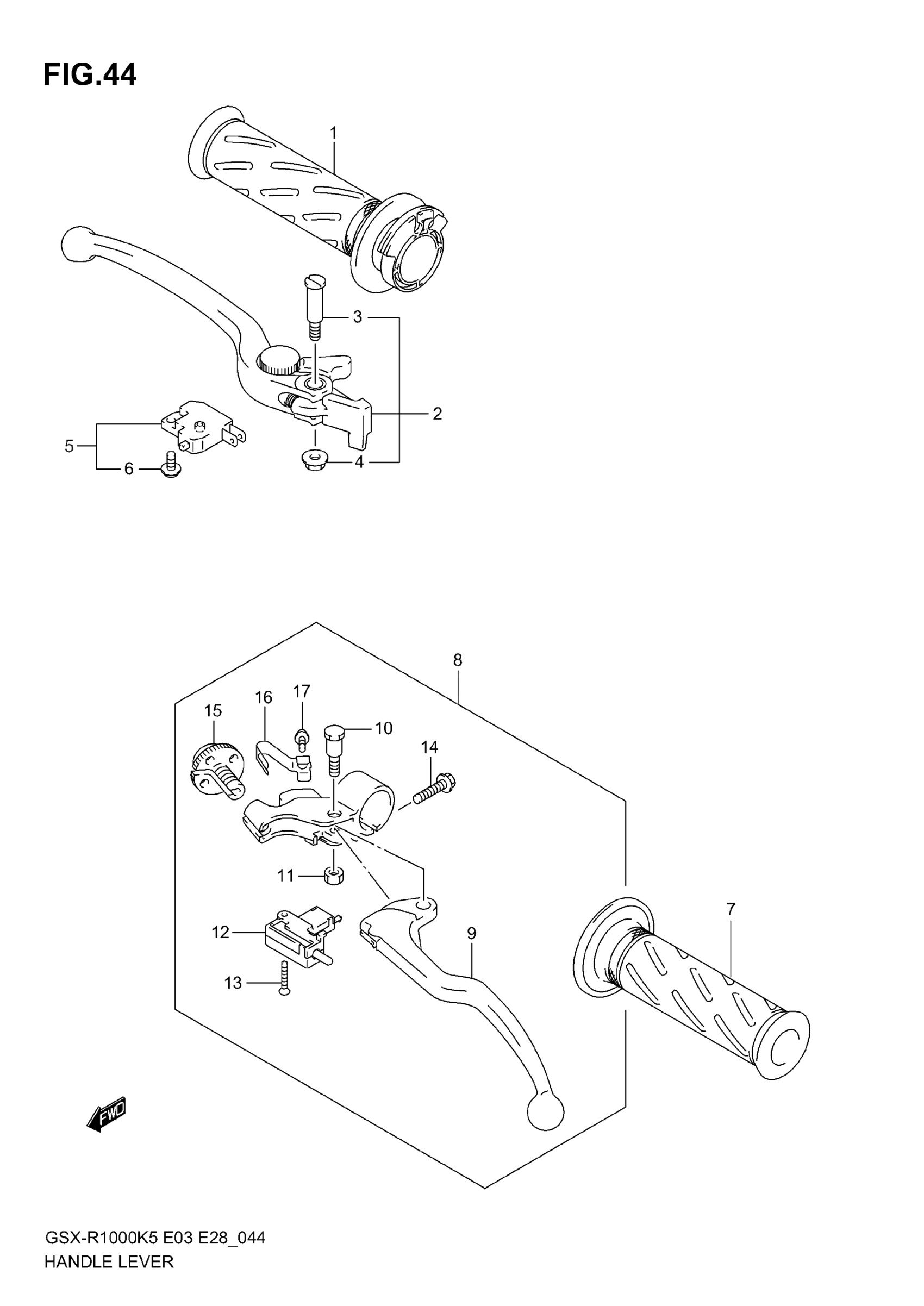

Suzuki GSX-R1000 (2006) HANDLE LEVER Diagram
