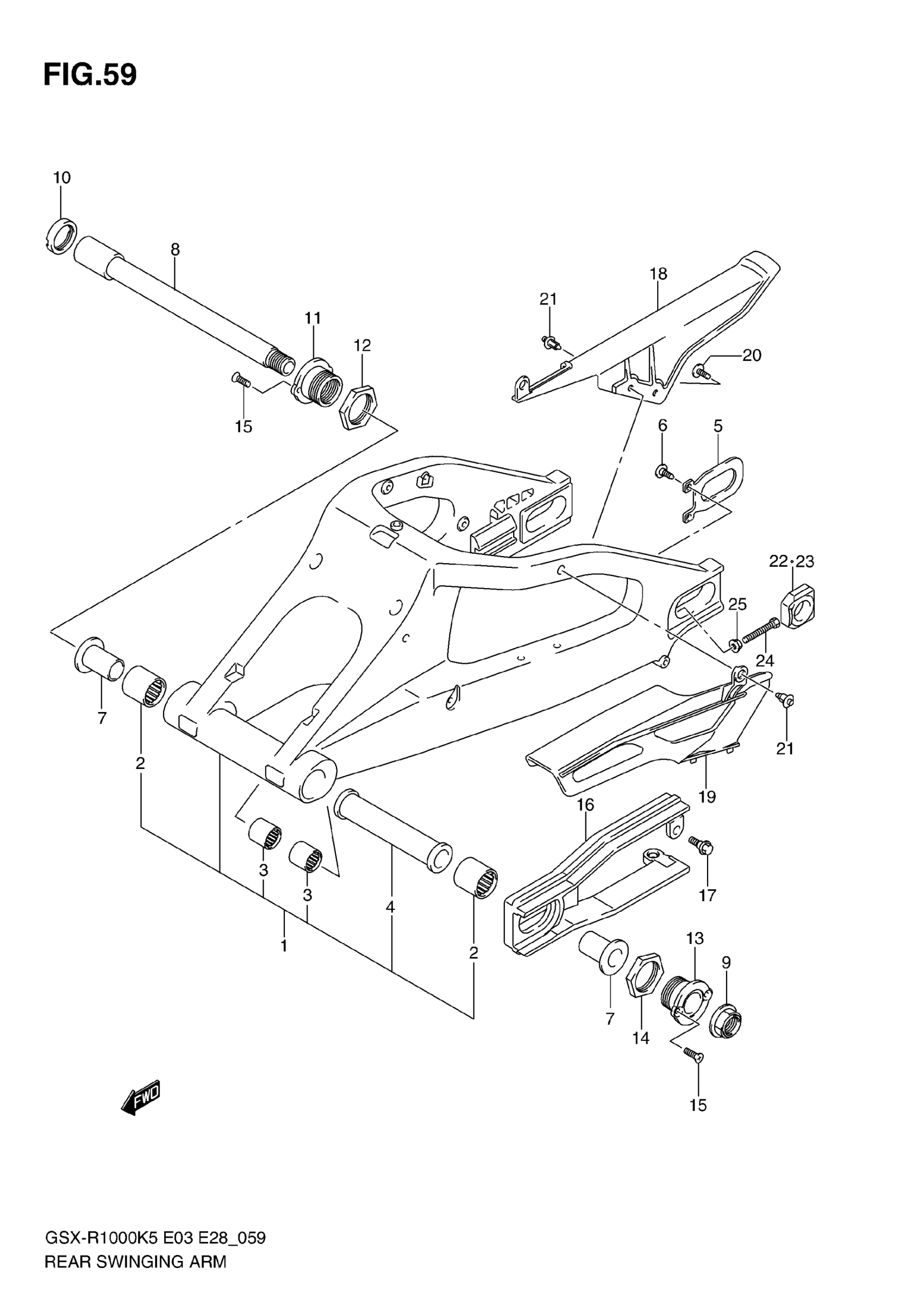

Suzuki GSX-R1000 (2006) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR (BLACK) | Includes Item(s) 2 - 4

61000-41G00-YAP

Unavailable

2

.BEARING (27X35X35) This part replaces 09263-27013.

09263-27015

$24.86

3

.BEARING This part replaces 09263-17039.

09263-17058

$14.85

4

SPACER, CENTER

61281-41G00

$62.83

5

PLATE,RR SWGARM BRKT

61124-41G00

$9.87

6

SCREW

09125-06073

$1.93

7

SPACER, BEARING

61251-41G00

$36.12

8

SHAFT, PIVOT

61211-41G00

$190.30

9

NUT

09159-20006

$34.67

10

NUT, PIVOT This part replaces 61214-42E00.

61214-42E10

$48.00

11

BOSS, RR SWGARM PIVOT, R

61212-41G00

$97.10

11

BOSS, RR SWGARM PIVOT, R | OPT

61210-41GR0

Unavailable

12

NUT, RR SWGARM PIVOT BOSS, R

61213-41G00

$29.01

13

BOSS, RR SWGARM PIVOT, L

61214-41G00

$82.18

13

BOSS, RR SWGARM PIVOT, L | OPT

61210-41GR0

Unavailable

14

NUT, RR SWGARM PIVOT BOSS, L

61215-41G00

$37.23

15

SCREW This part replaces 02122-05123.

02122-0512A

$1.88

16

BUFFER,CHAIN TO This part replaces 61273-41G00.

61273-41G01

$47.70

17

SCREW

09111-06072

$2.01

18

CASE,CHAIN N0.1 This part replaces 61311-41G00.

61311-41G01

$44.55

19

CASE, CHAIN NO.2

61321-41G00

$41.85

20

SCREW (6X16)

09139-06083

$2.24

21

CLIP

09409-08308-5ES

$1.97

22

ADJUSTER, CHAIN, R This part replaces 61445-40F20.

61445-40F00

$43.20

23

ADJUSTER, CHAIN, L This part replaces 61446-40F10.

61446-40F00

$43.20

24

BOLT (8X50)

09100-08287

$2.80

25

NUT This part replaces 08316-10083.

08316-1008B

$2.65
