2006 Suzuki GSX-R1000 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2006 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

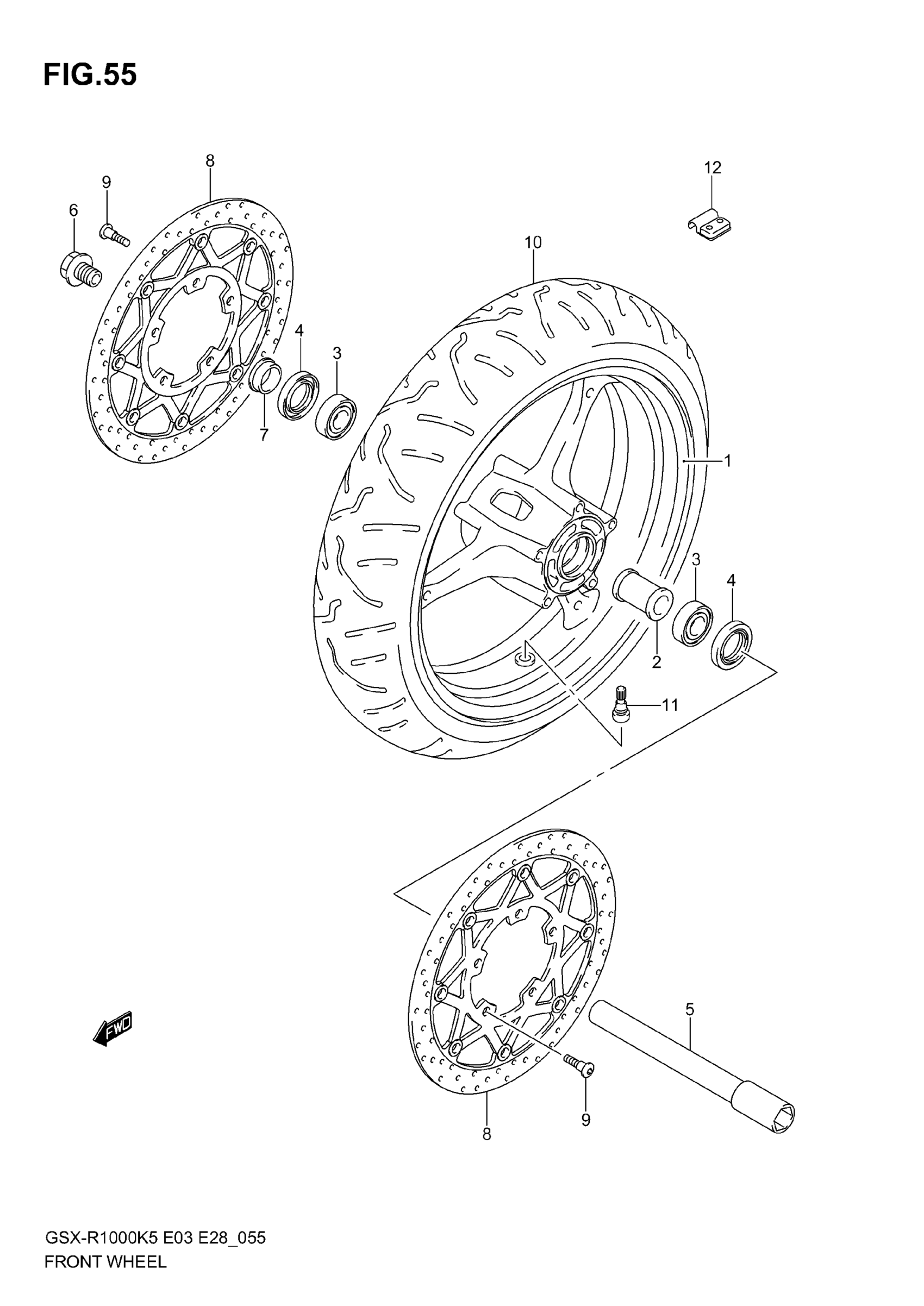

2006 Suzuki GSX-R1000 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT (17M/CXMT3.50) (BLACK) This part replaces 54111-41G00-019.

54111-41G10-019

1
Out of stock

2

SPACER,FR HUB BEARING

54731-35F10

1
Out of stock

3

BEARING (25X52X15)

09262-25061

2
Out of stock

4

.SEAL,OIL (32X52X7)

09285-32004

2
Out of stock

5

AXLE, FRONT

54711-41G00

1
Out of stock

6

BOLT, FRONT AXLE This part replaces 54712-41G00.

54712-41G10

1
Out of stock

7

SPACER, FRONT AXLE, RH This part replaces 54751-41G00.

54751-41G10

1
Out of stock

8

DISC, FRONT BRAKE

59210-41G00

2
Out of stock

9

BOLT

09106-08160

10
Out of stock

10

TIRE, FRONT, 120/70ZR17 M/C (58W) | BRIDGESTONE BT014 F RADIAL J

55110-41G10

1
Out of stock

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

12

BALANCER (10G)

43222-73H10

1
Out of stock

12

BALANCER (20G)

43224-73H10

1
Out of stock

12

BALANCER (30G)

43226-73H10

1
Out of stock
