2006 Suzuki GSX-R1000 Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 2006 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

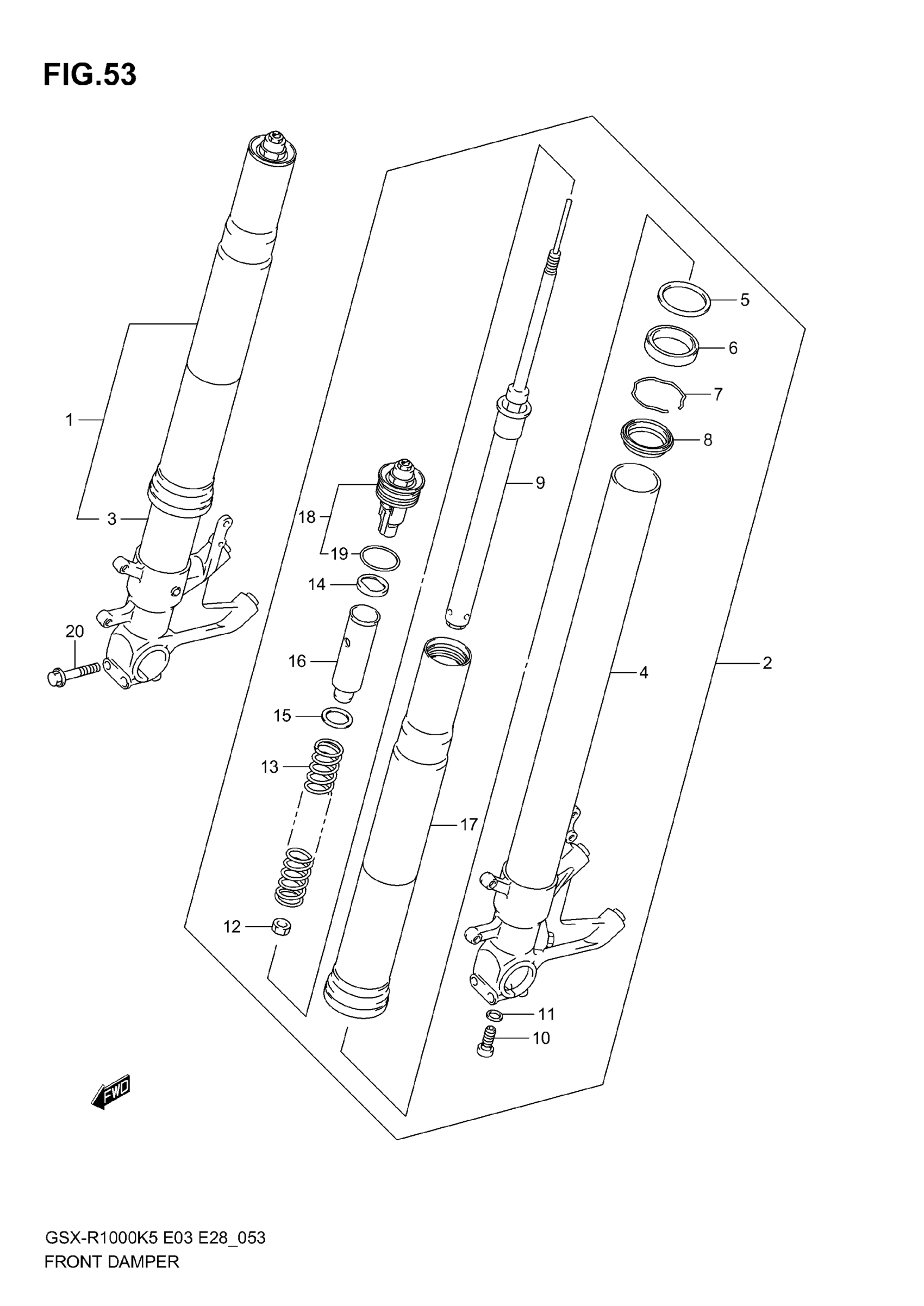

2006 Suzuki GSX-R1000 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-41G20

1
Out of stock

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 19

51104-41G20

1
Out of stock

3

1

$1,004.25

In stock

4

TUBE, INNER LH

51120-41G00

1
Out of stock

5

WASHER

51158-40F00

2

$12.53

In stock

6

SEAL, OIL

51153-41G00

2

$25.09

In stock

7

RING, STOPPER

51156-14200

2
Out of stock

8

SEAL, DUST

51173-41G00

2

$26.50

In stock

9

CYLINDER

51146-41G00

2
Out of stock

10

BOLT

51147-16G00

2

$20.77

In stock

11

GASKET

51148-41310

2
Out of stock

12

NUT

51129-24F00

2
Out of stock

13

SPRING, FRONT

51171-40F30

2
Out of stock

14

GUIDE, SPRING

51158-40F30

2
Out of stock

15

WASHER

51158-41G00

2

$6.75

In stock

16

SPACER, SPRING

51176-40F30

2

$29.78

In stock

17

TUBE, OUTER

51130-41G00

2
Out of stock

18

CAP, FRONT FORK

51351-41G00

2
Out of stock

19

..O RING

62278-14100

2
Out of stock

20

BOLT

51328-31FA0

4

$7.03

In stock
