1993 Suzuki GSF400 Radiator Hose Diagram

← All diagrams

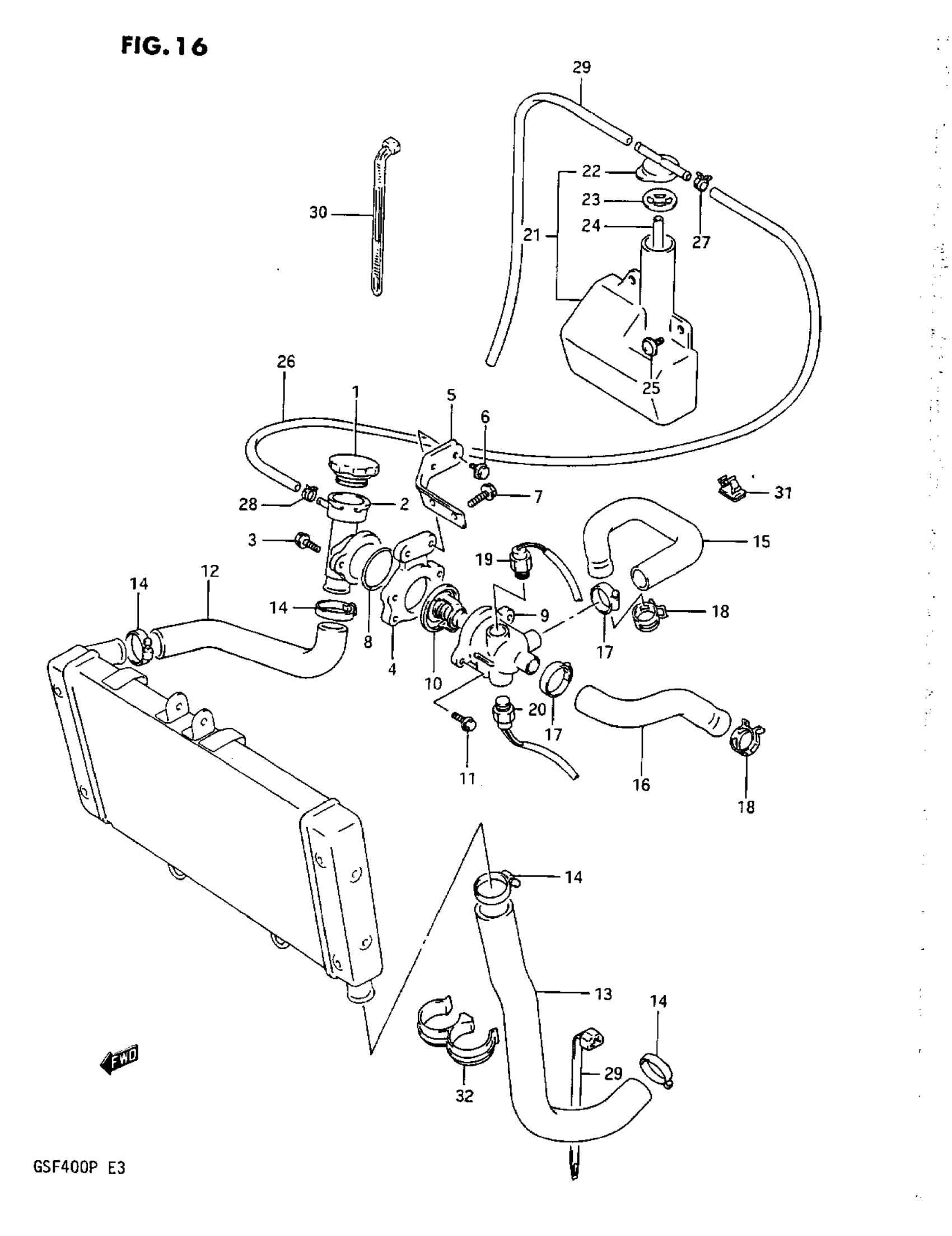

Find the part on the Radiator Hose diagram for your 1993 Suzuki GSF400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSF400 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, RADIATOR 1.1 This part replaces 17730-14501.

17730-19D11

1
Out of stock

2

CONDUCTION, RADIATOR

17791-06C00

1
Out of stock

3

2

$2.32

In stock

4

BRACKET, CONDUCTION

17792-12C00

1
Out of stock

5

BRACKET, CONDUCTION BRACKET

17793-10D00

1
Out of stock

6

BOLT This part replaces 01517-06108.

01550-06107

2
Out of stock

7

2

$2.43

In stock

8

1

$4.03

In stock

9

CONNECTOR, THERMOSTAT INLET

17662-10D00

1
Out of stock

10

1

$37.23

In stock

11

2

$2.43

In stock

12

HOSE, RADIATOR INLET

17851-10D00

1
Out of stock

13

HOSE, RADIATOR OUTLET NO.1

17852-10D00

1
Out of stock

14

4

$10.72

In stock

15

HOSE, RADIATOR JOINT NO.1

17854-10D01

1
Out of stock

16

HOSE, RADIATOR JOINT NO.2

17855-10D00

1
Out of stock

17

2

$6.67

In stock

18

CLIP

09401-21402

2
Out of stock

19

1

$132.63

In stock

20

SWITCH, RADIATOR FAN

17680-06C01

1
Out of stock

21

TAW ASSY, RESERVOIR

17910-10D00

1
Out of stock

22

CAP, WATER RESERVOIR TANK

17932-82001

1
Out of stock

23

RUBBER, CAP

17933-82002

1
Out of stock

24

1

$14.13

In stock

25

SCREW (6X16)

09136-06017

2

$2.77

In stock

26

HOSE, RESERVOIR TANK INLET

17981-10D00

1
Out of stock

27

CLIP

09401-10407

1
Out of stock

28

CLIP This part replaces 09401-08407.

09401-08411

1
Out of stock

30

CLAMP (L:250)

09407-25401

1
Out of stock

31

CLAMP

09408-00143

1
Out of stock

32

CLAMP

09408-00144

1
Out of stock
