1993 Suzuki GSF400 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1993 Suzuki GSF400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

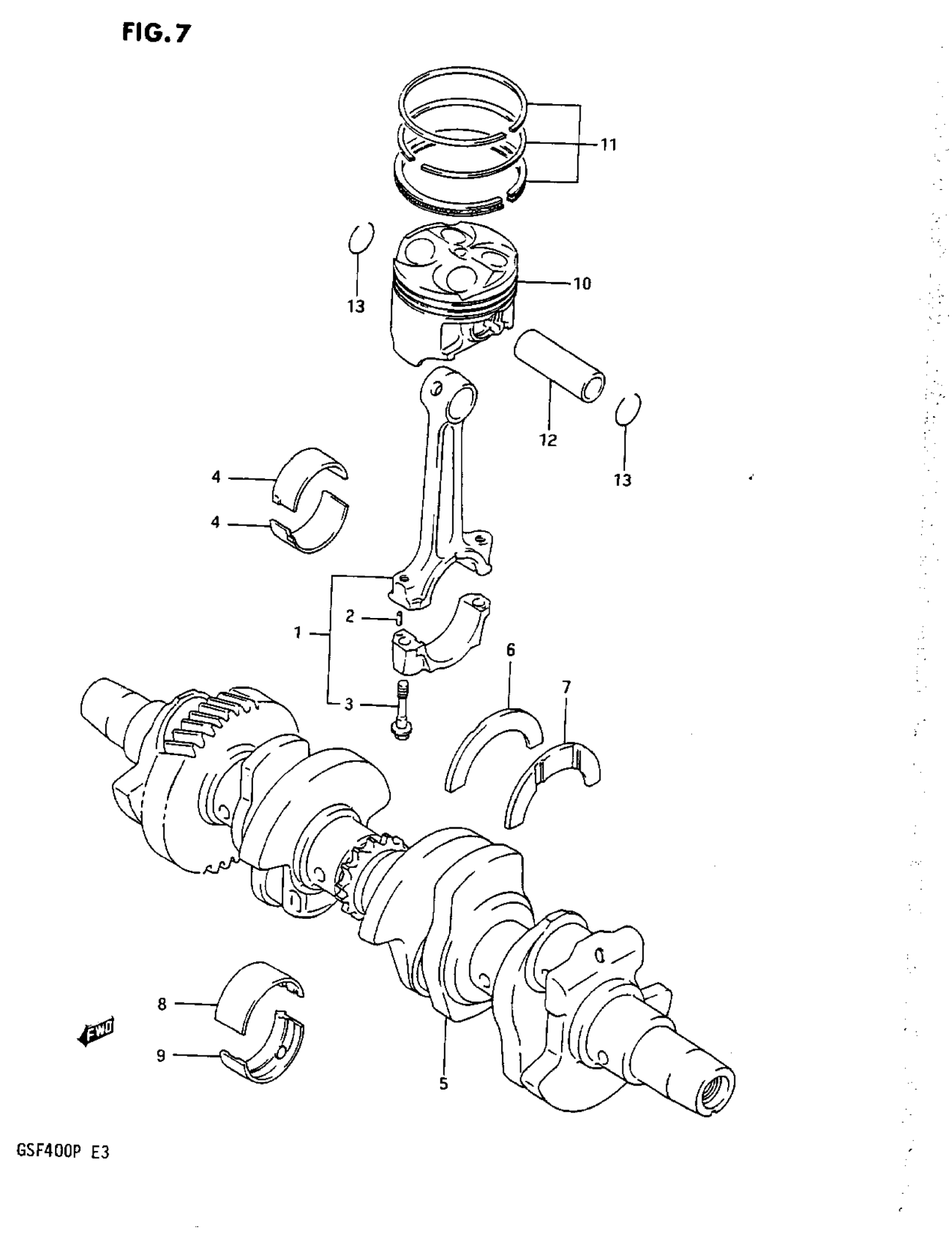

1993 Suzuki GSF400 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROD ASSY, CONNECTING

12160-32C03

4
Out of stock

2

PIN

04221-03059

8
Out of stock

3

BOLT, CONNECTING ROD

12163-32C00

8
Out of stock

4

METAL,CRANK PIN This part replaces 12164-04A01-0A0.

12164-04A01-0A1

8
Out of stock

4

BEARING,CRANK P This part replaces 12164-04A01-0B0.

12164-04A01-0B1

8
Out of stock

4

BEARING,CRANK P This part replaces 12164-04A01-0C0.

12164-04A01-0C1

8
Out of stock

4

BEARING, CRANK This part replaces 12164-04A01-0D0.

12164-04A01-0D1

8
Out of stock

5

CRANKSHAFT SET

12000-32810

1
Out of stock

6

BEARING, THRUST RH (GREEN)

12228-43414

1
Out of stock

7

BEARING, THRUST LH (RED)

12228-43411

1
Out of stock

7

BEARING, THRUST LH (BLACK)

12228-43412

1
Out of stock

7

BEARING, THRUST LH (BLUE)

12228-43413

1
Out of stock

7

BEARING, THRUST LH (GREEN)

12228-43414

1
Out of stock

7

BEARING, THRUST LH (YELLOW)

12228-43415

1
Out of stock

7

BEARING, THRUST LH (WHITE)

12228-43416

1
Out of stock

8

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-30B10-0A0

6
Out of stock

8

BEARING, CRANKSHAFT (BLACK)

12229-30B10-0B0

6
Out of stock

8

BEARING, CRANKSHAFT (BROWN)

12229-30B10-0C0

6
Out of stock

8

BEARING, CRANKSHAFT (YELLOW)

12229-30B10-0D0

6
Out of stock

9

BEARING, CRANKSHAFT (GREEN) | LOWER, ~E.NO.K707-121475 This part replaces 12229-30B00-0A0.

12229-33C00-0A0

6
Out of stock

9

BEARING, CRANKSHAFT (BLACK) | ~E.NO.K707-121475 This part replaces 12229-30B00-0B0.

12229-33C00-0B0

6
Out of stock

9

BEARING, CRANKSHAFT (BROWN) | ~E.NO.K707-121475 This part replaces 12229-30B00-0C0.

12229-33C00-0C0

6
Out of stock

9

BEARING, CRANKSHAFT (YELLOW) | ~E.NO.K707-121475 This part replaces 12229-30B00-0D0.

12229-33C00-0D0

6
Out of stock

9

BEARING, CRANKSHAFT (GREEN) | LOWER, E.NO.K707-121475~

12229-33C00-0A0

6
Out of stock

9

BEARING, CRANKSHAFT (BLACK) | E.NO.K707-121475~

12229-33C00-0B0

6
Out of stock

9

BEARING, CRANKSHAFT (BROWN) | E.NO.K707-121475~

12229-33C00-0C0

6
Out of stock

9

BEARING, CRANKSHAFT (YELLOW) | E.NO.K707-121475~

12229-33C00-0D0

6
Out of stock

10

PISTON

12111-32C04-0F0

4
Out of stock

10

PISTON SET | OPT This part replaces 12111-32C04-040.

12100-32C00-040

4
Out of stock

10

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-32C04-100.

12100-32C00-100

4
Out of stock

11

RING SET, PISTON

12140-32C10

4
Out of stock

11

RING SET, PISTON (OS:0.4) | OPT

12140-32C10-040

4
Out of stock

11

RING SET, PISTON (OS:1.0) | OPT

12140-32C10-100

4
Out of stock

12

PIN, PISTON

12151-10D00

4
Out of stock

13

CIRCLIP

09381-16001

8
Out of stock
