1993 Suzuki GSF400 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1993 Suzuki GSF400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

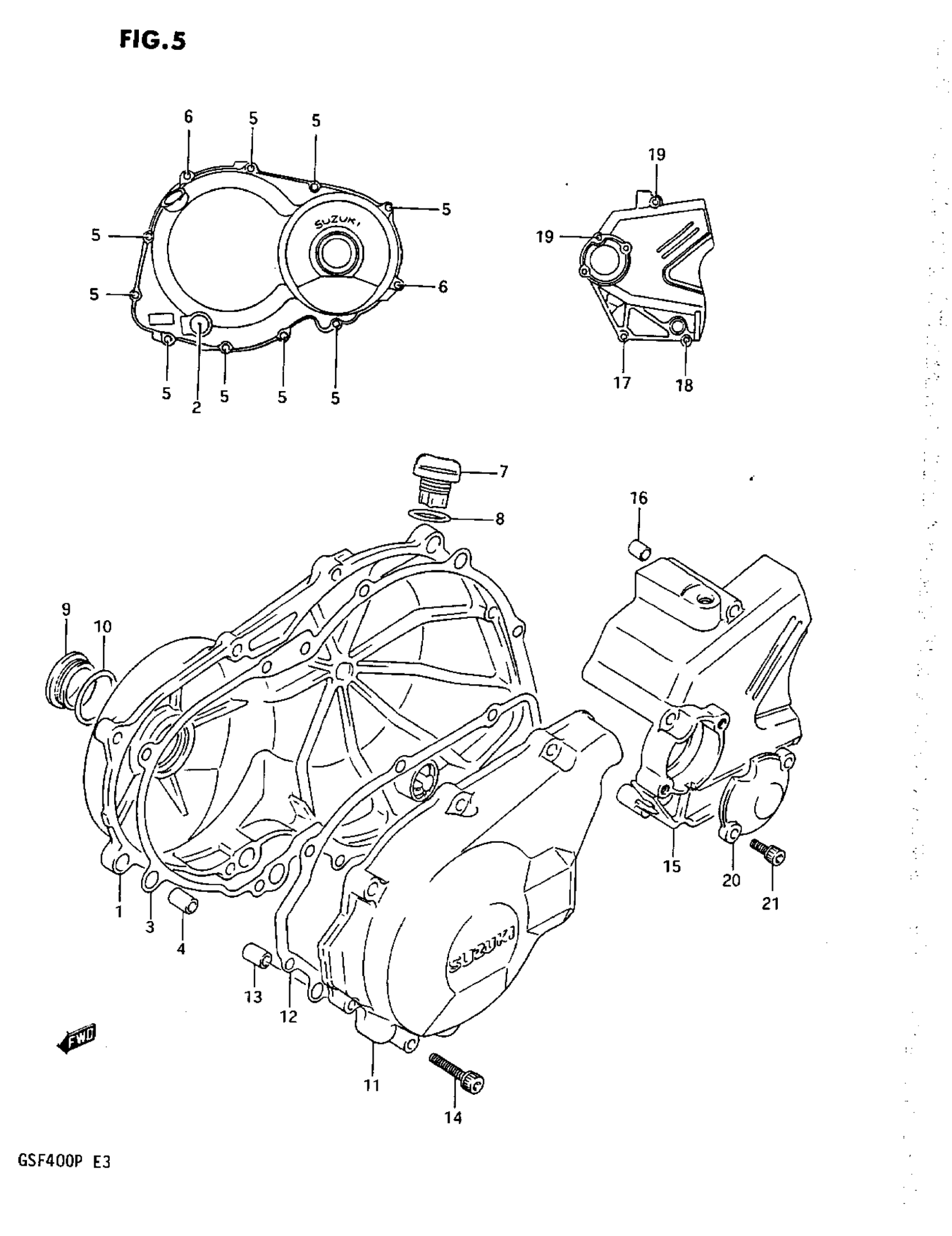

1993 Suzuki GSF400 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,CLUTCH This part replaces 11340-10D00.

11340-10D01

1
Out of stock

2

.LENS, OIL LEVEL CHECK

11971-45010

1
Out of stock

3

GASKET, CLUTCH COVER (NA) | MODEL M This part replaces 11482-32C01.

11482-32C11

1
Out of stock

3

GASKET, CLUTCH COVER (NA) | MODEL N/P

11482-32C11

1
Out of stock

4

PIN

04211-09189

2

$1.77

In stock

5

BOLT This part replaces 07110-06255.

07130-0625B

9
Out of stock

6

BOLT This part replaces 07110-06355.

07130-0635B

2
Out of stock

7

PLUG, ENGINE OIL FILTER This part replaces 11971-20A00.

11971-12C51

1
Out of stock

8

O-RING

09280-17003

1
Out of stock

9

PLUG, SHAFT HOLE This part replaces 09259-36007.

09259-36016-20H

1
Out of stock

10

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

11

COVER, STARTER GEAR

11351-10D01

1
Out of stock

12

GASKET, STARTER GEAR COVER (NA) | MODEL M This part replaces 11483-30B01.

11483-30B10

1
Out of stock

12

GASKET, STARTER GEAR COVER (NA) | MODEL N/P

11483-30B10

1
Out of stock

13

PIN (11X20) This part replaces 09206-11005.

09206-11017

1
Out of stock

14

BOLT This part replaces 07110-06255.

07130-0625B

8
Out of stock

15

COVER, SPROCKET

11361-10D00

1
Out of stock

16

PIN

04211-09129

1
Out of stock

17

BOLT This part replaces 07110-06355.

07130-0635B

1
Out of stock

18

BOLT This part replaces 07110-06605.

07130-0660B

1
Out of stock

19

BOLT This part replaces 07110-06805.

07130-0680B

2
Out of stock

20

CAP, CLUTCH RELEASE ADJUST

11387-10D00

1
Out of stock

21

BOLT (6X12) This part replaces 09106-06055.

09106-06075

2
Out of stock
