1993 Suzuki GSF400 Cylinder Head Diagram

← All diagrams

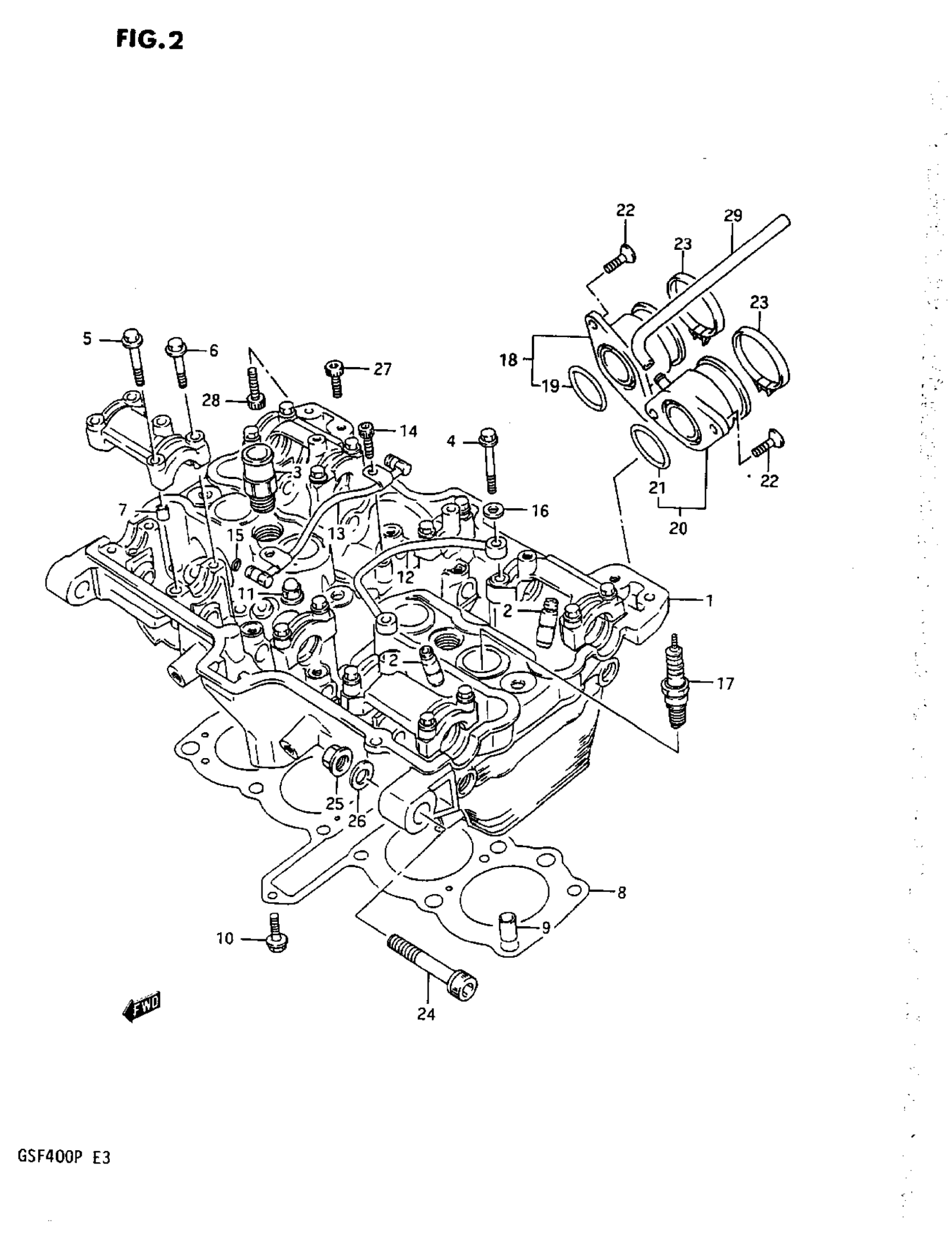

Find the part on the Cylinder Head diagram for your 1993 Suzuki GSF400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSF400 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | MODEL M This part replaces 11100-10D00.

11100-10D01

1
Out of stock

1

HEAD ASSY, CYLINDER | MODEL N/P

11100-10D01

1
Out of stock

2

GUIDE,VALVE (OS:0.3) This part replaces 11115-32C70.

11115-32C71

16
Out of stock

3

UNION, WATER HOSE | MODEL M/N This part replaces 11181-32C03.

11181-32C04

2
Out of stock

3

UNION, WATER HOSE | MODEL P

11181-32C04

2
Out of stock

4

BOLT (6X45) This part replaces 09103-06013.

09103-06165

2
Out of stock

5

BOLT (6X39)

09103-06026

16
Out of stock

6

BOLT (6X35)

09103-06108

2
Out of stock

7

PIN

09206-08001

12
Out of stock

8

GASKET, CYL HEA This part replaces 11141-32C01.

11141-32C10

1
Out of stock

9

PIN

04211-11189

4
Out of stock

10

BOLT This part replaces 01517-06254.

01550-0625A

1
Out of stock

11

NUT This part replaces 08313-21087.

08313-20087

12
Out of stock

12

PIPE, OIL CYLINDER HEAD LH

12961-30B01

1
Out of stock

13

PIPE, OIL CYLINDER HEAD RH

12961-30B10

1
Out of stock

14

BOLT This part replaces 07110-06126.

07130-0612A

2
Out of stock

15

O-RING

09280-05004

2

$2.50

In stock

16

.WASHER This part replaces 08322-21066.

08322-0106B

2
Out of stock

17

4

$10.51

In stock

17

4

$14.37

In stock

17

4

$11.47

In stock

17

SPARK PLUG (DENSO,U27ESR-N) | MODEL P This part replaces 09482-00411.

09482-00459

4
Out of stock

17

4

$11.47

In stock

17

4

$13.63

In stock

17

SPARK PLUG (DENSO,U27ESR-N) | OPT, MODEL M/N This part replaces 09482-00411.

09482-00459

4
Out of stock

17

SPARK PLUG (ND, U22ETR) | OPT, MODEL M/N

09482-00415

4
Out of stock

17

SPARK PLUG (NGK, CR10EK) | OPT, MODEL P

09482-00462

4
Out of stock

17

SPARK PLUG (ND, U31ETR) | OPT, MODEL P

09482-00463

4
Out of stock

18

PIPE, INTAKE | ML, MR, RH

13101-10D00

3
Out of stock

19

O RING This part replaces 09280-36002.

09280-36004

3
Out of stock

20

PIPE, INTAKE | LH

13102-10D00

1
Out of stock

21

O RING This part replaces 09280-36002.

09280-36004

1
Out of stock

22

SCREW (6X16)

09126-06014

8
Out of stock

23

CLAMP

09402-48208

4
Out of stock

24

BOLT

07110-10707

2
Out of stock

25

NUT, REAR SWGARM BRACKET This part replaces 09159-10044.

09159-10115

2
Out of stock

26

WASHER

09160-10005

2
Out of stock

27

BOLT This part replaces 07130-08255.

07130-0825B

2
Out of stock

28

BOLT, STEERING DAMPER | MODEL M/N This part replaces 07110-08305.

07130-0830A

2
Out of stock

28

BOLT | MODEL P This part replaces 07130-08255.

07130-0825B

2
Out of stock

29

HOSE,5X10X600 | ~E.NO.120782 L:300-220 This part replaces 09352-50823-300.

44421-13ER0

1
Out of stock

29

HOSE,5X10X600 | E.NO.120783~ L:300-220 This part replaces 09354-50103-300.

44421-13ER0

1
Out of stock
