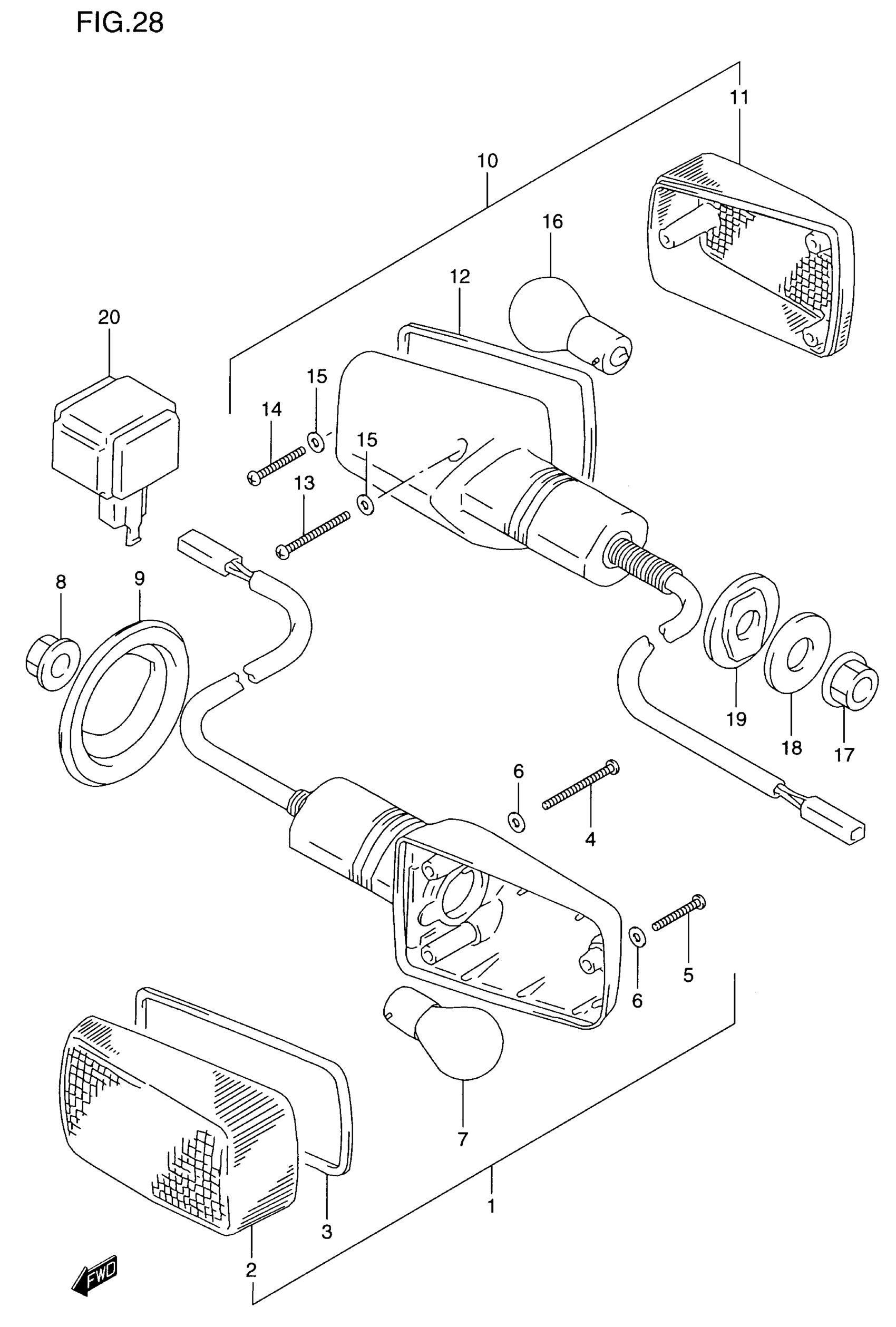

Suzuki GSF1200S (2000) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL | Includes Item(s) 2 - 7

35601-29EC0

$123.67

2

LENS

35612-17C20

$10.23

3

GASKET

35613-27A00

$4.46

4

TAPPING SCREW

35623-27A00

$1.87

5

TAPPING SCREW

35725-40511

$1.86

6

GASKET

35627-27A02

$1.78

7

BULB (12V,21W)

09471-12045

$3.06

8

NUT This part replaces 08316-10103.

08316-1010B

$2.74

9

GROMET, FRONT TURNSIGNAL

35674-27A01

$9.43

10

LAMP ASSY, REAR TURNSIGNAL | Includes Item(s) 11 - 16

35603-21E30

$146.32

11

LENS

35652-17C20

$10.12

12

GASKET

35613-27A00

$4.46

13

TAPPING SCREW

35623-27A00

$1.87

14

TAPPING SCREW

35725-40511

$1.86

15

GASKET

35627-27A02

$1.78

16

BULB (12V,21W)

09471-12045

$3.06

17

NUT This part replaces 08310-00103.

08310-0010A

$1.94

18

WASHER (10.5X30.2X3)

09160-10501

$2.40

19

SPACER, REAR TURNSIGNAL

35695-17C00

$3.86

20

RELAY ASSY, TURNSIGNAL LAMP | MODEL V

38610-45D01

$88.43

20

RELAY ASSY | MODEL W/X/Y This part replaces 38610-26E00.

38610-26E01

$66.55
