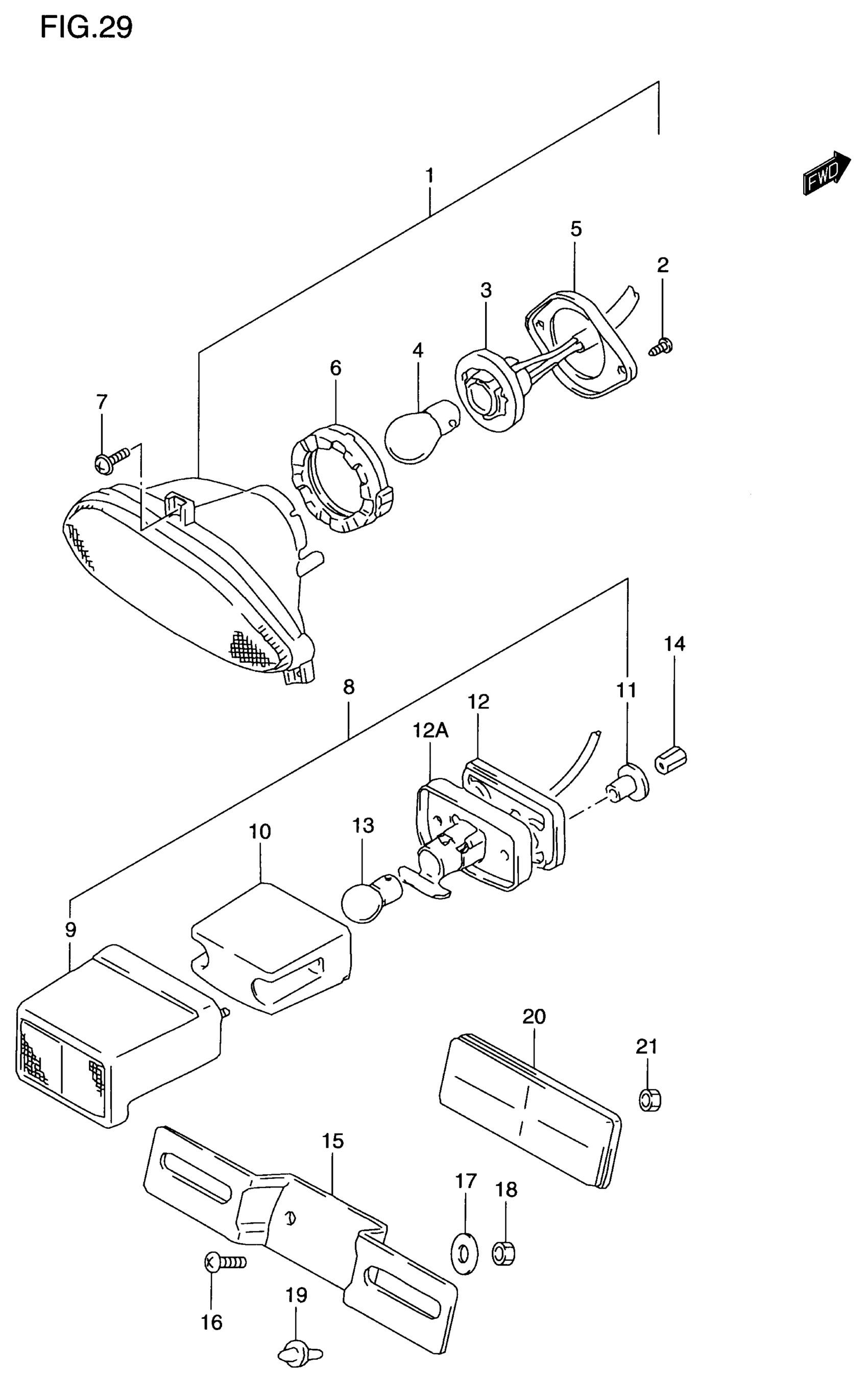

Find the part on the Rear Combination Lamp diagram for your 2000 Suzuki GSF1200S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki GSF1200S Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 6

35710-26E30

1
Out of stock

2

SCREW This part replaces 03211-04123.

03211-0412A

2
Out of stock

3

SOCKET & CORD This part replaces 35718-26E00.

35718-08F00

1
Out of stock

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

5

PLATE

35736-48B21

1
Out of stock

6

CUSHION

35765-48B21

1
Out of stock

7

3

$3.18

In stock

8

LAMP ASSY, LICENSE PLATE | Includes Item(s) 9 - 13

35910-26E30

1
Out of stock

9

COVER, LICENSE

35917-17C00

1
Out of stock

10

LENS

35912-38A30

1
Out of stock

11

SPACER

35766-24B30

2
Out of stock

12

CUSHION

35761-24B31

1
Out of stock

12A

GASKET

35913-38A30

1
Out of stock

13

1

$2.55

In stock

14

NUT

09140-04006

2
Out of stock

15

BRACKET,LICENSE PLATE

35927-26E30

1
Out of stock

16

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

17

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

18

NUT This part replaces 08310-00063.

08310-0006A

2
Out of stock

19

CUSHION

09321-06032

1
Out of stock

20

REFLEX REFLECTOR ASSY, RR SIDE

35970-24D60

2
Out of stock

21

NUT This part replaces 08310-00053.

08310-0005A

2
Out of stock
