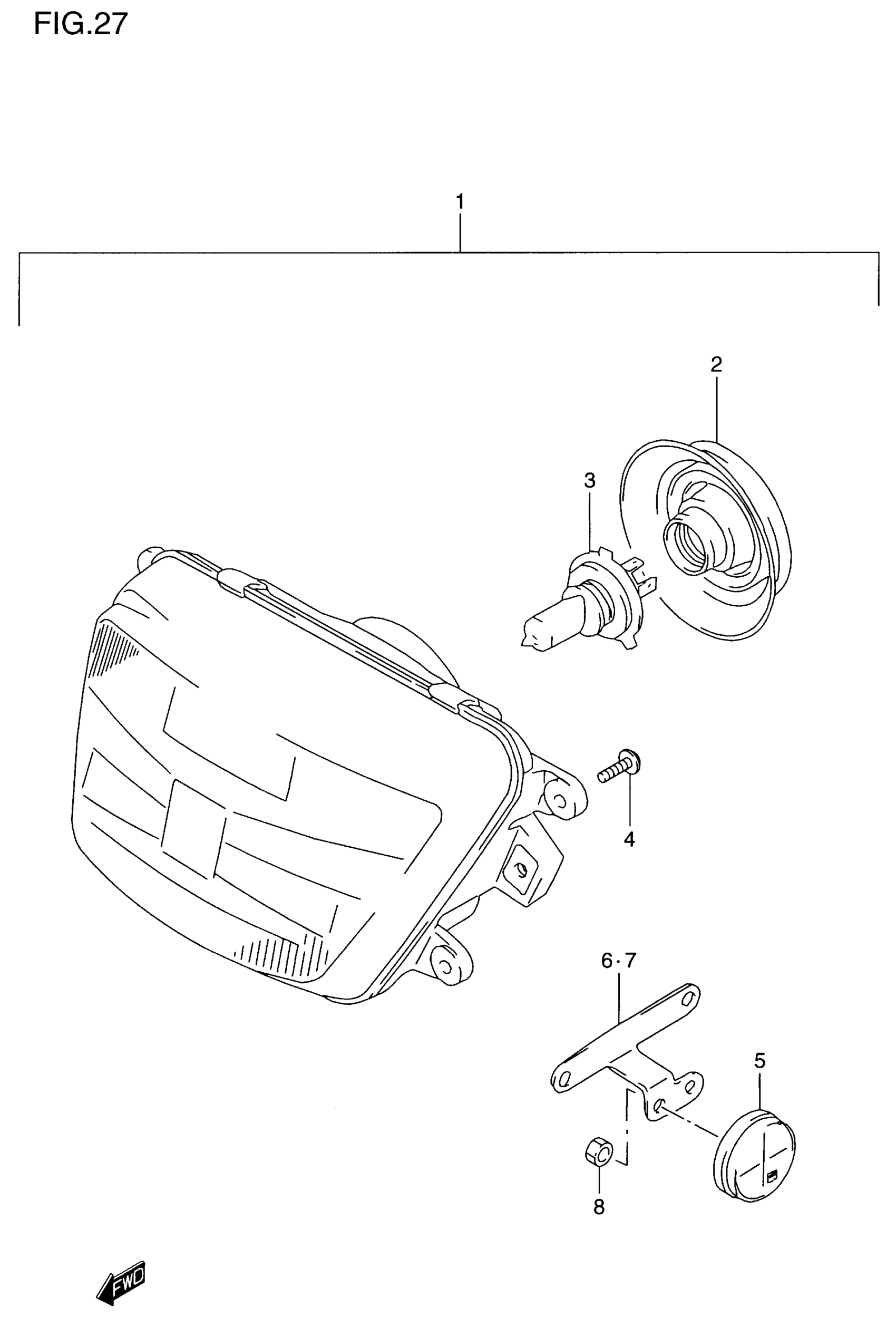

Suzuki GSF1200S (2000) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 3

35100-19D11

Unavailable

2

COVER, SOCKET

35173-26B20

Unavailable

3

BULB (12V,60/55W,H4)

09471-12060

$22.69

4

SCREW This part replaces 02142-05163.

02142-0516A

$1.43

5

REFLEX REFLECTOR ASSY, FR SIDE

35950-14A00

$15.95

6

BRACKET, FR SIDE RH

35956-40C01

Unavailable

7

BRACKET, FR SIDE LH

35957-40C01

Unavailable

8

NUT This part replaces 08310-00053.

08310-0005A

$1.83
