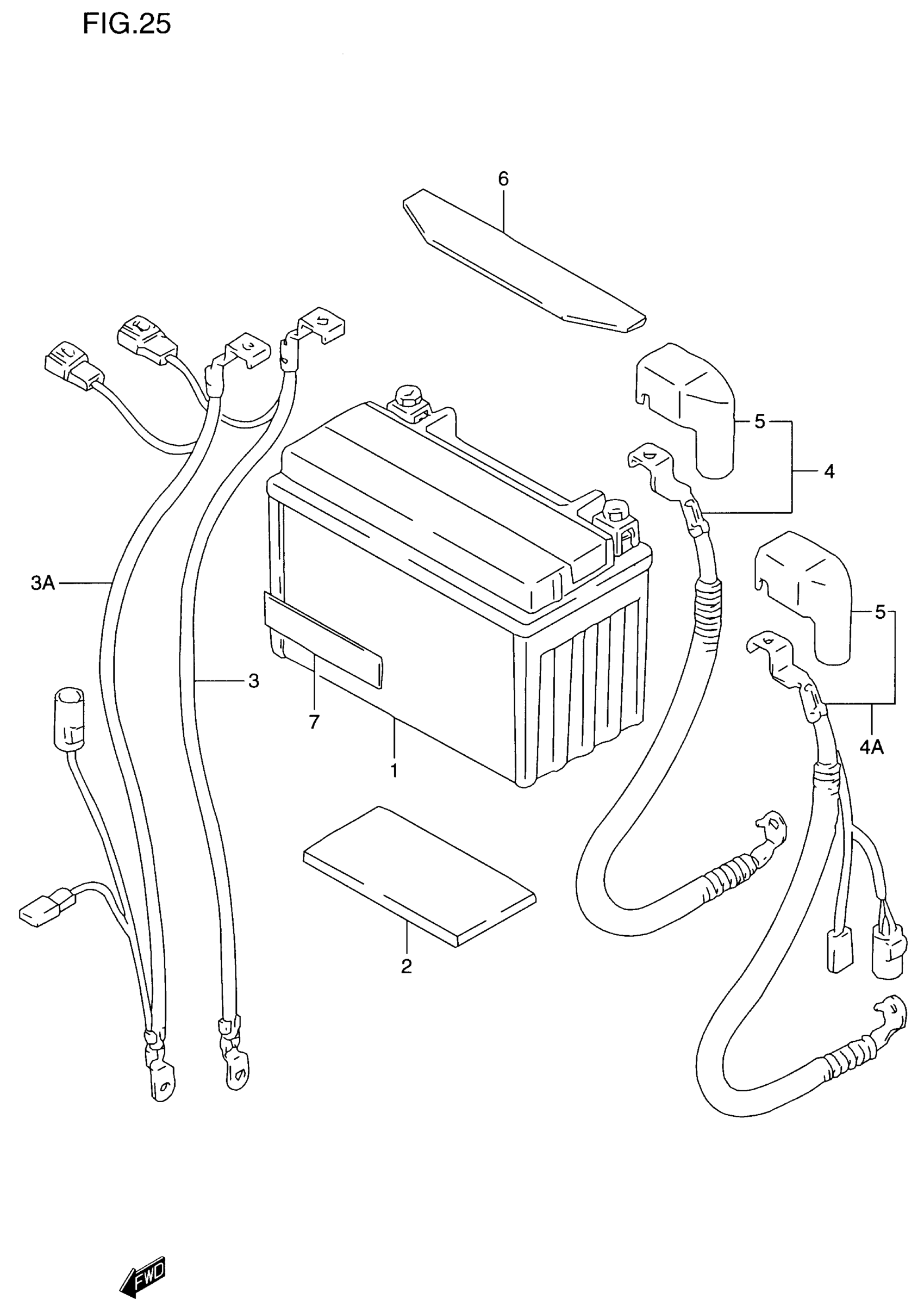

Suzuki GSF1200S (2000) BATTERY Diagram

#

Description

Price

1

BATTERY (FTX12-BS,12V,10AH) | MODEL V YTX12-BS,12V,10AH This part replaces 33610-17E00.

33610-48E20

$124.92

1

BATTERY (FTX12-BS,12V,10AH) | MODEL W/X/Y YTX12-BS,12V,10AH This part replaces 33610-17E10.

33610-48E20

$124.92

2

PROTECTOR (170X95X3) | GSF1200SV/SW/SX/SY CUT AS REQUIRED PROFILE (115X50)

33651-37000

$4.09

2

PROTECTOR (170X95X3) | GSF1200SAV CUT AS REQUIRED PROFILE (40X20)(115X50)(85X40) (90X20)(50X30)

33651-37000

$4.09

3

WIRE, BATTERY (-) | GSF1200SV/SW/SX/SY

33860-46E00

Unavailable

3A

WIRE, BATTERY (-) | GSF1200SAV

33860-27EA0

Unavailable

4

WIRE, BATTERY (+) LEAD | GSF1200SV/SW/SX/SY

33820-26E00

Unavailable

4A

WIRE, BATTERY (+) LEAD | GSF1200SAV; Includes Item(s) 5

33820-27EA0

Unavailable

5

CAP, BATTERY (+) TERMINAL

33624-43500

$6.22

6

PROTECTOR, BATTERY (30X172X1.5) (30X172X1.5) | GSF1200SV/SW/SX/SY

33651-26400

$5.10
