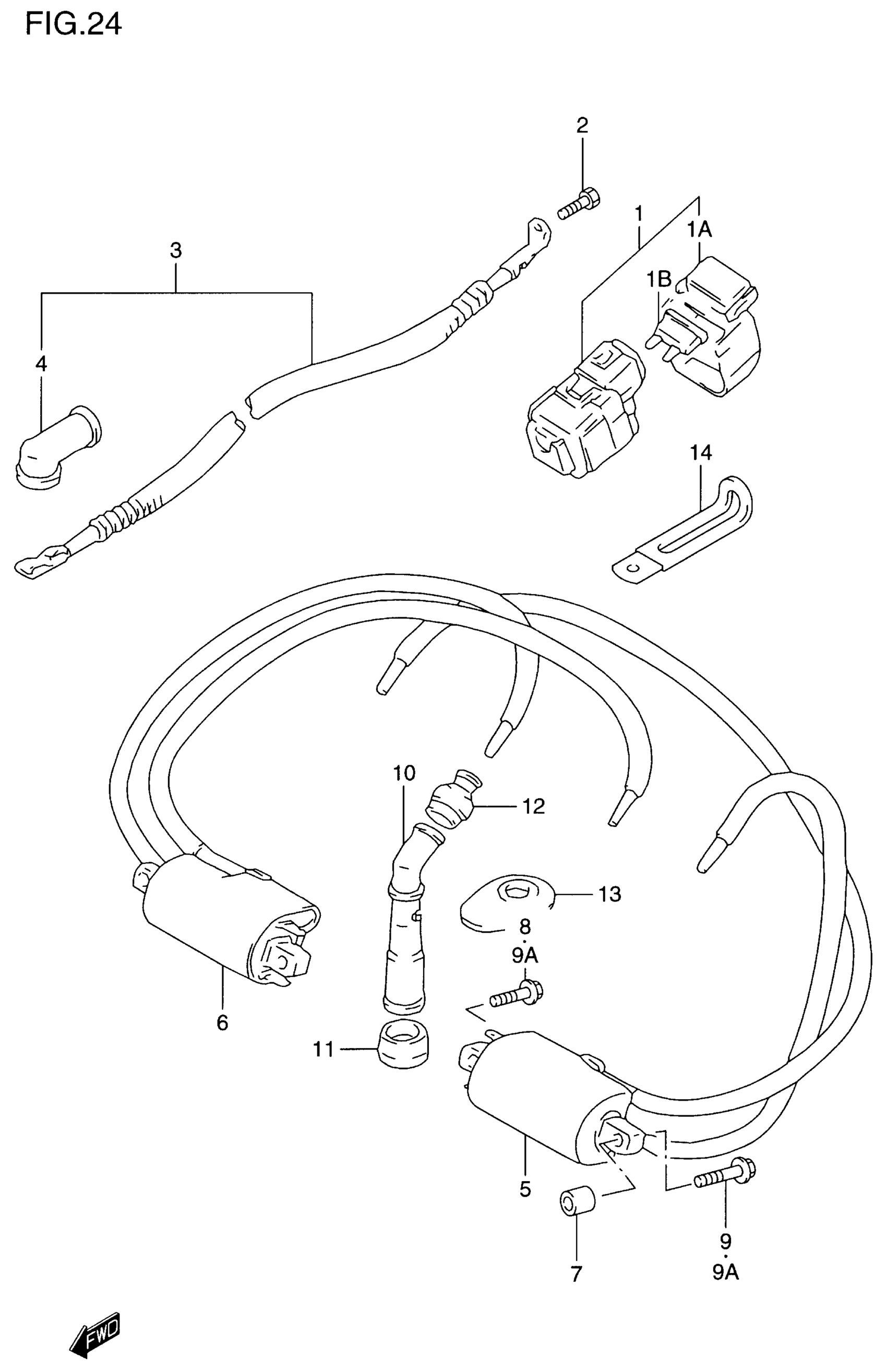

Suzuki GSF1200S (2000) ELECTRICAL (GSF1200SV/SW/SX/SY) Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 1A - 1B

31800-26E00

$93.08

1A

COVER

31861-26E00

$4.09

1B

FUSE (30A)

09481-30101

$2.35

2

SCREW (6X8)

09128-06013

$1.28

3

WIRE, STARTER MOTOR LEAD | Includes Item(s) 4

33810-27E00

Unavailable

4

CAP, STARTER MOTOR LEAD

31861-48B10

$7.40

5

COIL ASSY, IGNITION

33410-26E01

$186.88

6

COIL ASSY, IGNITION

33420-26E01

Unavailable

7

SPACER (6X12X10)

09180-06095

$4.28

8

BOLT | MODEL V This part replaces 01550-06203.

01550-0620A

$2.01

9

BOLT | MODEL V This part replaces 01550-06253.

01550-0625A

$2.01

9A

BOLT | MODEL W/X/Y This part replaces 01550-06253.

01550-0625A

$2.01

10

CAP, SPARK PLUG

33510-48B10

$30.40

11

SEAL, SPARK PLUG CAP

33541-23E01

$6.06

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

13

COVER, SPARK PLUG CAP

33543-48B00

$7.14

14

CLAMP | MODEL V This part replaces 09404-06431.

09404-06039

$1.79

14

CLAMP | MODEL W/X/Y This part replaces 09404-06432.

09404-06039

$1.79
