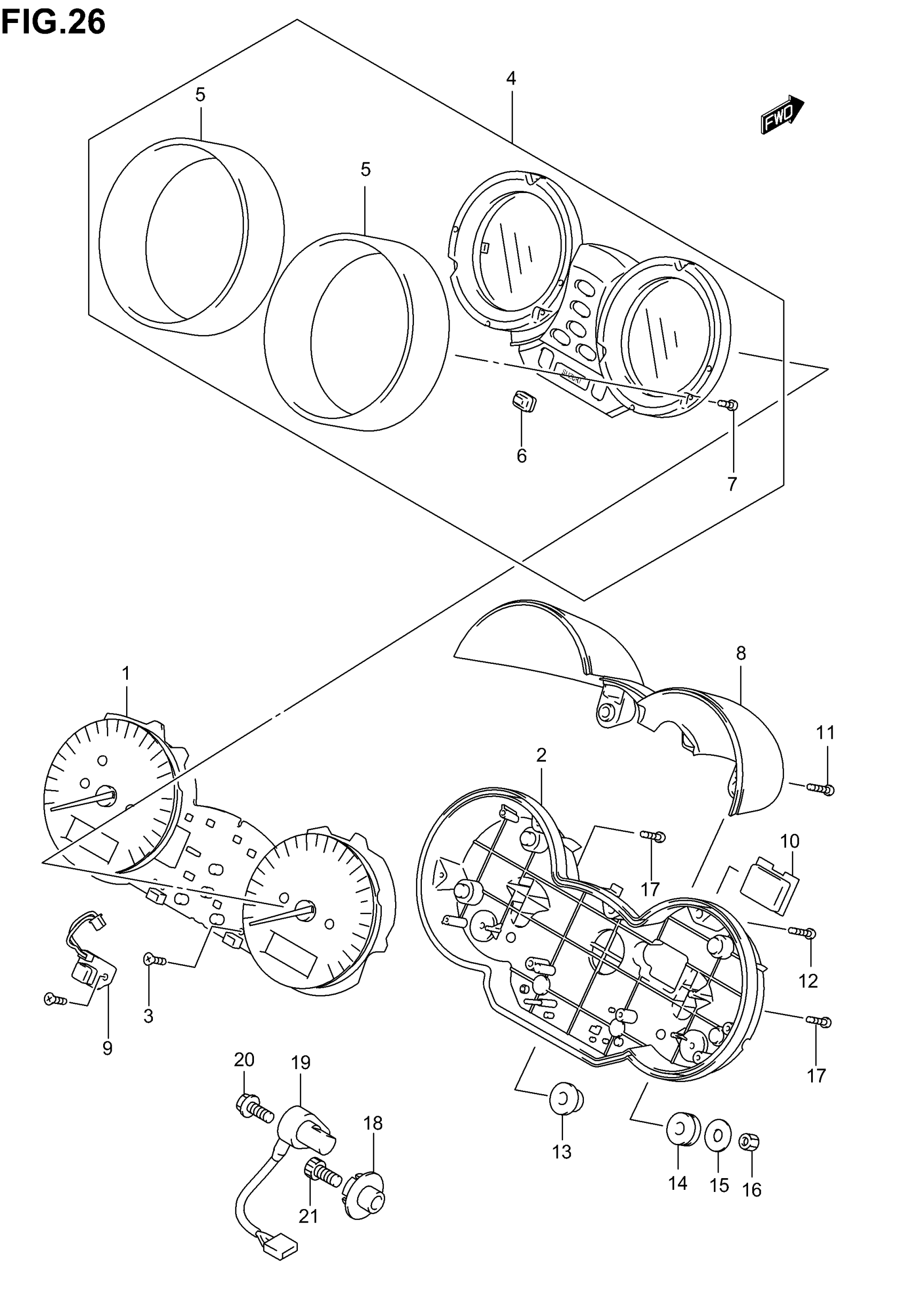

Find the part on the Speedometer diagram for your 2005 Suzuki GSF1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki GSF1200 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER (MILE/KILO)

34120-31F60

1
Out of stock

1

SPEEDOMETER (KILO) | E28

34120-31F50

—
Out of stock

2

LOWER CASE ASSY

34111-31F10

1
Out of stock

3

SCREW (4X14)

34149-17E10

2
Out of stock

4

UPPER CASE ASSY

34150-31F10

1
Out of stock

4

UPPER CASE ASSY | E28; Includes Item(s) 5 - 7

34150-31F30

1
Out of stock

5

RING

34193-31F10

2
Out of stock

6

RUBBER, SWITCH

34124-31F10

2
Out of stock

7

SCREW (2.3X8)

34183-31F10

6
Out of stock

8

COVER

34152-31F10

1
Out of stock

8

COVER | E28

34152-31F30

1
Out of stock

9

SWITCH, PRINT CIRCUIT

34177-31F10

2
Out of stock

10

GROMMET

34198-19F20

1
Out of stock

11

SCREW, PAN HEAD (3X14)

34149-31F10

2
Out of stock

12

SCREW (3X16)

09132-03008

7
Out of stock

13

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

1
Out of stock

14

CUSHION, METER NO.1

34189-32B00

2
Out of stock

15

WASHER, METER (5.5X16X1.20)

09160-05037

2
Out of stock

16

NUT This part replaces 08310-00053.

08310-0005A

2
Out of stock

17

SCREW (3X14)

34383-31F10

2
Out of stock

18

ROTOR,SPEED This part replaces 34981-35F00.

34981-38G01

1
Out of stock

19

SENSOR, SPEED This part replaces 34990-33E10.

34990-35F00

1
Out of stock

20

BOLT This part replaces 07120-05123.

07120-0512B

1
Out of stock

21

BOLT This part replaces 07130-08253.

07130-0825B

1
Out of stock
