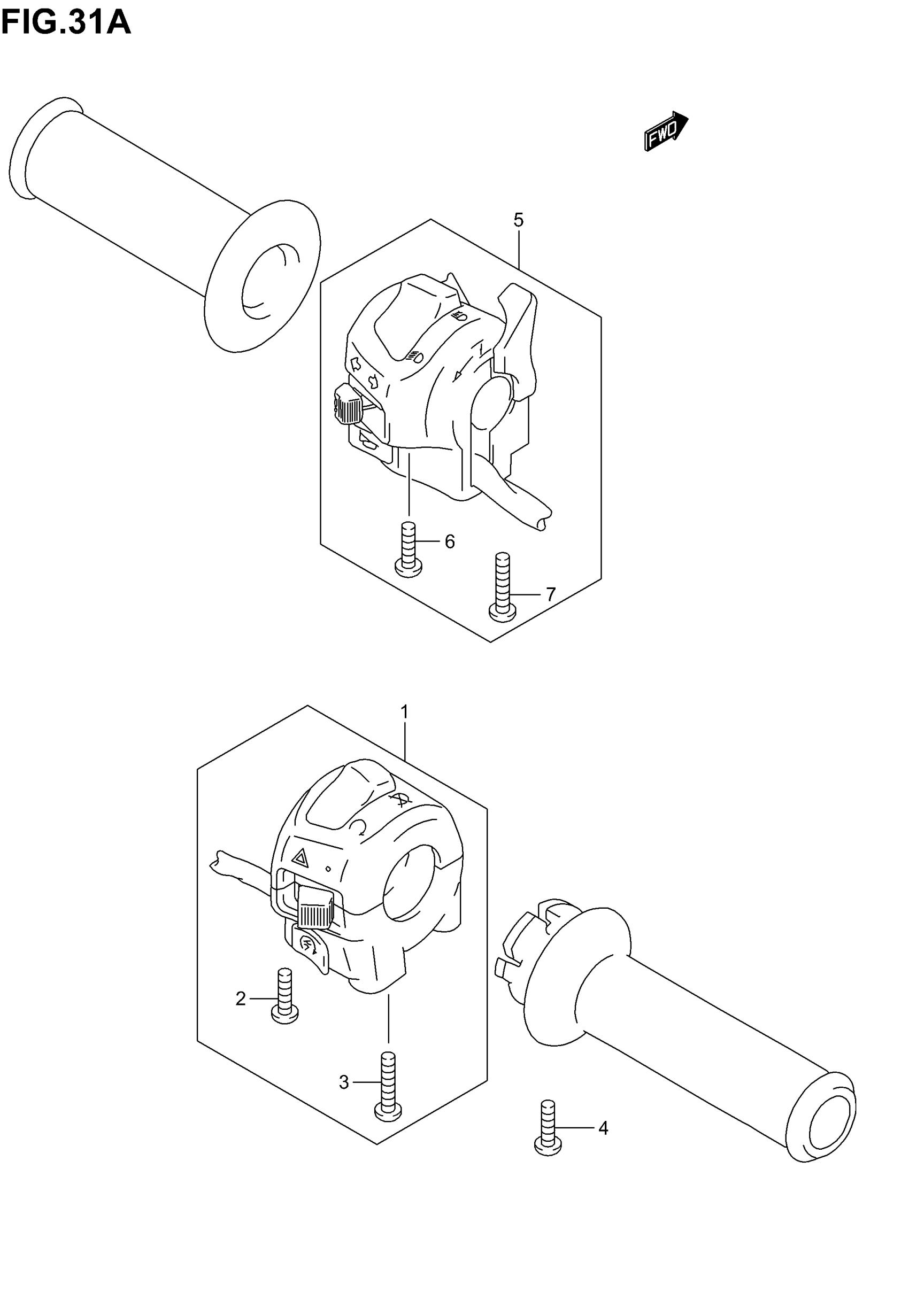

Suzuki GSF1200 (2005) HANDLE SWITCH (MODEL K4/K5) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | MODEL K4

37200-27E51

Unavailable

1

SWITCH ASSY, HANDLE RH | MODEL K5; Includes Item(s) 2 - 3

37200-17G10

$163.88

2

SCREW This part replaces 02112-05303.

02112-0530A

$1.93

3

SCREW This part replaces 02112-05503.

02112-0550B

$2.40

4

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.43

5

SWITCH ASSY, HANDLE LH | Includes Item(s) 6 - 7

37400-24F10

$261.62

6

SCREW, PIVOT This part replaces 02112-05253.

02112-0525A

$1.45

7

.SCREW This part replaces 02112-05453.

02112-0545B

$2.24
