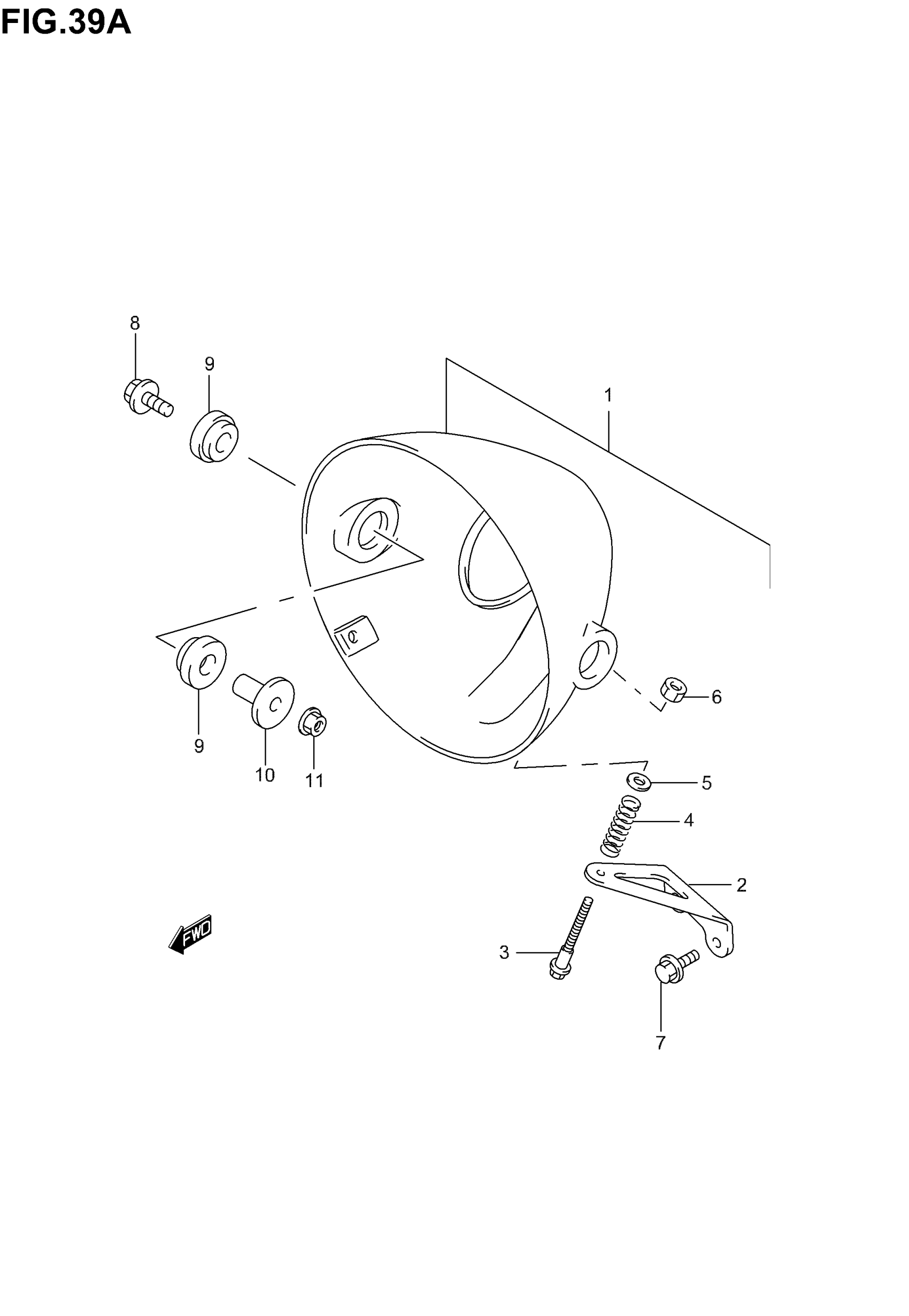

Suzuki GSF1200 (2005) HEADLAMP HOUSING (GSF1200K1/K2/K3) Diagram

#

Description

Price

1

HOUSING, HEADLAMP | Includes Item(s) 2 - 6

51800-32F00

Unavailable

2

PLATE, HOUSING

51814-31F00

Unavailable

3

BOLT, ADJUSTER

51858-25D00

Unavailable

4

SPRING, ADJUSTER

51837-25D00

$5.75

5

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.83

6

NUT

51825-25D00

$4.62

7

BOLT This part replaces 01550-05123.

01550-0512B

$3.12

8

BOLT, HOUSING

01244-08357

$3.66

9

CUSHION This part replaces 09320-12065.

09320-12101

$2.80

10

SPACER

09180-08168

$8.02

11

NUT This part replaces 08316-10083.

08316-1008B

$2.65
