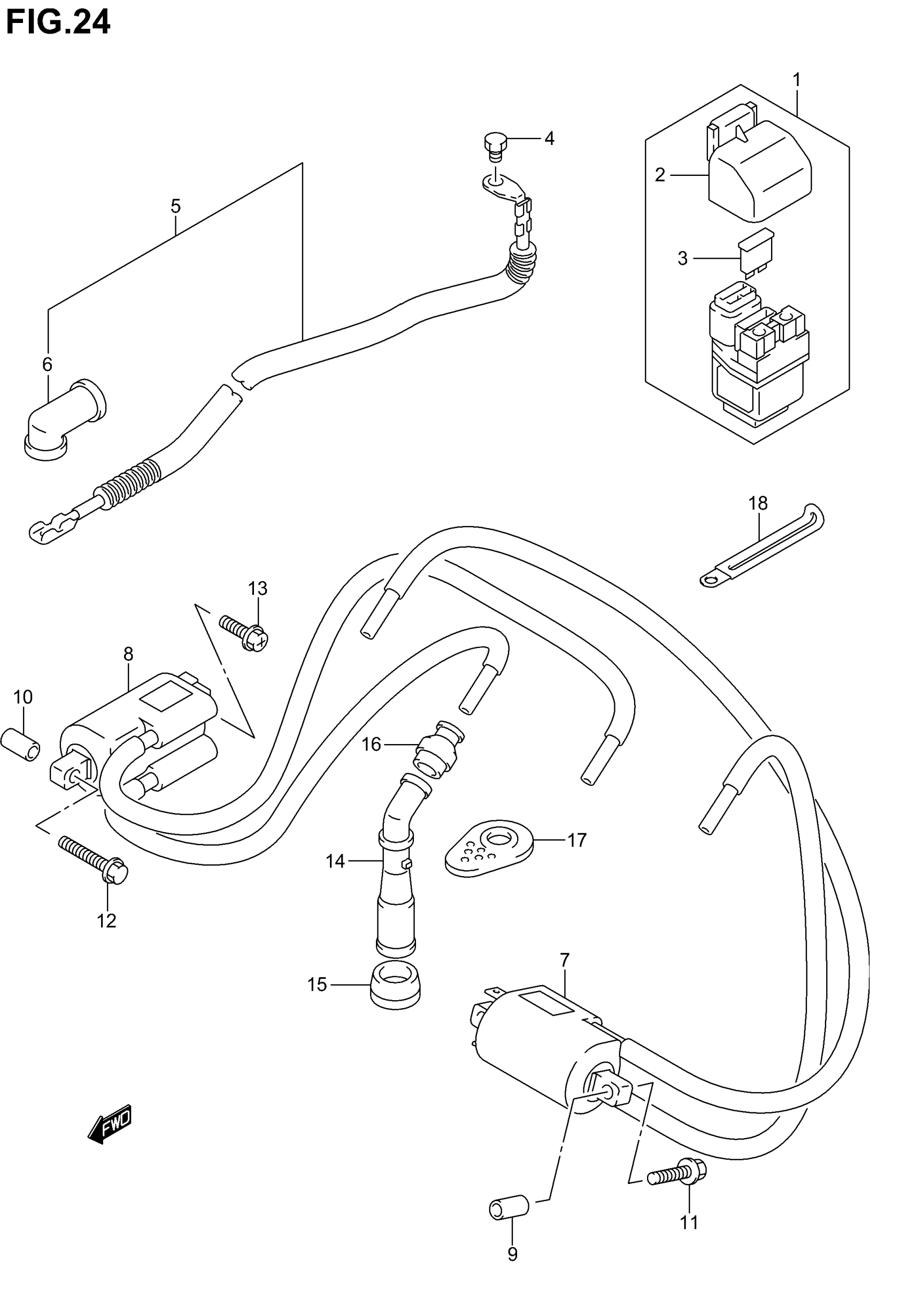

Suzuki GSF1200 (2005) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 3

31800-26E00

$93.08

2

COVER

31861-26E00

$4.09

3

FUSE (30A)

09481-30101

$2.35

4

SCREW (6X8)

09128-06013

$1.28

5

WIRE, STARTER MOTOR LEAD | Includes Item(s) 6

33810-32F00

Unavailable

6

CAP, STARTER MOTOR LEAD

31861-48B10

$7.40

7

COIL ASSY, IGNITION

33410-26E01

$186.88

8

COIL ASSY, IGNITION

33420-31F00

$141.08

9

SPACER (6X12X10)

09180-06095

$4.28

10

SPACER (6.4X10X18)

09180-06195

$4.70

11

BOLT This part replaces 01550-06253.

01550-0625A

$2.01

12

BOLT This part replaces 01550-06353.

01550-0635A

$2.38

13

BOLT This part replaces 02162-06203.

02162-0620C

$1.80

14

CAP, SPARK PLUG

33510-48B10

$30.40

15

SEAL, SPARK PLUG CAP

33541-23E01

$6.06

16

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

17

COVER, SPARK PLUG CAP

33543-32F00

$9.70

18

CLAMP This part replaces 09404-06431.

09404-06039

$1.79
