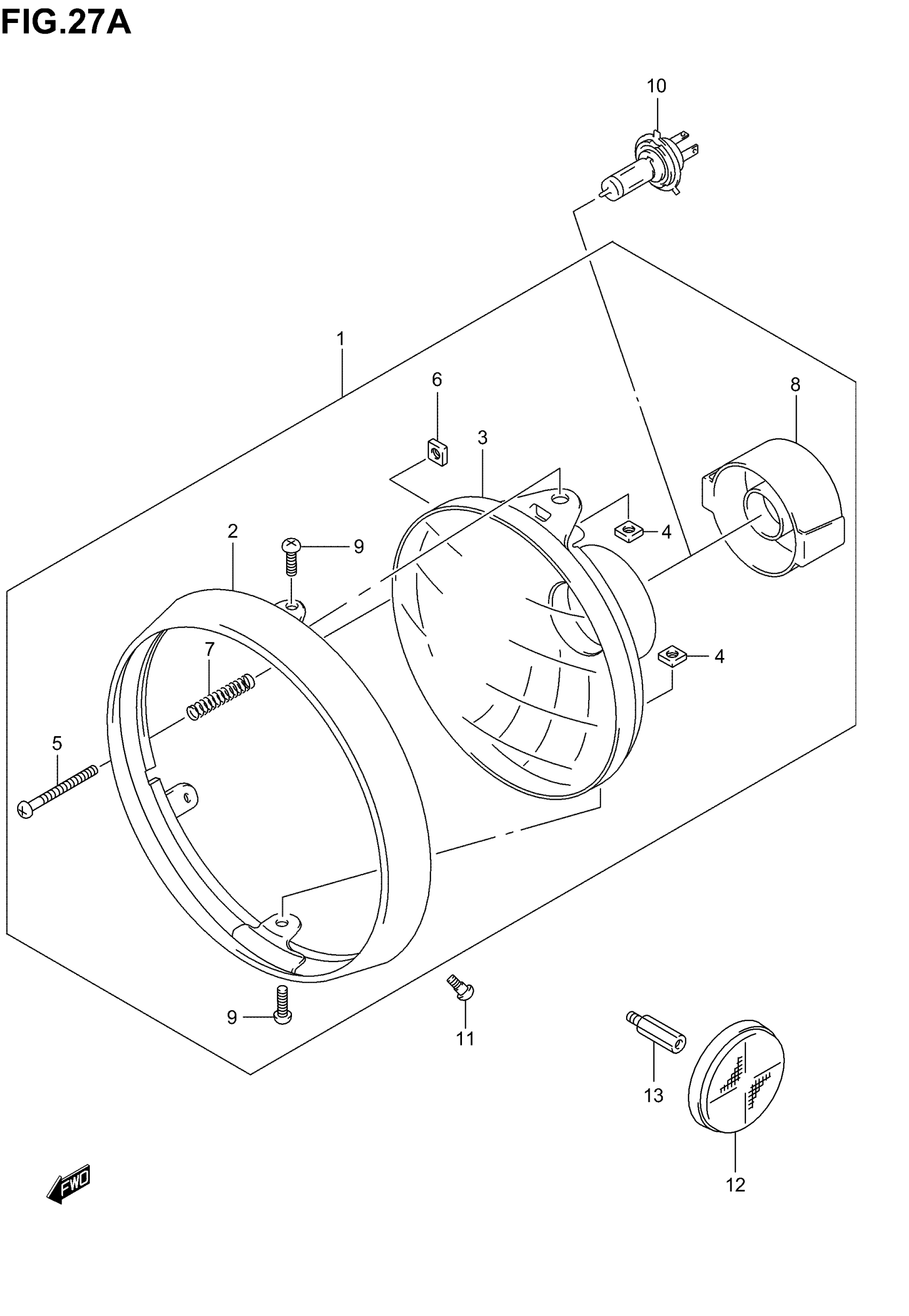

Suzuki GSF1200 (2005) HEADLAMP (GSF1200K1/K2/K3) Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 9 This part replaces 35100-19F00-999.

35100-19F01-999

$249.60

2

RIM

35111-19F00

$115.37

3

LAMP UNIT

35121-19F00

$170.28

4

NUT

35135-45900

$3.67

5

SCREW, ADJUSTING

35151-19F00

$5.10

6

.NUT

35152-45600

$3.92

7

SPRING

35154-13F00

$5.43

8

.COVER,SOCKET

35174-19F00

$34.12

9

.SCREW (5X16)

35181-19F00

$3.67

10

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$22.69

11

SCREW, HEADLAMP

09139-05038

$2.15

12

REFLEX-REFLECTOR ASSY, FR SIDE

35950-14A00

$15.95

13

BOLT (5X10) | MODEL K1 This part replaces 35959-05900.

09119-05023

$13.80

13

BOLT (5X10) | MODEL K2/K3

09119-05023

$13.80
