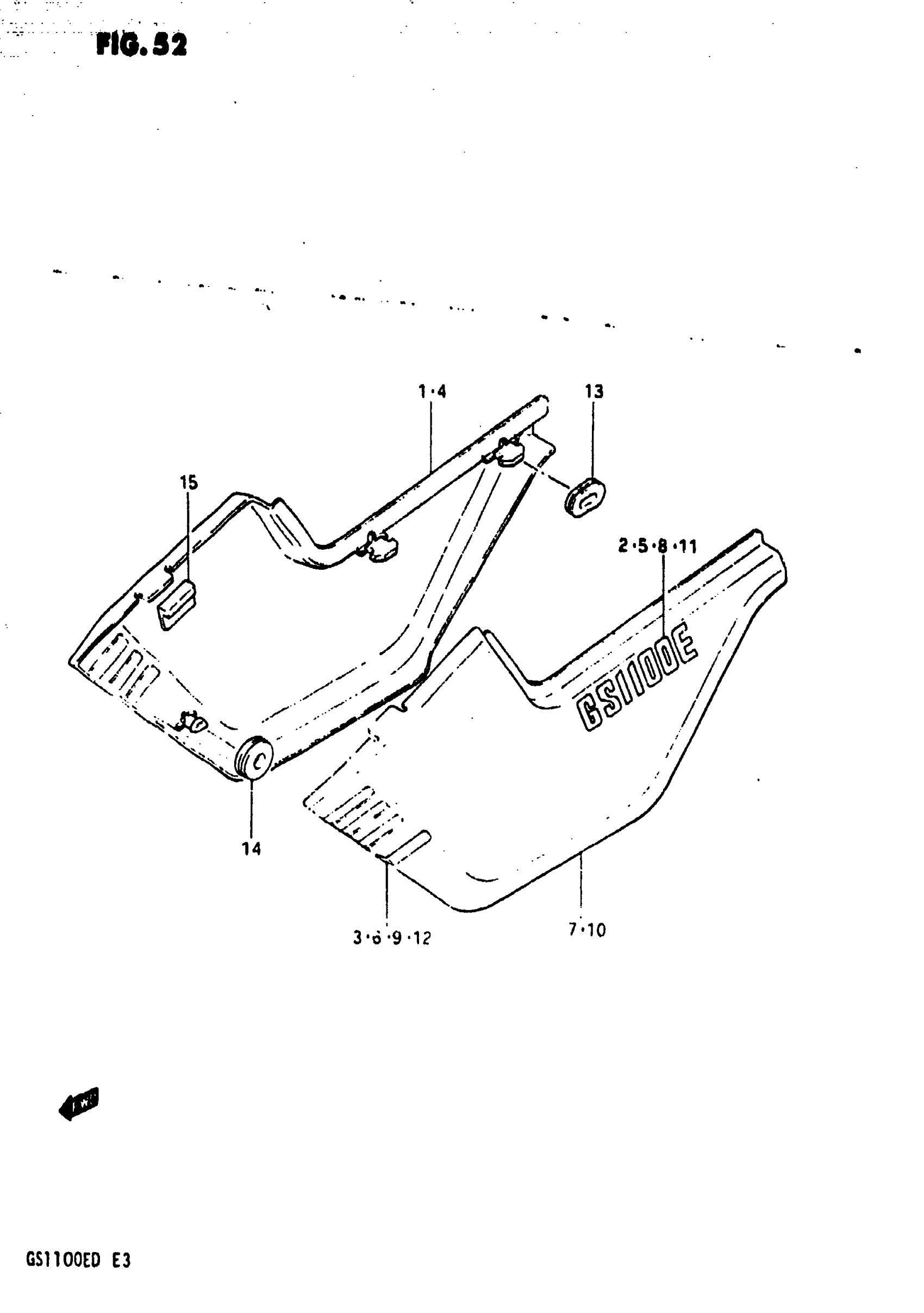

Find the part on the Frame Cover diagram for your 1983 Suzuki GS1100E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100E Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,FRAME,RH | Includes Item(s) 2 - 3 This part replaces 47110-49510-14B.

47111-49500

1
Out of stock

2

EMBLEM, RH This part replaces 68131-49510-65H.

68131-49530-73H

1
Out of stock

3

LABEL, DENT

68134-49500

3
Out of stock

4

COVER,FRAME,RH | Includes Item(s) 5 - 6 This part replaces 47110-49510-10S.

47111-49500

1
Out of stock

5

EMBLEM, RH This part replaces 68131-49510-991.

68131-49530-73H

1
Out of stock

6

LABEL, DENT

68134-49500

3
Out of stock

7

COVER,FRAME,LH | Includes Item(s) 8 - 9 This part replaces 47210-49510-14B.

47211-49500

1
Out of stock

8

EMBLEM, RH This part replaces 68131-49510-65H.

68131-49530-73H

1
Out of stock

9

LABEL, DANT

68144-49500

3
Out of stock

10

COVER,FRAME,LH | Includes Item(s) 11 - 12 This part replaces 47210-49510-10S.

47211-49500

1
Out of stock

11

EMBLEM, RH This part replaces 68131-49510-991.

68131-49530-73H

1
Out of stock

12

LABEL, DENT

68144-49500

3
Out of stock

13

CUSHION This part replaces 09320-03005.

09320-03004

4
Out of stock

14

CUSHION, LOWER

09320-08018

2
Out of stock

15

CUSHION, FRONT UPPER

47117-45000

2

$2.48

In stock
