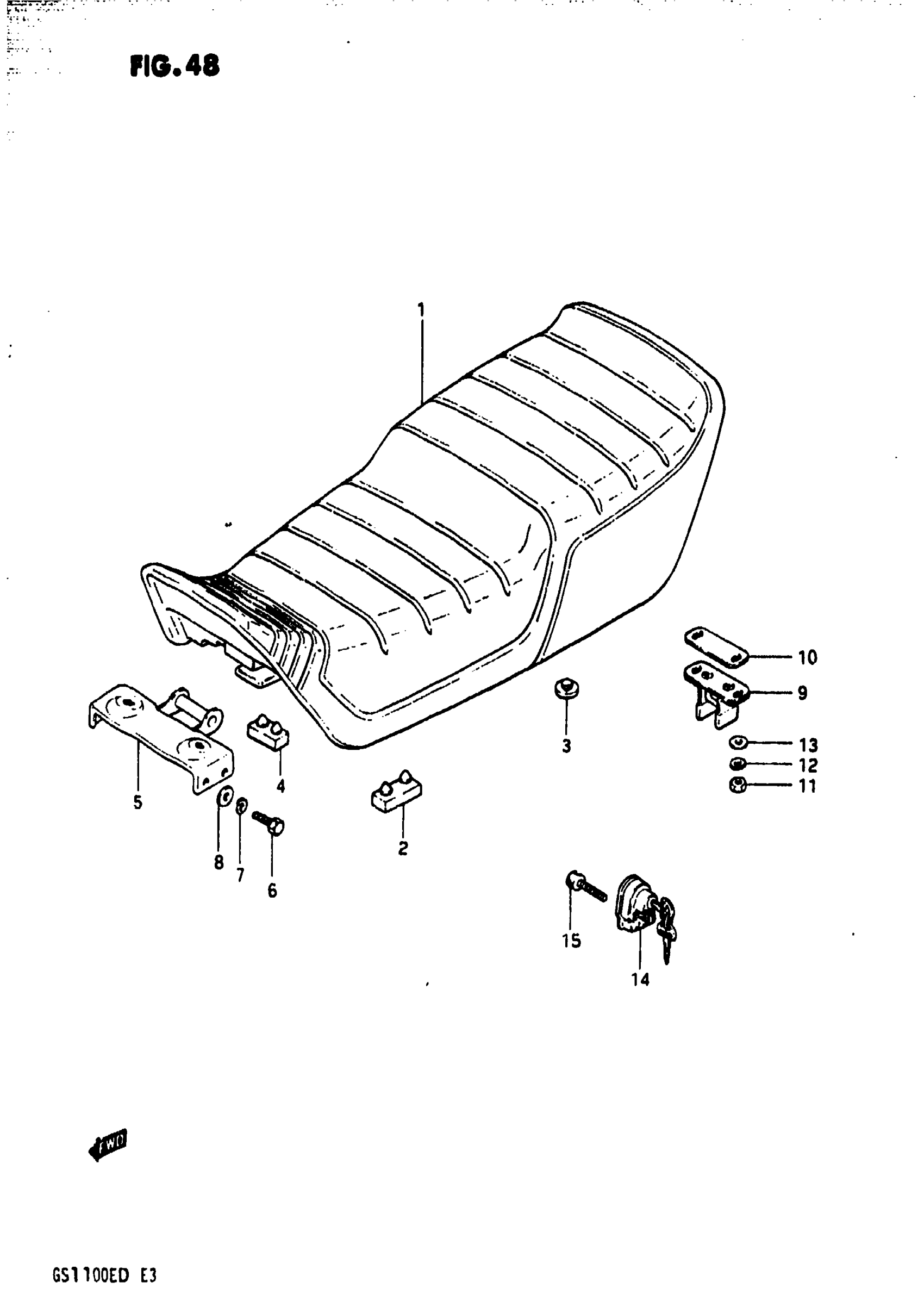

Suzuki GS1100E (1983) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 45100-49510-50C.

45100-49512-50C

Unavailable

1

NO DESCRIPTION AVAILABLE | GS1100ED This part replaces 45100-49511-50C.

45100-49512-50C

Unavailable

1

SEAT ASSY (BLACK) | GS1100ESD

45100-49512-48H

Unavailable

2

CUSHION

09321-08009

$2.80

3

CUSHION

09321-10007

$2.80

4

CUSHION

09321-08010

$4.18

5

PLATE, FRONT

45270-49500

Unavailable

6

BOLT This part replaces 01104-05108.

01500-0510B

$1.81

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

8

WASHER This part replaces 08322-21058.

08322-01057

$1.86

9

STRIKER, SEAT LOCK

45210-44101

Unavailable

10

SHIM

45217-44100

Unavailable

11

.NUT This part replaces 08310-22068.

08310-00067

$1.83

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

13

WASHER This part replaces 08322-21068.

08322-01067

$1.86

14

LOCK, HELMET

95700-34210

Unavailable

15

BOLT This part replaces 09106-05008.

07130-0525B

$2.70
