1983 Suzuki GS1100E Footrest Diagram

← All diagrams

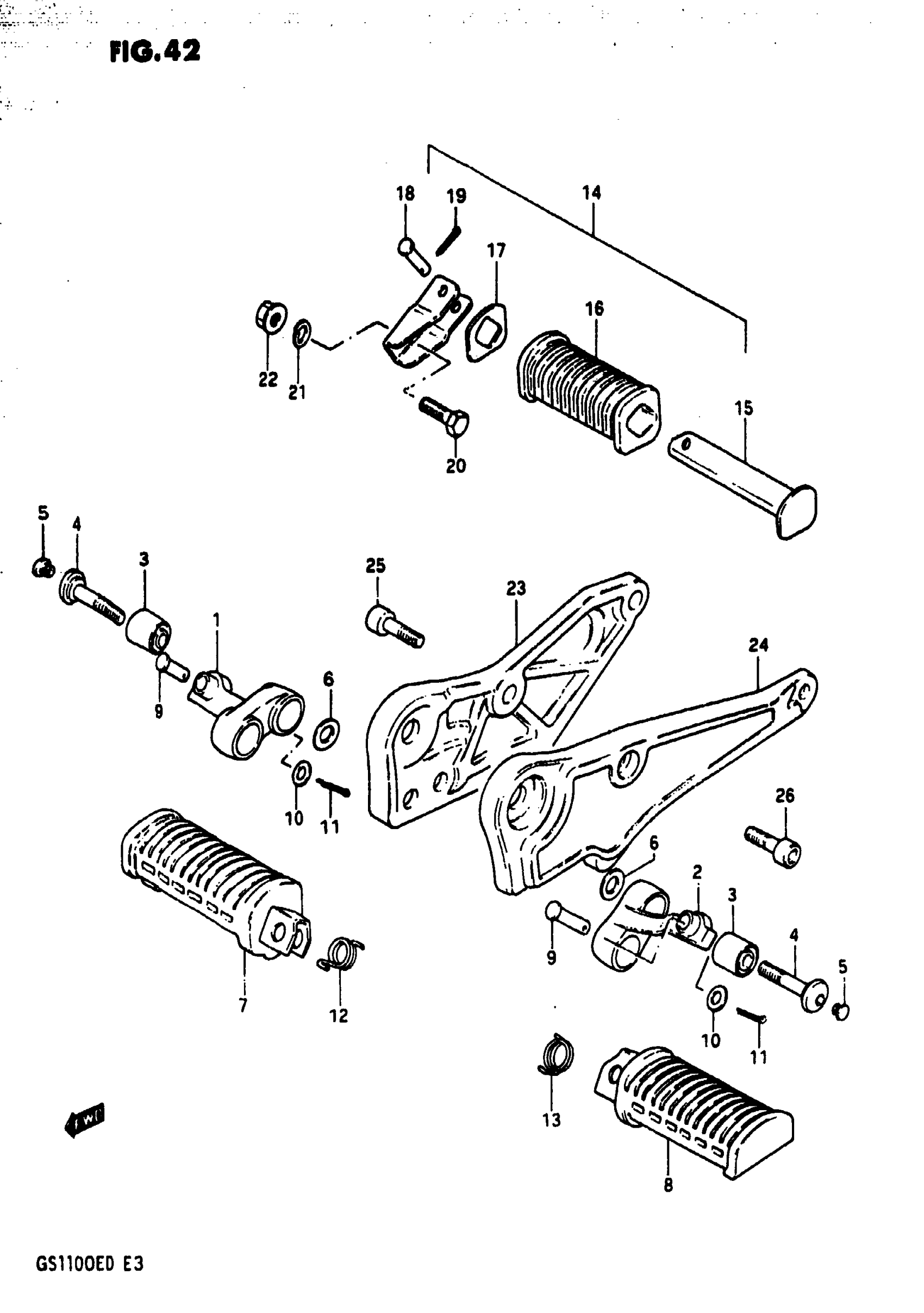

Find the part on the Footrest diagram for your 1983 Suzuki GS1100E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100E Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, FRONT FOOTREST RH

43510-49510

1
Out of stock

2

BAR, FRONT FOOTREST LH

43520-49510

1
Out of stock

3

BUSHING

09319-10008

4
Out of stock

4

BOLT

09106-10010

4
Out of stock

5

CAP

43575-34500

4
Out of stock

6

WASHER This part replaces 09160-10058.

09160-10005

4
Out of stock

7

RUBBER FR FOOTR This part replaces 43550-34500.

43550-34501

1
Out of stock

8

RUBBER FR FOOTR This part replaces 43560-34500.

43560-34501

1
Out of stock

9

PIN

09200-08002

2
Out of stock

10

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

12

SPRING, RH

09448-19014

1
Out of stock

13

SPRING, LH

09448-19015

1
Out of stock

14

FOOTREST, PILLION RH This part replaces 43600-49500.

43600-49502

1
Out of stock

14

FOOTREST, PILLION LH | Includes Item(s) 15 - 19 This part replaces 43700-49500.

43700-49502

1
Out of stock

15

NO DESCRIPTION AVAILABLE This part replaces 43610-49400.

43610-49401

1
Out of stock

15

BAR, PILLION FOOTREST, RH This part replaces 43620-49400.

43620-49401

1
Out of stock

16

RUBBER, PILLION FOOTREST This part replaces 43612-49400.

43612-49402

2
Out of stock

17

WASHER This part replaces 43631-49400.

43631-49401

2
Out of stock

18

PIN

09200-06010

2
Out of stock

19

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

20

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

2
Out of stock

21

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

22

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

2
Out of stock

23

BRACKET, MUFFLER RH

43811-49500

1
Out of stock

24

BRACKET, MUFFLER LH

43821-49500

1
Out of stock

25

BOLT, LOWER This part replaces 09106-10006.

07130-10307

1
Out of stock

26

BOLT, L This part replaces 09106-10007.

07130-1040B

1
Out of stock
