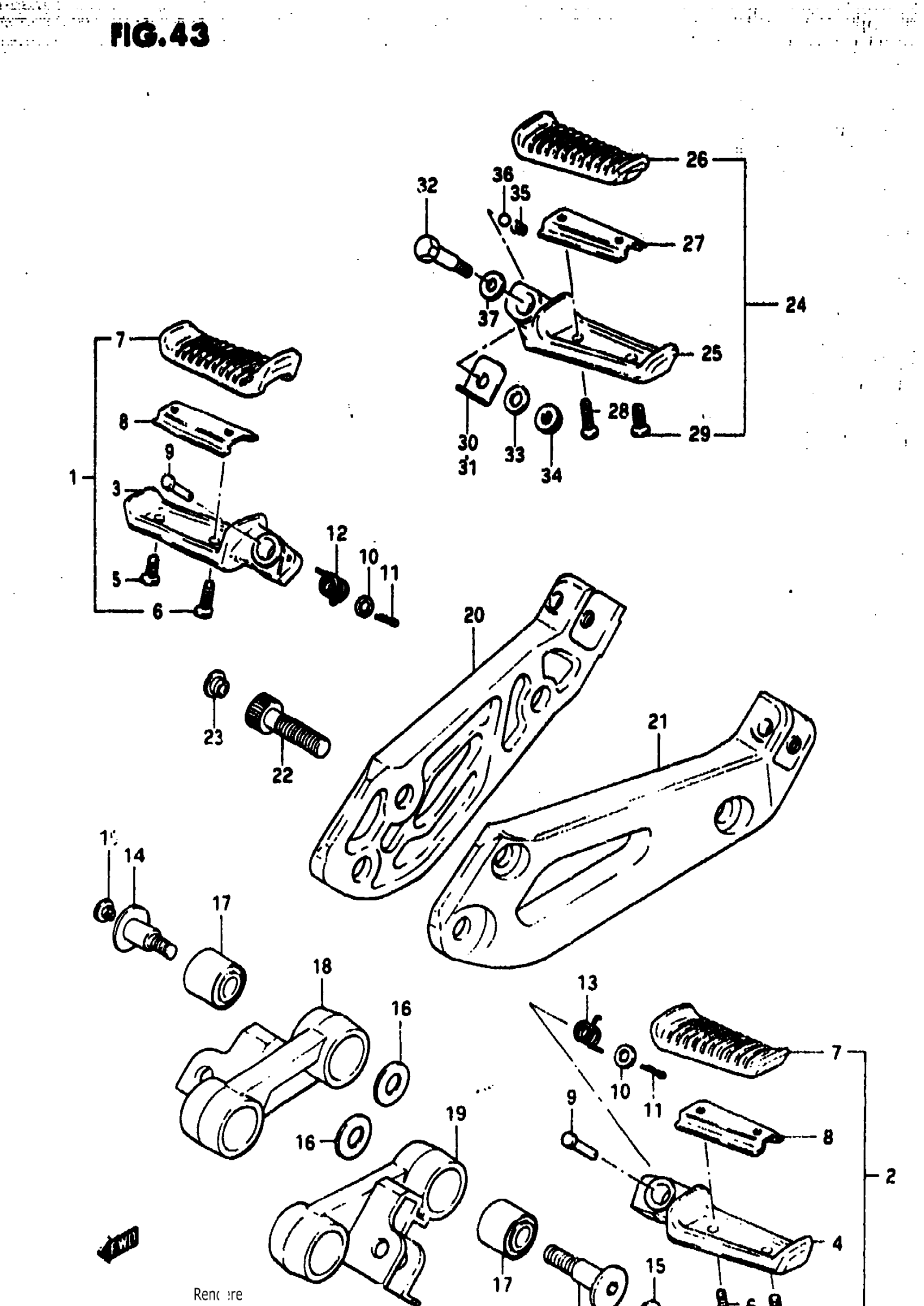

Suzuki GS1100E (1983) FOOTREST (MODEL D) Diagram

#

Description
Price

1

FOOTREST ASSY,F This part replaces 43501-33300.

43501-33301

Unavailable

2

FOOTREST ASSY,F | Includes Item(s) 3 - 8 This part replaces 43502-33300.

43502-33301

Unavailable

3

FOOTREST ASSY,F This part replaces 43510-33300.

43501-33301

Unavailable

4

FOOTREST ASSY,F This part replaces 43520-33300.

43502-33301

Unavailable

5

SCREW This part replaces 02112-05128.

02112-05127

$1.97

6

SCREW This part replaces 02112-05168.

02112-05167

$1.97

7

RUBBER,FR FOOTR This part replaces 43551-33300.

43551-33301

Unavailable

8

PLATE, FRONT FOOTREST RUBBER This part replaces 43580-33300.

43580-33301

Unavailable

9

PIN

09200-08040

Unavailable

10

WASHER This part replaces 08322-11088.

08322-01087

$1.86

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

12

SPRING, RH

09448-14029

Unavailable

13

SPRING This part replaces 09448-14028.

09448-14028-XC0

$4.15

14

BOLT

09106-10010

Unavailable

15

CAP

43575-34500

$1.78

16

WASHER This part replaces 09160-10058.

09160-10005

$1.86

17

BUSH

09319-10008

$6.68

18

HOLDER, FOOTREST RH

43531-49520

Unavailable

19

HOLDER, FOOTREST LH

43541-49520

Unavailable

20

BRACKET, MUFFLER RH

43811-49510

Unavailable

21

BRACKET, MUFFLER LH

43821-49510

Unavailable

22

BOLT, LOWER This part replaces 09106-10006.

07130-10307

$5.63

23

CAP

43575-34500

$1.78

24

FOOTREST ASSY, PILLION RH

43600-45501

Unavailable

24

FOOTREST ASSY, PILLION | Includes Item(s) 25 - 29

43700-45501

Unavailable

25

BAR, PILLION FOOTREST RH

43610-45501

Unavailable

25

BAR, PILLION FOTTREST

43710-45501

Unavailable

26

RUBBER, PILLION FOOTREST

43612-45500

Unavailable

27

PLATE, RUBBER STOP This part replaces 43632-45500.

43632-45501

Unavailable

28

SCREW This part replaces 02132-05127.

02122-05127

$1.68

29

SCREW This part replaces 02132-05168.

02122-05167

$0.81

30

PLATE, SPRING STOP RH

43635-33300

Unavailable

31

PLATE, SPRING STIOP LH

43735-33300

Unavailable

32

BOLT

09111-06035

Unavailable

33

WASHER This part replaces 08322-11088.

08322-01087

$1.86

34

NUT This part replaces 08319-31068.

08319-31067

$2.01

35

SPRING

09440-05003

$1.48

36

BALL

06111-07004

$1.22

37

SHIM

09181-08004

Unavailable
