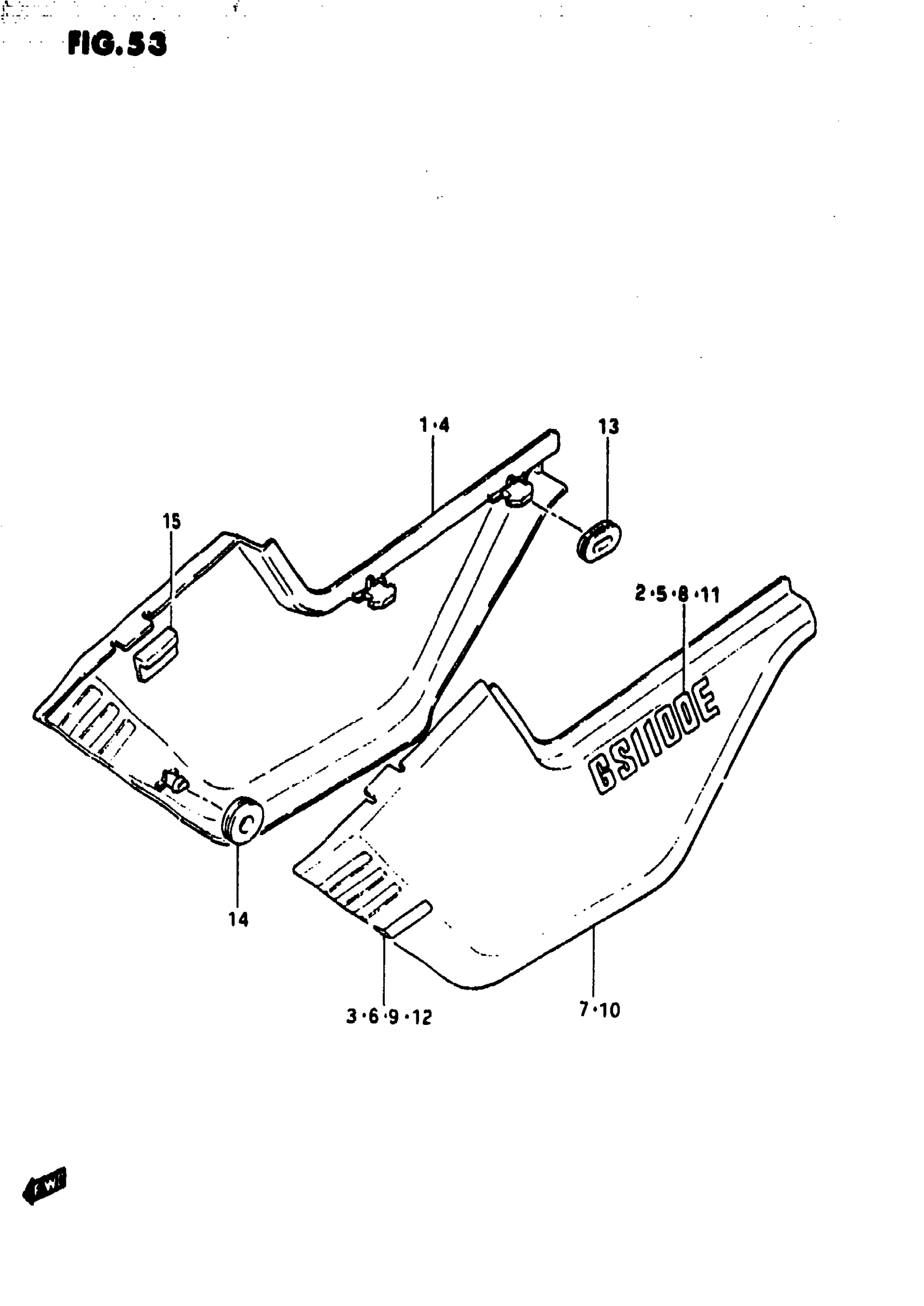

Suzuki GS1100E (1983) FRAME COVER (GS1100ED) Diagram

#

Description
Price

1

COVER,FRAME,RH | Includes Item(s) 2 - 3 This part replaces 47110-49510-17S.

47111-49500

Unavailable

2

EMBLEM, RH This part replaces 68131-49510-60R.

68131-49530-73H

Unavailable

3

LABEL, DENT

68134-49500

Unavailable

4

COVER,FRAME,RH | Includes Item(s) 5 - 6 This part replaces 47110-49510-17R.

47111-49500

Unavailable

5

EMBLEM, RH This part replaces 68131-49510-991.

68131-49530-73H

Unavailable

6

LABEL, DENT

68134-49500

Unavailable

7

COVER,FRAME,LH | Includes Item(s) 8 - 9 This part replaces 47210-49510-17S.

47211-49500

Unavailable

8

EMBLEM, RH This part replaces 68131-49510-60R.

68131-49530-73H

Unavailable

9

LABEL, DENT

68144-49500

Unavailable

10

COVER,FRAME,LH | Includes Item(s) 11 - 12 This part replaces 47210-49510-17R.

47211-49500

Unavailable

11

EMBLEM, RH This part replaces 68131-49510-991.

68131-49530-73H

Unavailable

12

LABEL, DENT

68144-49500

Unavailable

13

CUSHION This part replaces 09320-03005.

09320-03004

$1.68

14

CUSHION, LOWER

09320-08018

$2.82

15

CUSHION, FRONT UPPER

47117-45000

$2.14
