1985 Kawasaki GPZ 750 Turbo Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1985 Kawasaki GPZ 750 Turbo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

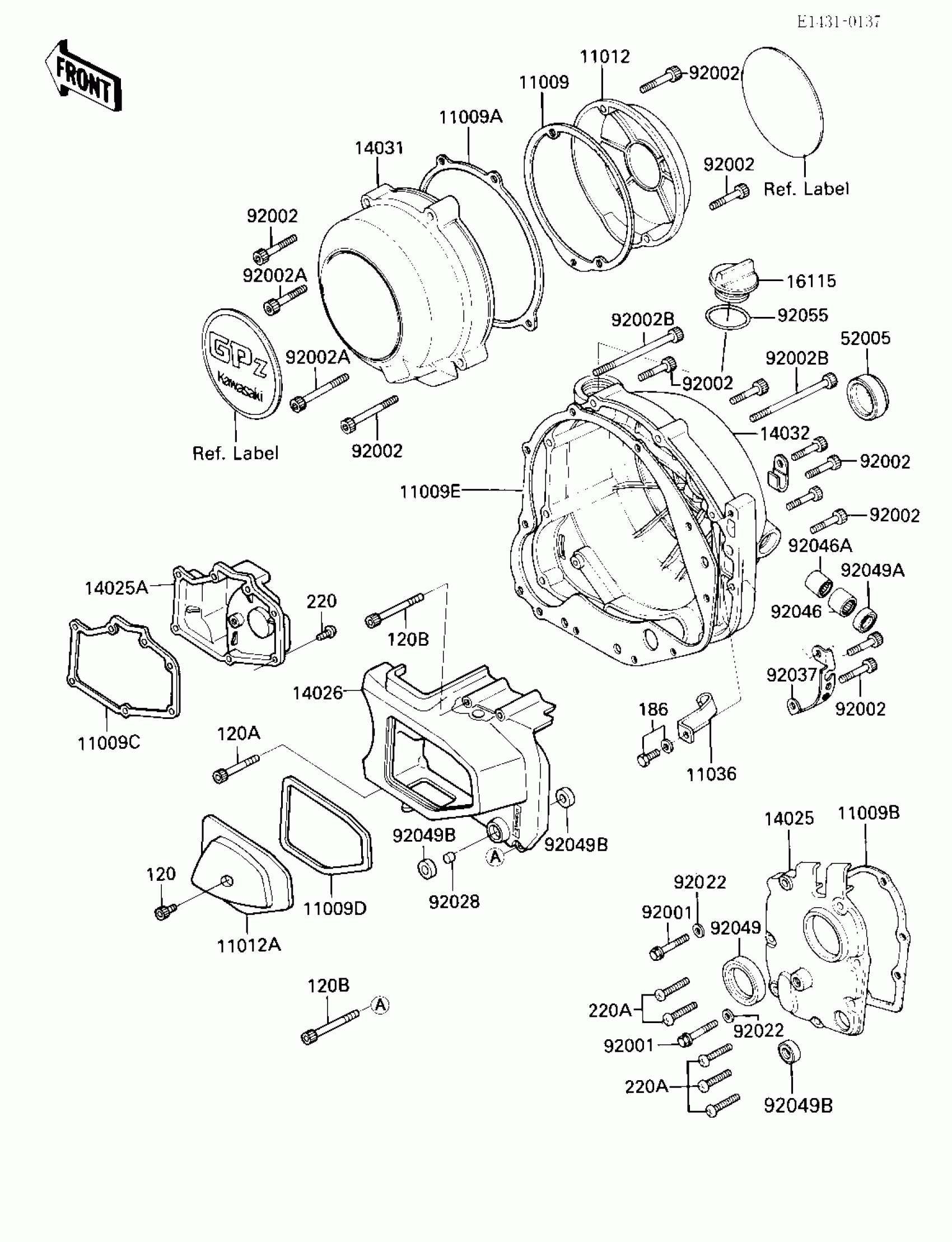

1985 Kawasaki GPZ 750 Turbo Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$6.45

In stock

11009A

1

$10.02

In stock

11009B

GASKET,TRANSMISSION COVER

11009-1985

1
Out of stock

11009C

GASKET,CHAIN COVER

11009-1355

1
Out of stock

11009D

GASKET,CAP

11009-1356

1
Out of stock

11009E

1

$30.41

In stock

11012

CAP,PULSING COIL,BLAC

11012-1287

1
Out of stock

11012A

CAP,AIR SCOOP

11012-1352

1
Out of stock

11036

BRACKET-A,CLUTCH CABL

11036-1832

1
Out of stock

14025

COVER,TRANSMISSION

14025-1605

1
Out of stock

14025A

COVER

14025-1759

1
Out of stock

14026

COVER-CHAIN

14026-1110

1
Out of stock

14031

COVER-GENERATOR

14031-1151

1
Out of stock

14032

COVER-CLUTCH,BLACK

14032-1109

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

52005

GAUGE,OIL LEVEL

52005-1017

1
Out of stock

92001

BOLT,HEX HEAD,6X35

92001-164

1

$5.75

In stock

92002

BOLT,6X30

92002-1095

1

$4.41

In stock

92002A

BOLT-SOCKET,6X40,BLACK

120S0640

1
Out of stock

92002B

BOLT,SOCKET,6X80

92002-1144

1
Out of stock

92022

1

$3.13

In stock

92028

BUSHING,13X15X20

92028-1251

1

$12.03

In stock

92037

CLAMP,TUBE&HARNESS

92037-1414

1

$3.49

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92046A

BEARING-NEEDLE,HK0910

92046-1060

1
Out of stock

92049

SEAL-OIL,SC325210

92050-024

1
Out of stock

92049A

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92049B

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

120

BOLT-SOCKET,6X16

120S0616

1
Out of stock

120A

BOLT-SOCKET,6X60

120S0660

1
Out of stock

120B

BOLT-SOCKET,6X80,BLAC

120S0680

1
Out of stock

186

BOLT-UPSET-WP,6X12

186C0612

1
Out of stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

220A

1

$4.61

In stock
