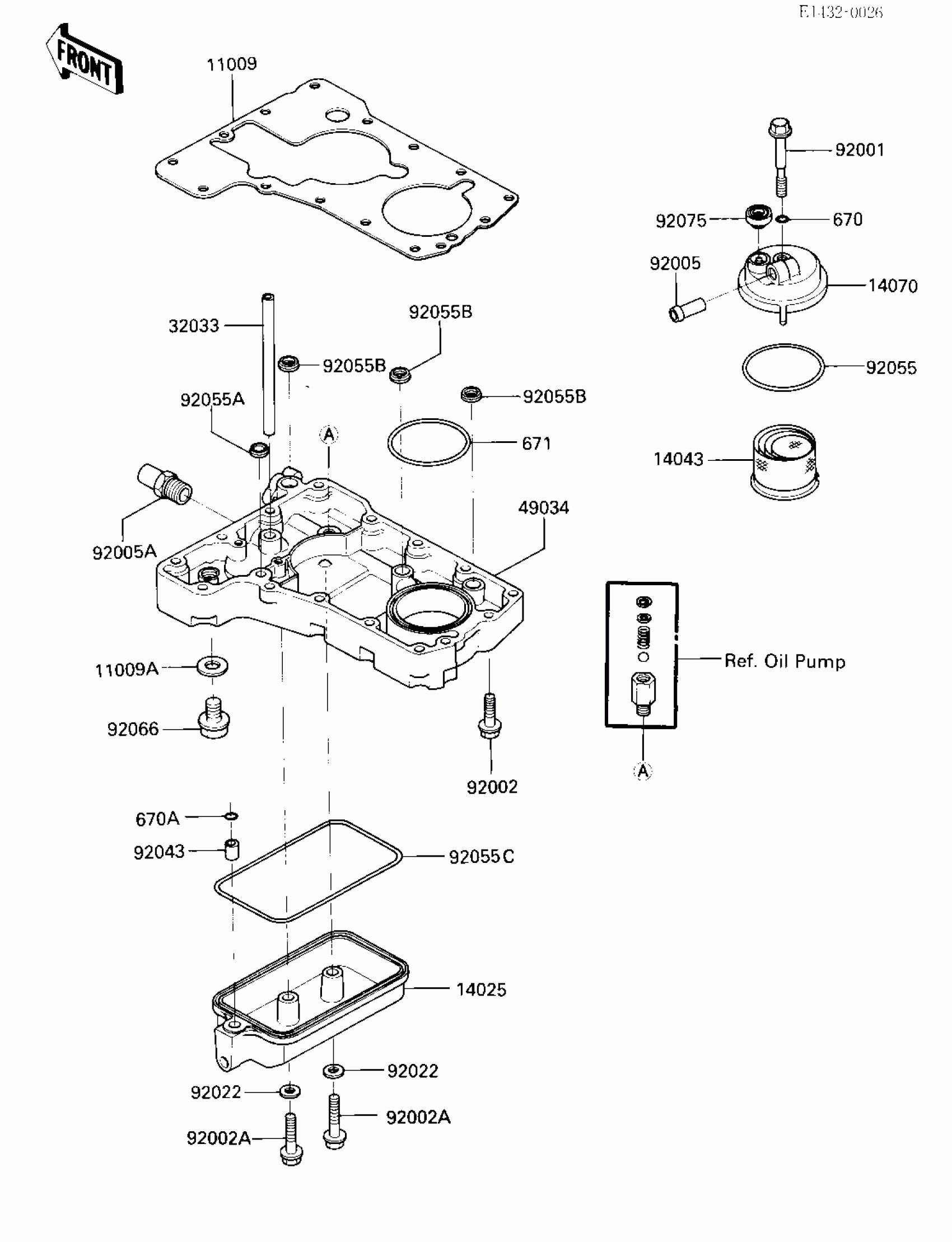

Kawasaki GPz 750 Turbo BREATHER COVER/OIL PAN Diagram

Description

Price

11009

GASKET,OIL PAN

11009-1357

Unavailable

11009A

GASKET,12X22X2

92065-097

$0.66

14025

COVER,OIL PAN

14025-1761

Unavailable

14043

FILTER,OIL

14043-1054

Unavailable

14070

BODY-BREATHER

14070-1052

$24.88

32033

PIPE-A

32033-1106

$4.83

49034

PAN-OIL

49034-1051

$264.54

92001

BOLT,8X72,BLACK

92001-1526

Unavailable

92002

BOLT,6X25

92002-1089

$1.84

92002A

BOLT

92150-1238

Unavailable

92005

FITTING,BREATHER BODY

92005-1104

$4.80

92005A

FITTING,OIL PAN

92005-1105

Unavailable

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92055

RING-O,91.6X3.4

92055-052

$7.52

92055A

RING-O,OD=13

92055-074

$6.55

92055B

RING-O,19.5MM

92055-077

$4.47

92055C

RING-O,OIL PAN COVER

92055-1211

$15.47

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92075

DAMPER

92075-1045

$6.75

670

O RING,8MM

670B1508

$1.00

670A

O RING,9.8X1.9

670B1510

$3.29

671

O RING,90MM

671B2590

$7.54
