1985 Kawasaki GPZ 750 Turbo Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1985 Kawasaki GPZ 750 Turbo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

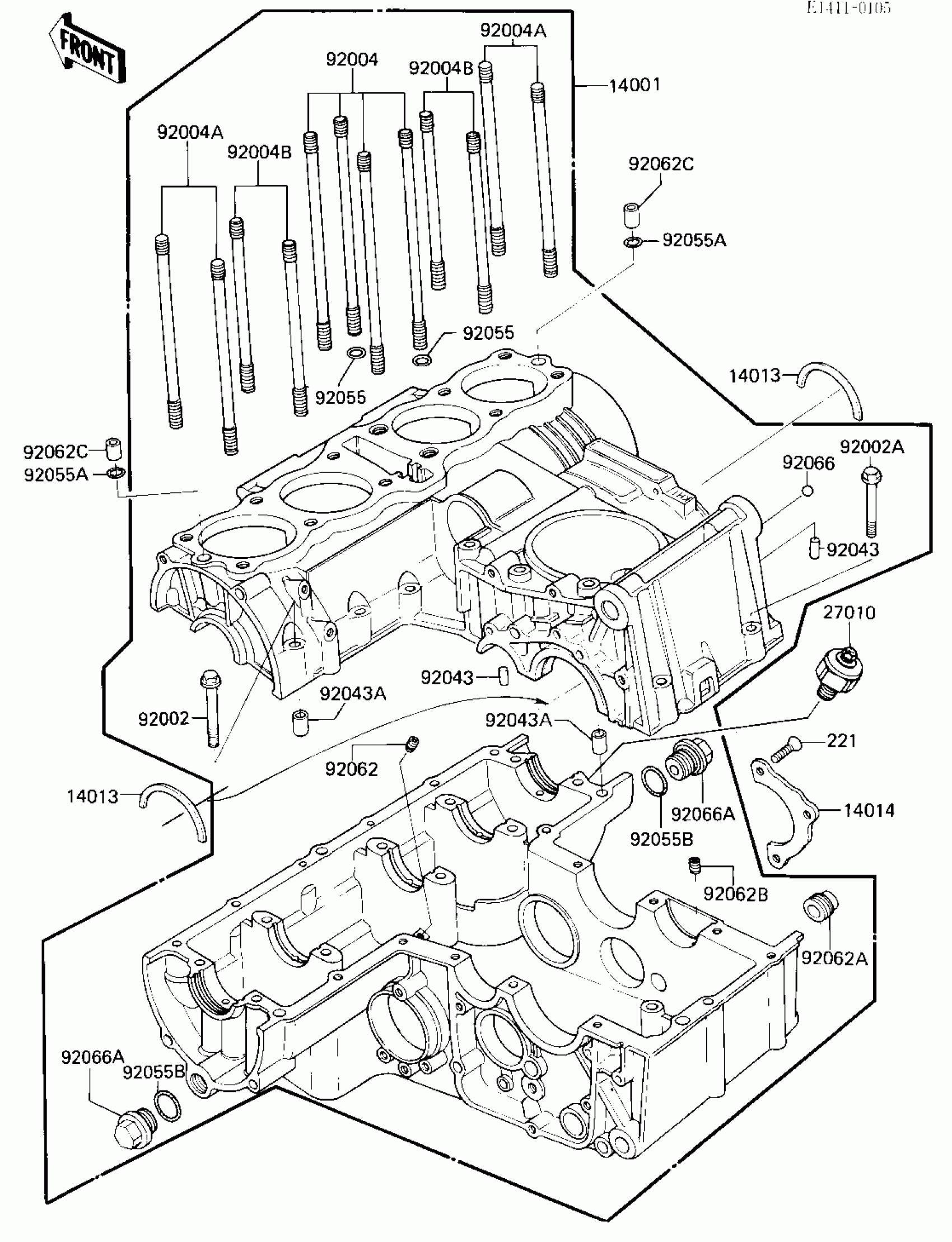

1985 Kawasaki GPZ 750 Turbo Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14001

SET-CRANKCASE

14001-5154

1
Out of stock

14013

RING-POSITION

14013-1051

1
Out of stock

14014

PLATE-POSITION,SECONDARY SHAFT

14014-1007

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1155

1
Out of stock

92002

BOLT,6X50

92002-1079

1
Out of stock

92002A

BOLT,6X40

92002-1080

1
Out of stock

92004

STUD,10X153

92004-062

1
Out of stock

92004A

STUD,10X133

92004-1004

1
Out of stock

92004B

STUD,10X116

92004-1007

1
Out of stock

92043

PIN,DOWEL,6X16

92042-016

1
Out of stock

92043A

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92055

RING-O,8.8X1.9

92055-099

1
Out of stock

92055A

O RING,10MM

670D2010

1
Out of stock

92055B

RING-O,20X2

92055-1146

1
Out of stock

92062

NOZZLE,BLACK

92062-011

1
Out of stock

92062A

NOZZLE

92062-014

1
Out of stock

92062B

NOZZLE,SILVER

92062-015

1
Out of stock

92062C

NOZZLE

92062-016

1
Out of stock

92066

PLUG,RUBBER BALL,6.7

92066-057

1
Out of stock

92066A

PLUG,MAIN GALLERY,18X9,BLACK

92066-1096

1
Out of stock

221

SCREW-CSK-CROS,6X20

221B0620

1
Out of stock
