1985 Kawasaki GPZ 750 Turbo Crankcase Bolt & Stud Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt & Stud Pattern diagram for your 1985 Kawasaki GPZ 750 Turbo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

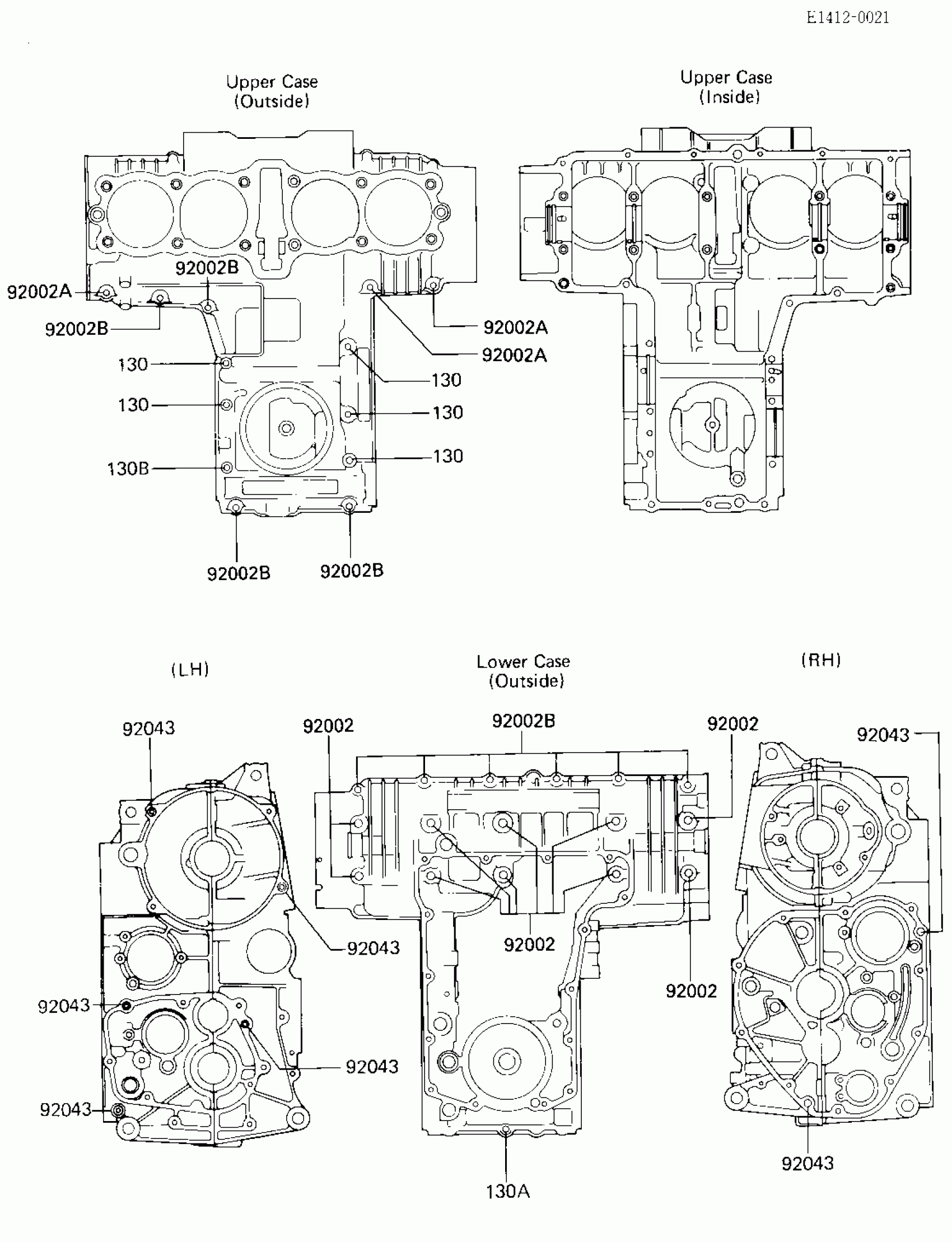

1985 Kawasaki GPZ 750 Turbo Crankcase Bolt & Stud Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92002

BOLT,8X95

92002-1077

1

$10.63

In stock

92002A

BOLT,6X50

92002-1079

1

$5.17

In stock

92002B

BOLT,6X40

92002-1080

1

$3.74

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

130

BOLT-FLANGED

130T06100

1
Out of stock

130A

BOLT-FLANGED

130T06105

1
Out of stock

130B

BOLT-FLANGED

130T06115

1
Out of stock
