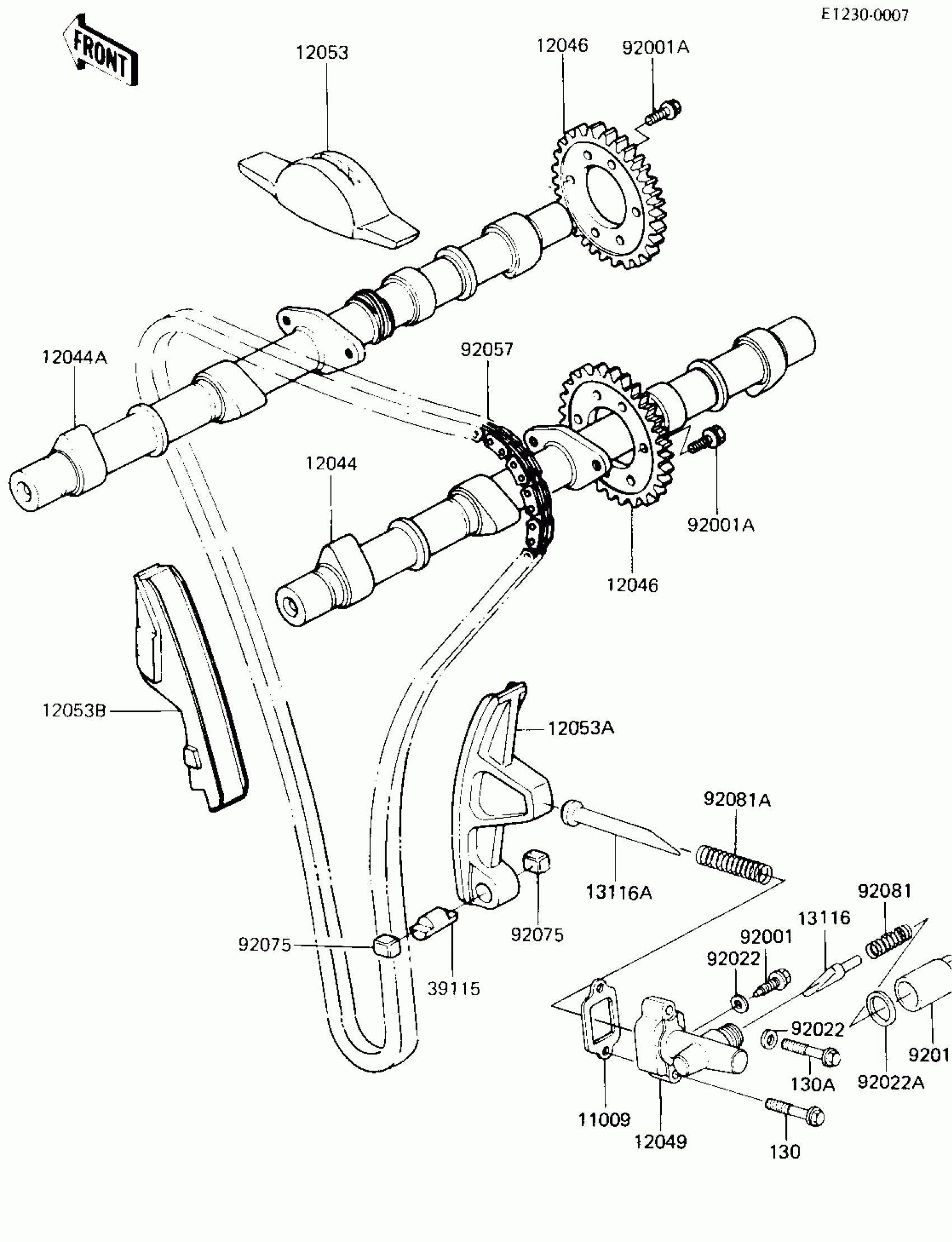

Kawasaki GPz 750 Turbo CAMSHAFTS/CHAIN/TENSIONER Diagram

Description

Price

11009

GASKET,TENSIONER

11009-1980

$4.18

12044

CAM SHAFT,INLET

12044-012

Unavailable

12044A

CAM SHAFT,EXHAUST

12044-013

Unavailable

12046

SPROCKET,CAMSHAFT,46T

12046-1021

$83.44

12049

TENSIONER,CAM CHAIN

12049-1015

$52.76

12053

GUIDE-CHAIN,UPP

12053-1038

$36.41

12053A

GUIDE-CHAIN,RR

12053-1054

$45.71

12053B

GUIDE-CHAIN,FR

12053-1058

$39.58

13116

ROD-PUSH,TENSIONER

13116-1012

Unavailable

13116A

ROD-PUSH,TENSIONER

13116-1036

$59.02

39115

SHAFT-IDLER,CAM CHAIN GUIDE

12052-003

$11.22

92001

BOLT,TENSIONER ADJUST

92001-1155

$4.68

92001A

BOLT,FLANGED,6X11

92003-208

$3.29

92015

NUT,CAP,18MM

92015-1100

Unavailable

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,18.3X24X1.4

92022-1175

$3.92

92057

CHAIN,CAM,82RH2015-150L

92057-1319

$131.90

92075

DAMPER,CAM CHAIN GUIDE

92075-1314

$13.00

92081

SPRING,TENSIONER

92081-1302

$4.85

92081A

SPRING,TENSIONER

92081-1374

$4.22

130

BOLT-FLANGED,6X30

130G0630

Unavailable

130A

BOLT,FLANGED,6X35

130H0635

Unavailable
