1985 Kawasaki GPZ 750 Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1985 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

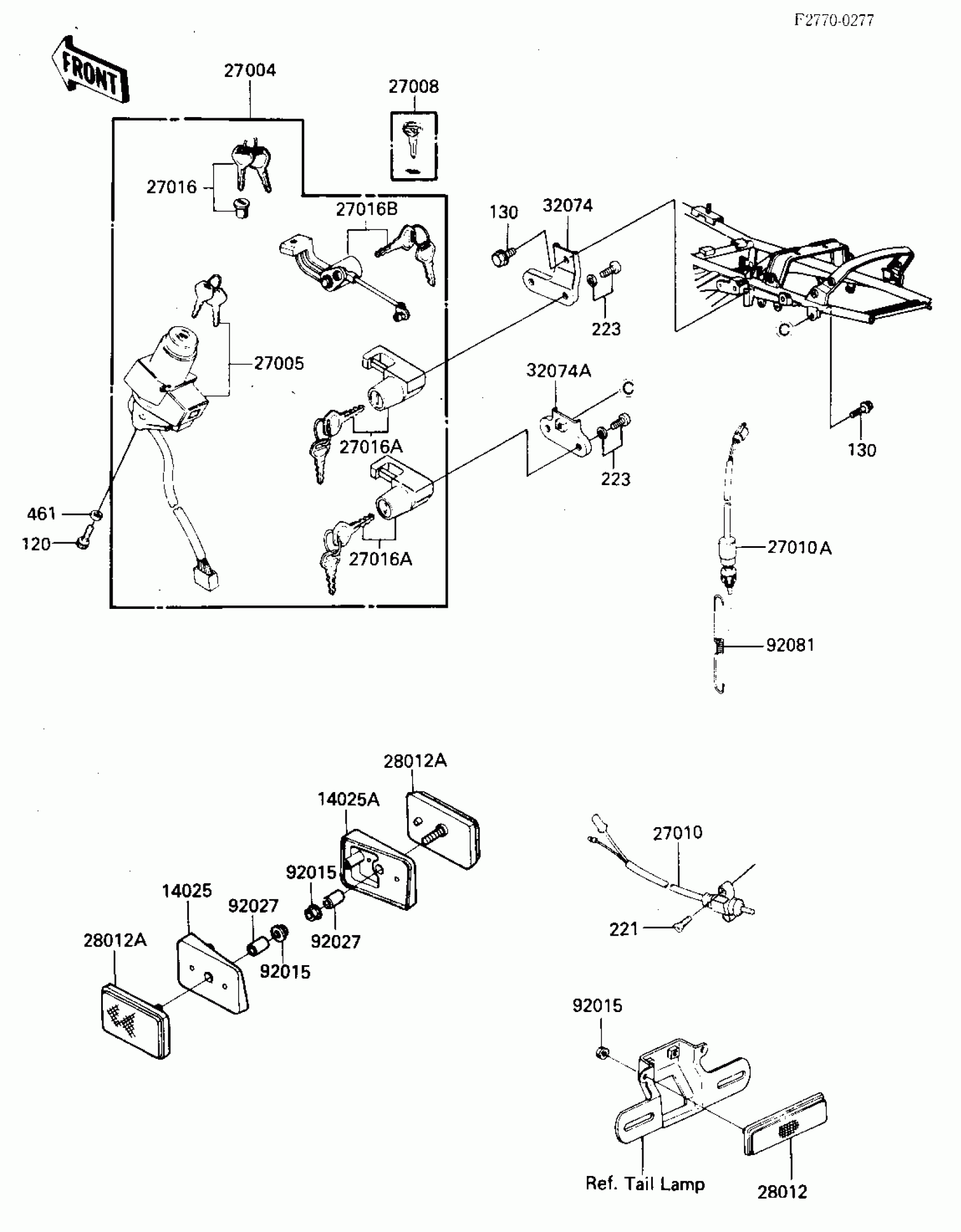

1985 Kawasaki GPZ 750 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14025

COVER,REFLECTOR,FR

14025-1886

1
Out of stock

14025A

COVER,REFLECTOR,FR

14025-1887

1
Out of stock

27004

SWITCH-ASSY

27004-5211

1

$484.57

In stock

27005

1

$196.81

In stock

27008

KEY-LOCK,BLANK

27008-1103

1

$18.83

In stock

27010

SWITCH,SIDE STAND

27010-1065

1

$73.06

In stock

27010A

SWITCH,BRAKE LAMP

27010-1093

1

$27.22

In stock

27016

LOCK-ASSY,FUEL TANK

27016-5068

1

$101.48

In stock

27016A

LOCK-ASSY,HELMET

27016-5070

1
Out of stock

27016B

LOCK-ASSY,SEAT

27016-5071

1
Out of stock

28012

REFLECTOR-REFLEX,RR

28012-1005

1
Out of stock

28012A

REFLECTOR-REFLEX,FR

28012-1052

1
Out of stock

32074

1

$11.58

In stock

32074A

1

$11.58

In stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92027

COLLAR,5.6X8X14.5

92027-1789

1

$4.42

In stock

92081

1

$23.12

In stock

120

UNAVAILABLE IN PRICE BOOK

120A0616

1
Out of stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

221

SCREW-CSK-CROS

221C0520

1

$3.24

In stock

223

SCREW-PAN-WS-CROS

223B0508

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
