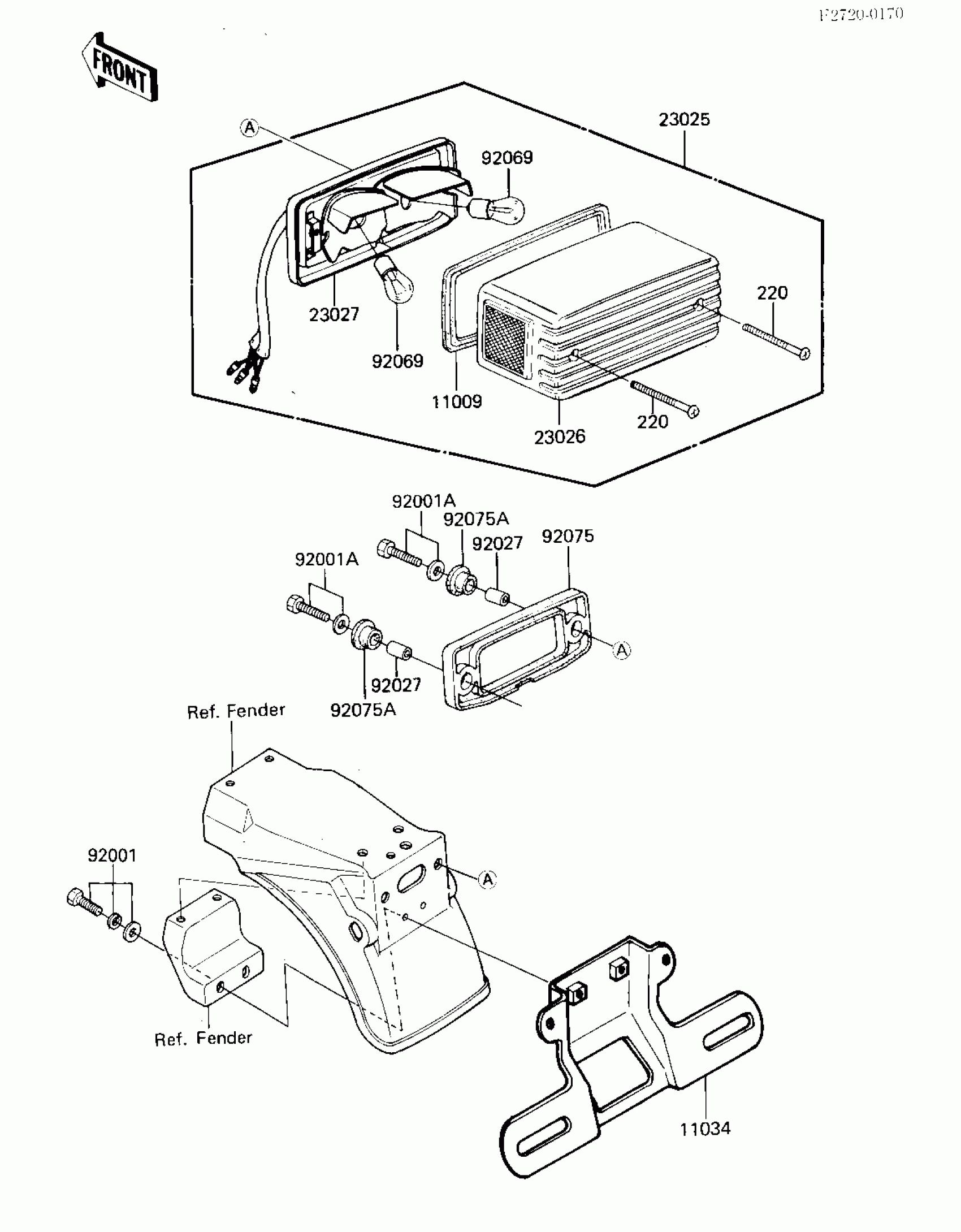

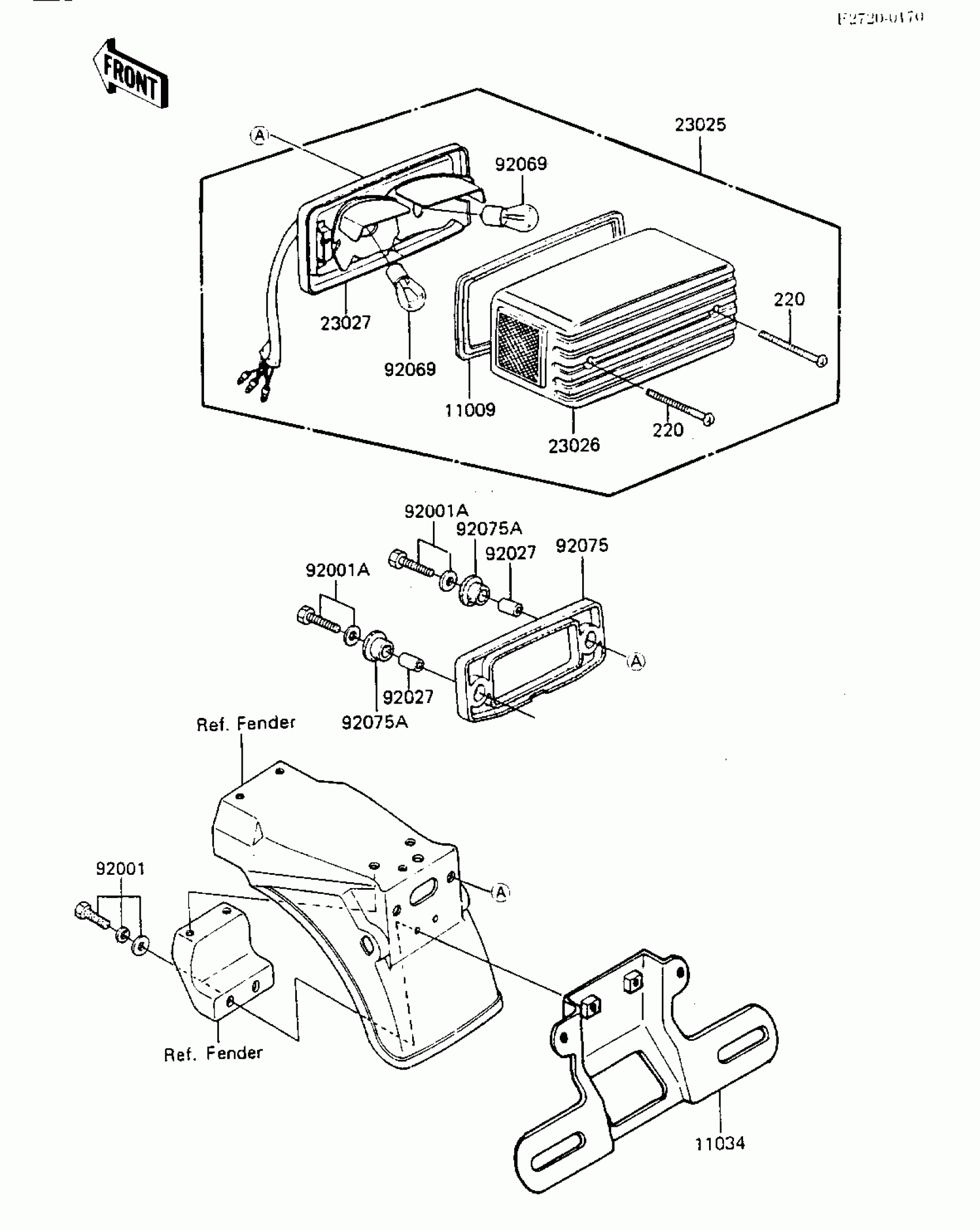

Kawasaki GPz 750 TAILLIGHT Diagram

Description

Price

11009

GASKET,TAIL LAMP

11009-1221

$14.05

11034

BRACKET

11034-1922

Unavailable

23025

LAMP-TAIL,BLACK

23025-1038

Unavailable

23026

LENS,TAIL LAMP

23026-1021

$141.52

23027

BODY-COMP-TAIL LAMP,B

23027-1025

$152.55

92001

BOLT,6X20

92001-1765

$4.10

92001A

BOLT,6X30

92001-1776

$4.25

92027

COLLAR,6.8X10X21

92027-1400

Unavailable

92069

BULB,12V 27/8W

92069-059

$6.19

92075

DAMPER

92075-1282

Unavailable

92075A

DAMPER,TAIL LAMP

92075-1367

Unavailable

220

SCREW-PAN-CROS

220C0465

Unavailable
