1984 Kawasaki GPZ 750 Battery Case/tool Case Diagram

← All diagrams

Find the part on the Battery Case/tool Case diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

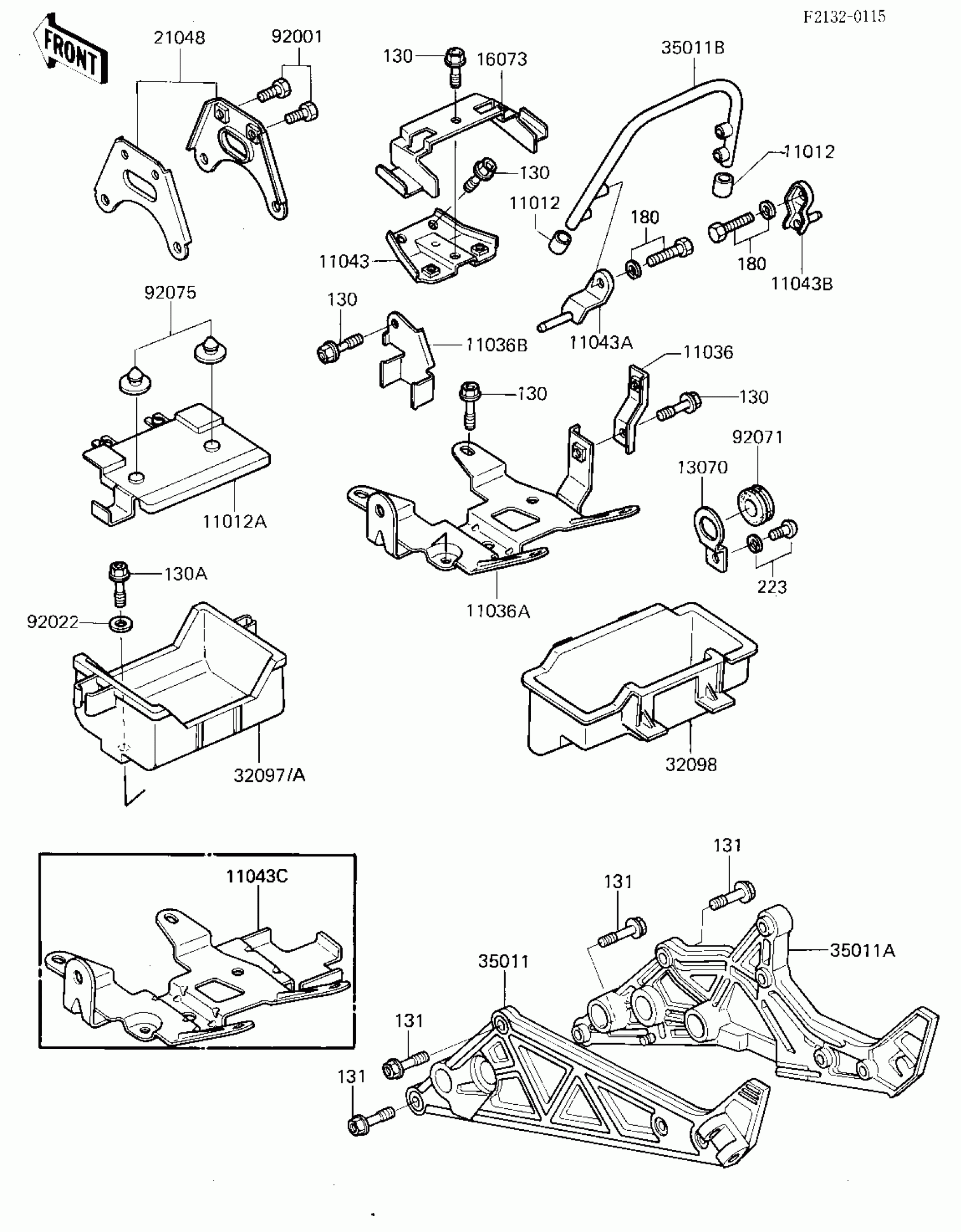

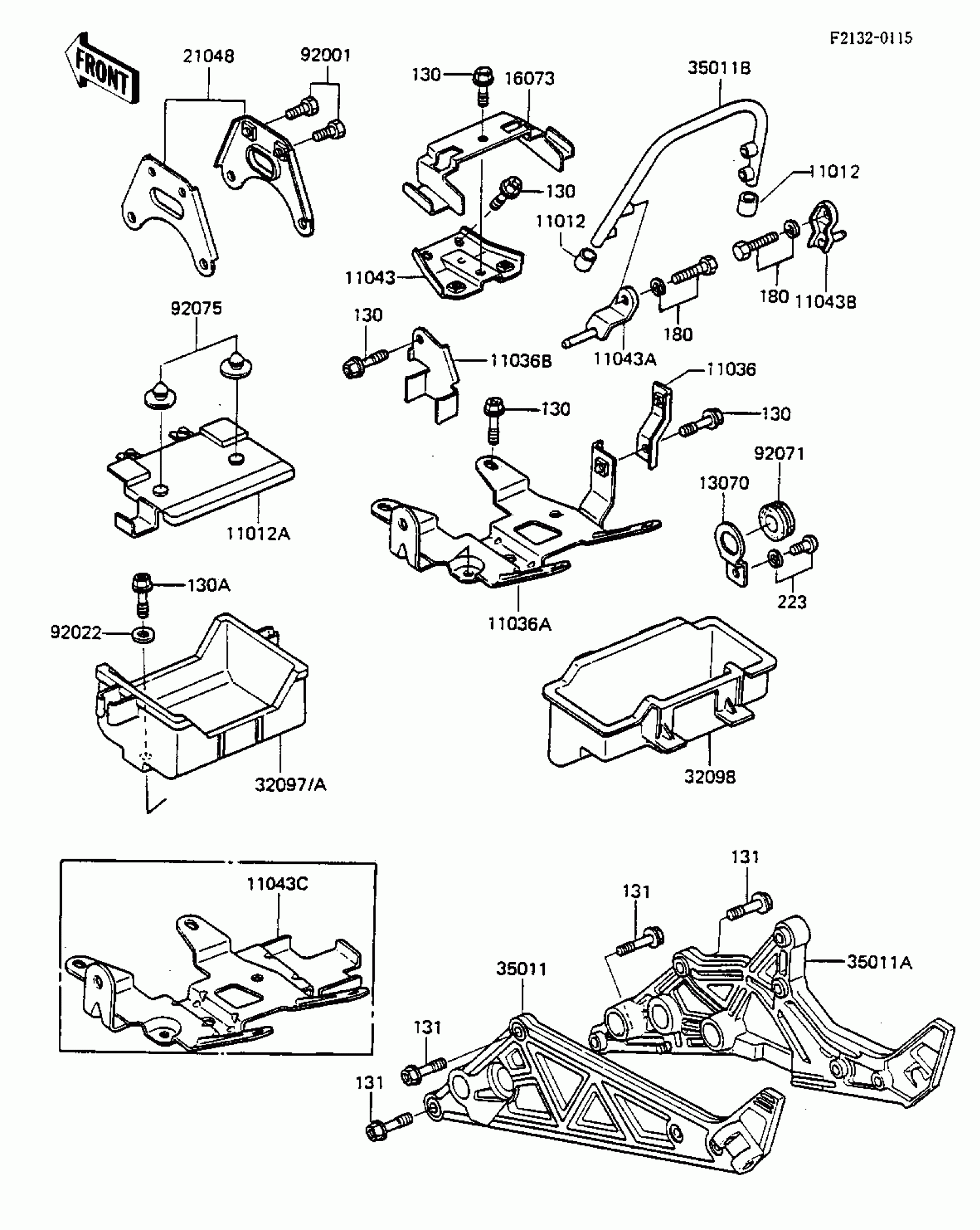

1984 Kawasaki GPZ 750 Battery Case/tool Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,RR STAY END

11012-1290

1

$4.47

In stock

11012A

CAP,BATTERY

11012-1292

1
Out of stock

11036

BRACKET-A,RESERVOIR

11036-1345

1
Out of stock

11036A

BRACKET-A,ELECTRO BAS

11036-1967

1
Out of stock

11036B

BRACKET-A,MAGNETIC SW

11036-1968

1
Out of stock

11043

BRACKET-B,REGULATOR

11043-1129

1
Out of stock

11043A

BRACKET-B,RR STAY,LH

11043-1144

1
Out of stock

11043B

BRACKET-B,RR STAY,RH

11043-1145

1
Out of stock

11043C

BRACKET,ELECTRO BASE

11043-1427

1
Out of stock

13070

GUIDE,SHOCKABSORBER

13070-1085

1
Out of stock

16073

INSULATOR,REGULATOR

16073-1018

1

$10.05

In stock

21048

PLATE-COIL

21048-1006

1

$14.63

In stock

32097

CASE-BATTERY

32097-1065

1

$80.84

In stock

32097A

CASE-BATTERY

32097-1105

1

$25.15

In stock

32098

CASE-TOOL

32098-1028

1

$36.74

In stock

35011

STAY,MUFFLER,LH

35011-1160

1

$313.40

In stock

35011A

STAY,MUFFLER,RH

35011-1161

1

$313.40

In stock

35011B

STAY,RR

35011-1176

1

$203.86

In stock

92001

BOLT,6X10

92001-137

1

$5.66

In stock

92022

WASHER-PLAIN,7MM

92022-240

1
Out of stock

92071

GROMMET

92071-056

1

$3.39

In stock

92075

DAMPER,RUBBER

92075-078

1

$3.49

In stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT

130B0612

1
Out of stock

131

BOLT-FLANGED,10X25,BL

131J1025

1
Out of stock

180

BOLT-UPSET-WS

180G0630

1
Out of stock

223

1

$0.93

In stock
