1984 Kawasaki GPZ 750 Generator/regulator Diagram

← All diagrams

Find the part on the Generator/regulator diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

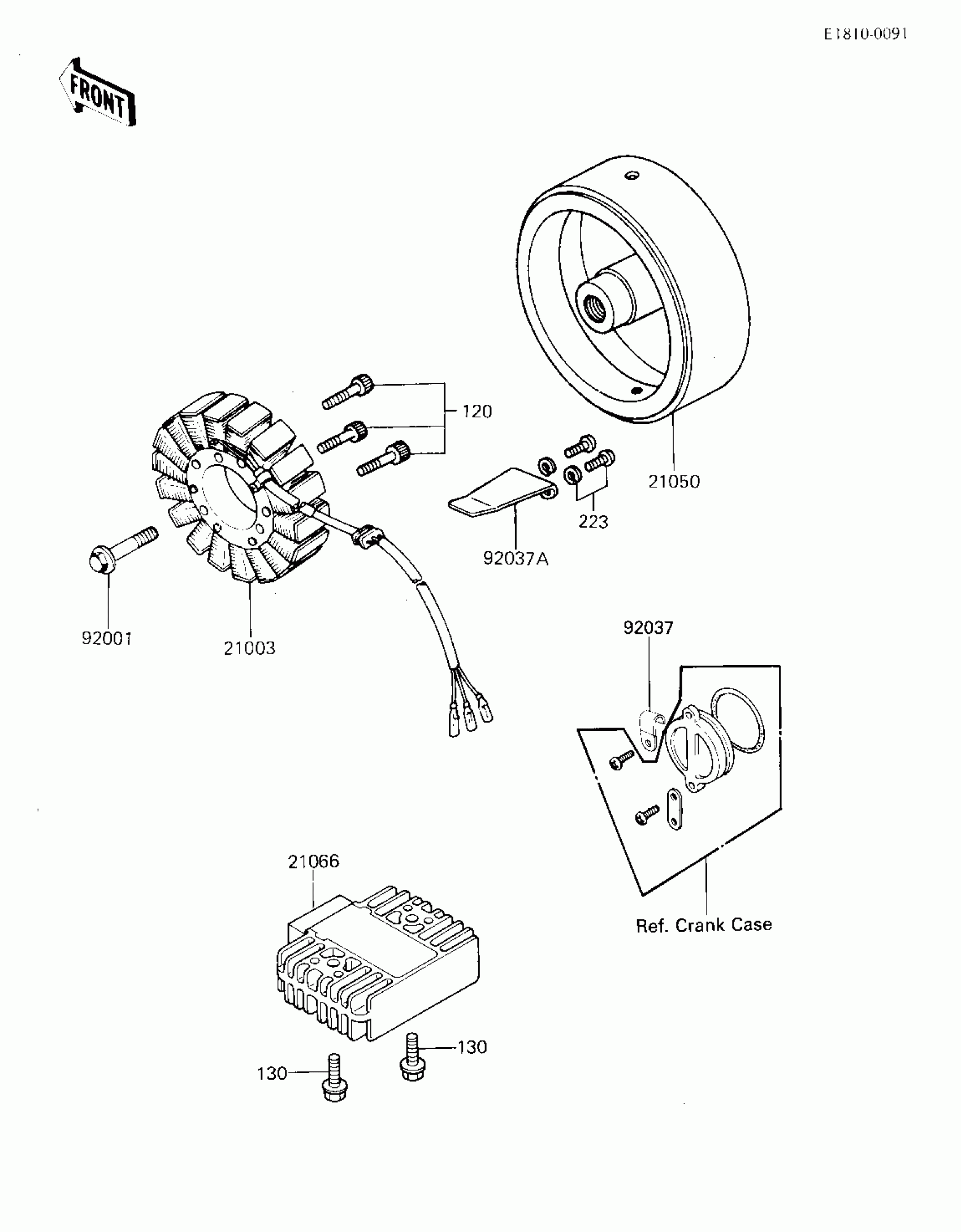

1984 Kawasaki GPZ 750 Generator/regulator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-1083

1
Out of stock

21050

FLYWHEEL,GENERATOR

21050-1041

1

$348.43

In stock

21066

REGULATOR-VOLTAGE

21066-1038

1

$255.77

In stock

92001

BOLT,FLANGED,12X40

92001-1146

1

$9.58

In stock

92037

1

$3.75

In stock

92037A

1

$4.25

In stock

120

BOLT-SOCKET,5X30

120P0530

1
Out of stock

130

BOLT,FLANGED,6X20

130B0620

1
Out of stock

223

SCREW-PAN-WS-CROS,5X12

223B0512

1
Out of stock
