1984 Kawasaki GPZ 750 Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

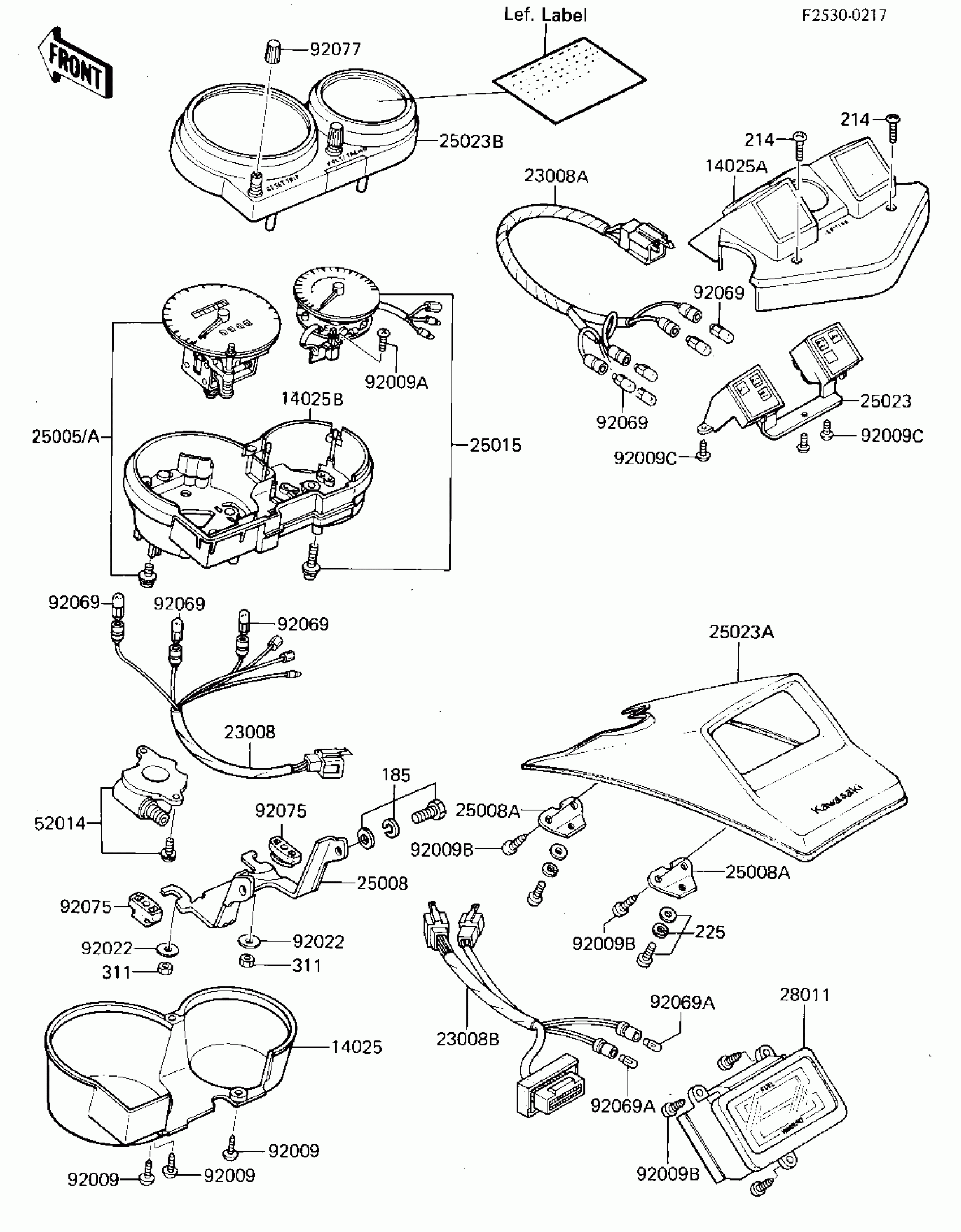

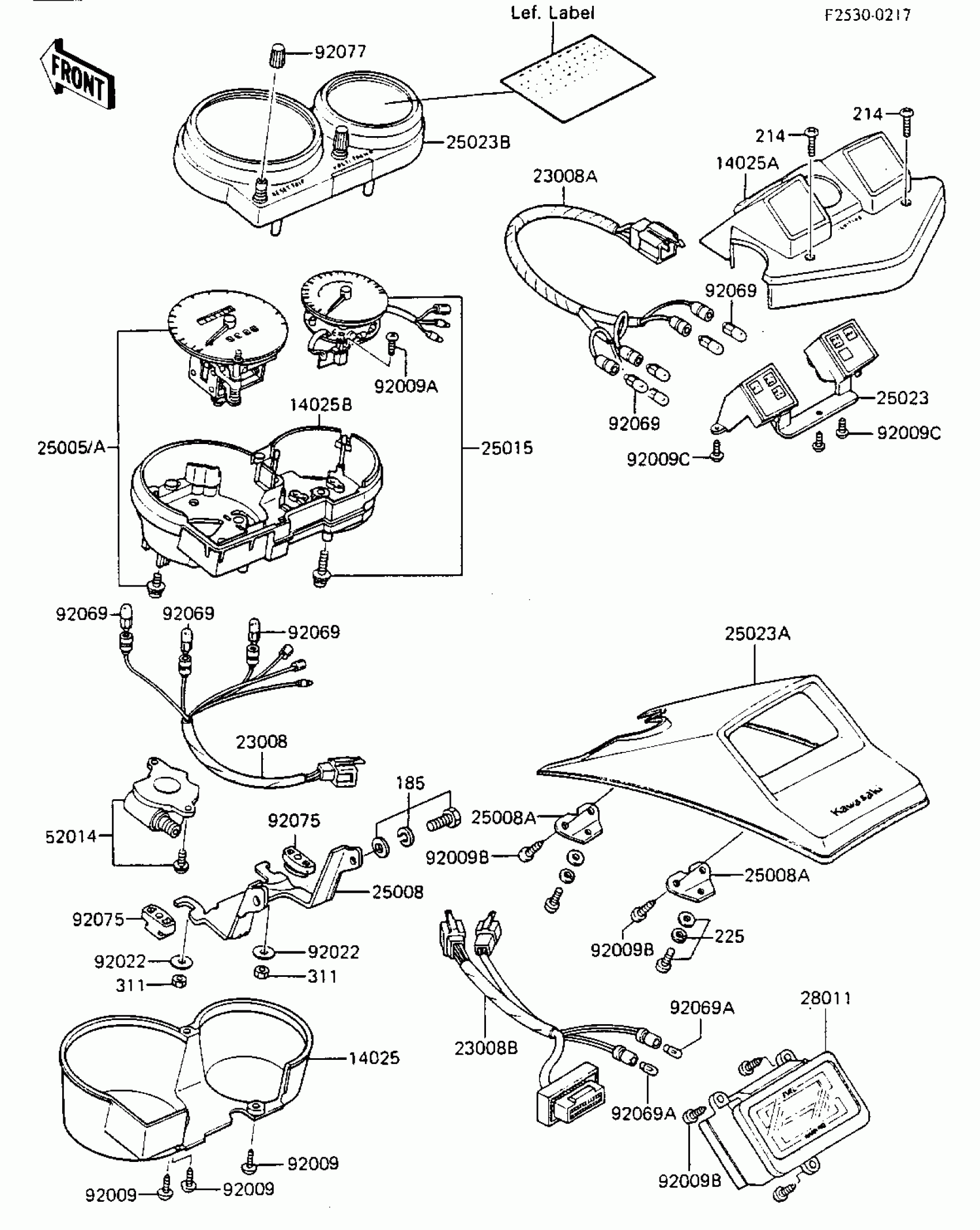

1984 Kawasaki GPZ 750 Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14025

COVER,METER CASE,LWR

14025-1691

1
Out of stock

14025A

COVER,PILOT BOX

14025-1693

1
Out of stock

14025B

COVER,METER HOUSING

14025-1791

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1188

1
Out of stock

23008A

1

$74.54

In stock

23008B

SOCKET-ASSY,FUEL

23008-1201

1
Out of stock

25005

SPEEDOMETER,MPH

25005-1218

1

$305.31

In stock

25005A

SPEEDOMETER,KPH (Canada)

25005-1219

1
Out of stock

25008

BRACKET-METER

25008-1060

1
Out of stock

25008A

BRACKET-METER,FUEL TA

25008-1103

1
Out of stock

25015

1

$343.14

In stock

25023

1

$152.27

In stock

25023A

1

$152.83

In stock

25023B

COVER-METER CASE,UPP

25023-1114

1
Out of stock

28011

METER,FUEL&WARNING

28011-1042

1

$722.32

In stock

52014

ELBOW,SPEEDOMETER GEAR

52014-1006

1
Out of stock

92009

SCREW,4X16,BLACK

92009-1158

1
Out of stock

92009A

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009B

SCREW,TAPPING,4X12

92009-1254

1
Out of stock

92009C

SCREW,TAPPING,3X12

92009-1255

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92069

BULB,12V 3W,T7

92069-1020

1
Out of stock

92069A

BULB,12V1.4W T-5

92069-1051

1
Out of stock

92075

1

$12.20

In stock

92077

KNOB,RESET TRIP

92077-1017

1

$22.78

In stock

185

1

$4.10

In stock

214

SCREW-PAN+-

214C0430

1
Out of stock

225

SCREW-PAN-WSP-CROS

225B0514

1
Out of stock

311

NUT-HEX

311B0500

1

$0.51

In stock
