1985 Kawasaki GPZ 750 Fairing Lowers Diagram

← All diagrams

Find the part on the Fairing Lowers diagram for your 1985 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

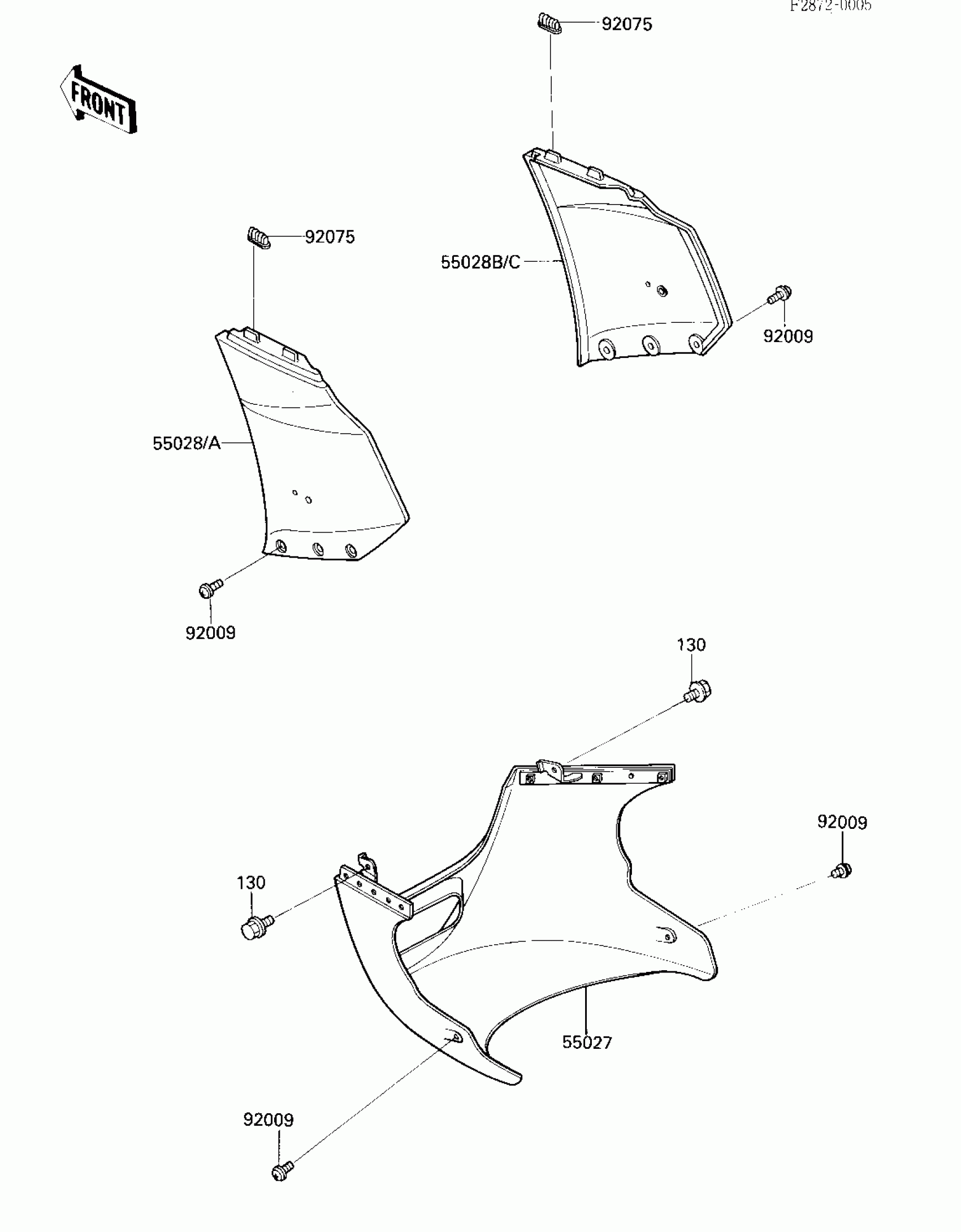

1985 Kawasaki GPZ 750 Fairing Lowers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

55027

COWLING-ASSY,LWR,F.BL

55027-1063-21

1

$350.65

In stock

55028

COWLING,CNT,LH,F.RED (Canada)

55028-1083-B1

1
Out of stock

55028A

COWLING,CNT,LH,EBONY

55028-1083-H8

1
Out of stock

55028B

COWLING,CNT,RH,F.RED (Canada)

55028-1084-B1

1
Out of stock

55028C

COWLING,CNT,RH,EBONY

55028-1084-H8

1

$235.25

In stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92075

DAMPER,COWLING UPPER

92075-1565

1
Out of stock

130

BOLT-FLANGED,6X12

130C0612

1
Out of stock
← Fairing Fenders →
