1984 Kawasaki GPZ 750 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

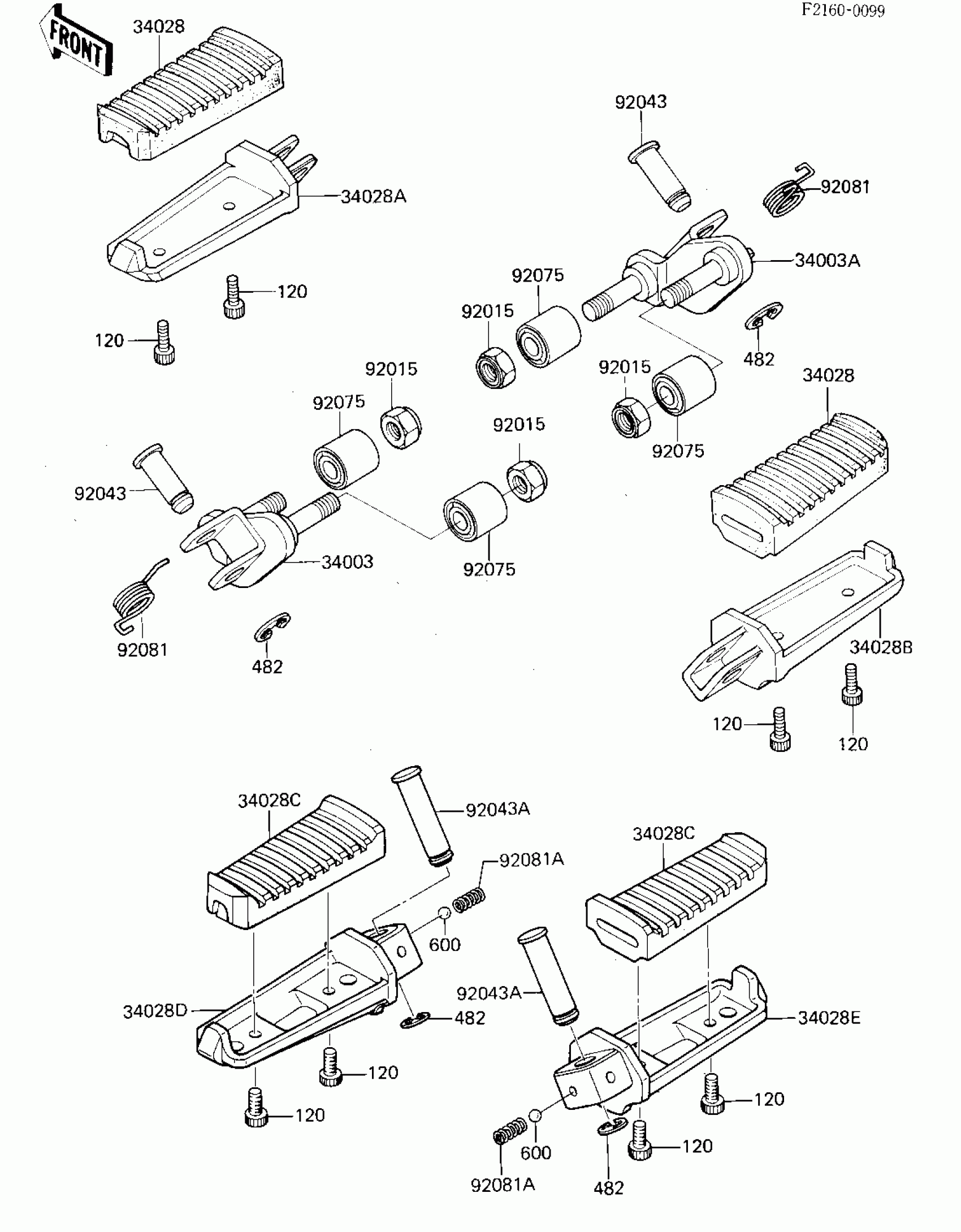

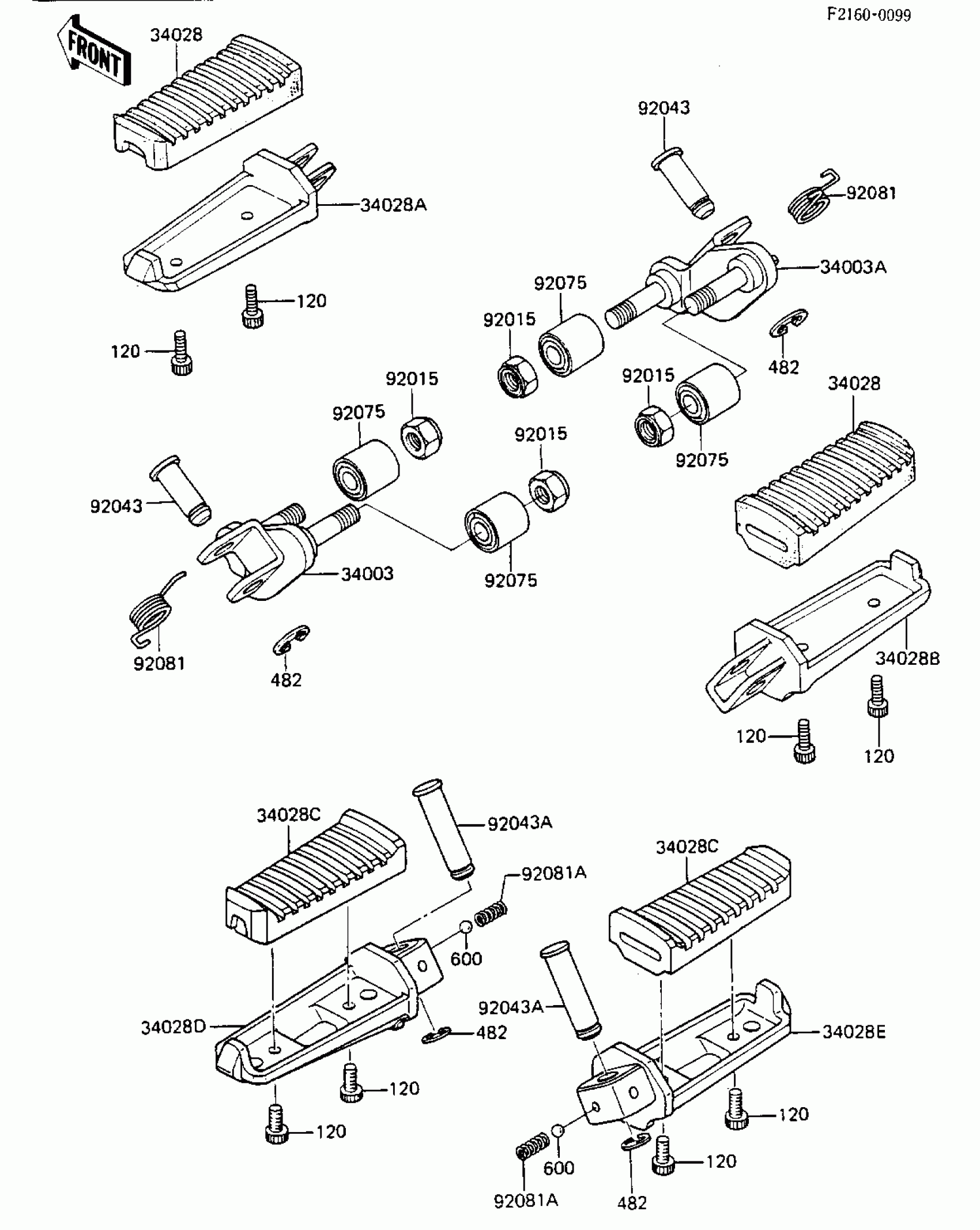

1984 Kawasaki GPZ 750 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,FR,LH

34003-1162

1

$88.19

In stock

34003A

HOLDER-STEP,FR,RH

34003-1163

1

$80.50

In stock

34028

STEP,FR,RUBBER

34028-1057

1
Out of stock

34028A

STEP,FR,LH

34028-1058

1

$77.70

In stock

34028B

STEP,FR,RH

34028-1059

1

$86.79

In stock

34028C

STEP,RR,RUBBER

34028-1060

1

$21.98

In stock

34028D

STEP,RR,LH

34028-1061

1
Out of stock

34028E

STEP,RR,RH

34028-1062

1
Out of stock

92015

NUT,LOCK,10MM

92019-021

1

$4.83

In stock

92043

PIN,12X37

92043-1144

1

$8.90

In stock

92043A

PIN,12X42.5

92043-1145

1

$9.27

In stock

92075

DAMPER,STEP HOLDER

92075-1411

1
Out of stock

92081

SPRING,STEP RETURN

92144-1568

1

$5.15

In stock

92081A

SPRING,COIL,STEP,RR

92081-1588

1
Out of stock

120

BOLT-SOCKET,5X14

120Z0514

1
Out of stock

482

CIR CLIP

482K0100

1

$0.69

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock
