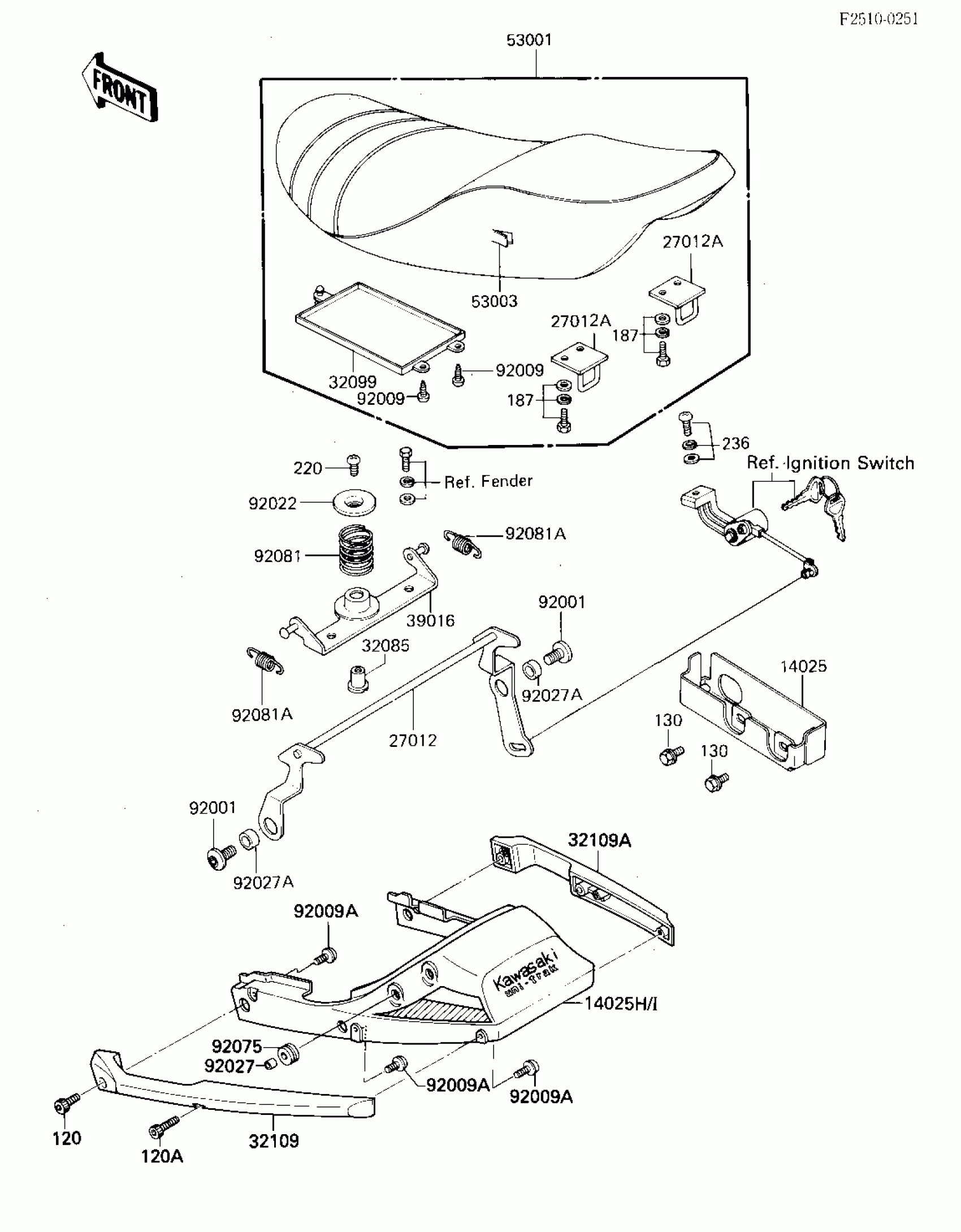

Kawasaki GPz 750 SEAT/SEAT COVER Diagram

#

Description
Price

14025

COVER,SEAT LOCK

14025-1656

Unavailable

14025E

COVER,SEAT,F.RED

14025-5136-B1

Unavailable

14025F

COVER,SEAT,G.SILVER

14025-5136-F2

Unavailable

27012

HOOK,SEAT LOCK

27012-1039

$36.35

27012A

HOOK,SEAT

53008-021

$10.88

32085

STOPPER,SPRING

32085-1130

$6.27

32099

CASE,MANUAL

32099-011

$12.64

32109

GRIP-FRAME,SEAT,LH

32109-1046

$183.96

32109A

GRIP-FRAME,SEAT,RH

32109-1047

$183.96

39016

BRACKET-SPRING MOUNT,

39016-1003

$12.12

53001A

SEAT-ASSY,DUAL

53001-1417

Unavailable

53003A

LEATHER,SEAT

53003-1102

Unavailable

92001

BOLT,8X16

92001-1841

Unavailable

92009

SCREW,TAPPING,5X8

92009-1043

$4.24

92009A

SCREW,SEAT COVER

92009-1186

$4.32

92022

WASHER,SEAT

92022-1411

Unavailable

92027

COLLAR,6.8X10X8.5

92027-129

$3.81

92027A

COLLAR,8.2X13X6

92027-1565

$1.61

92075

DAMPER

92075-1028

$3.57

92081

SPRING,SEAT REMOVER

92081-1579

Unavailable

92081A

SPRING,HOOK RETURN

92081-1580

$5.92

120

BOLT-SOCKET,8X25

120S0825

Unavailable

120A

BOLT-SOCKET,8X35

120S0835

Unavailable

130

BOLT-FLANGED,6X10

130B0610

Unavailable

187

BOLT 6X14

187B0614

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

236

SCREW-PAN-WSP-CROS

236B0612

Unavailable
