1984 Kawasaki GPZ 750 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

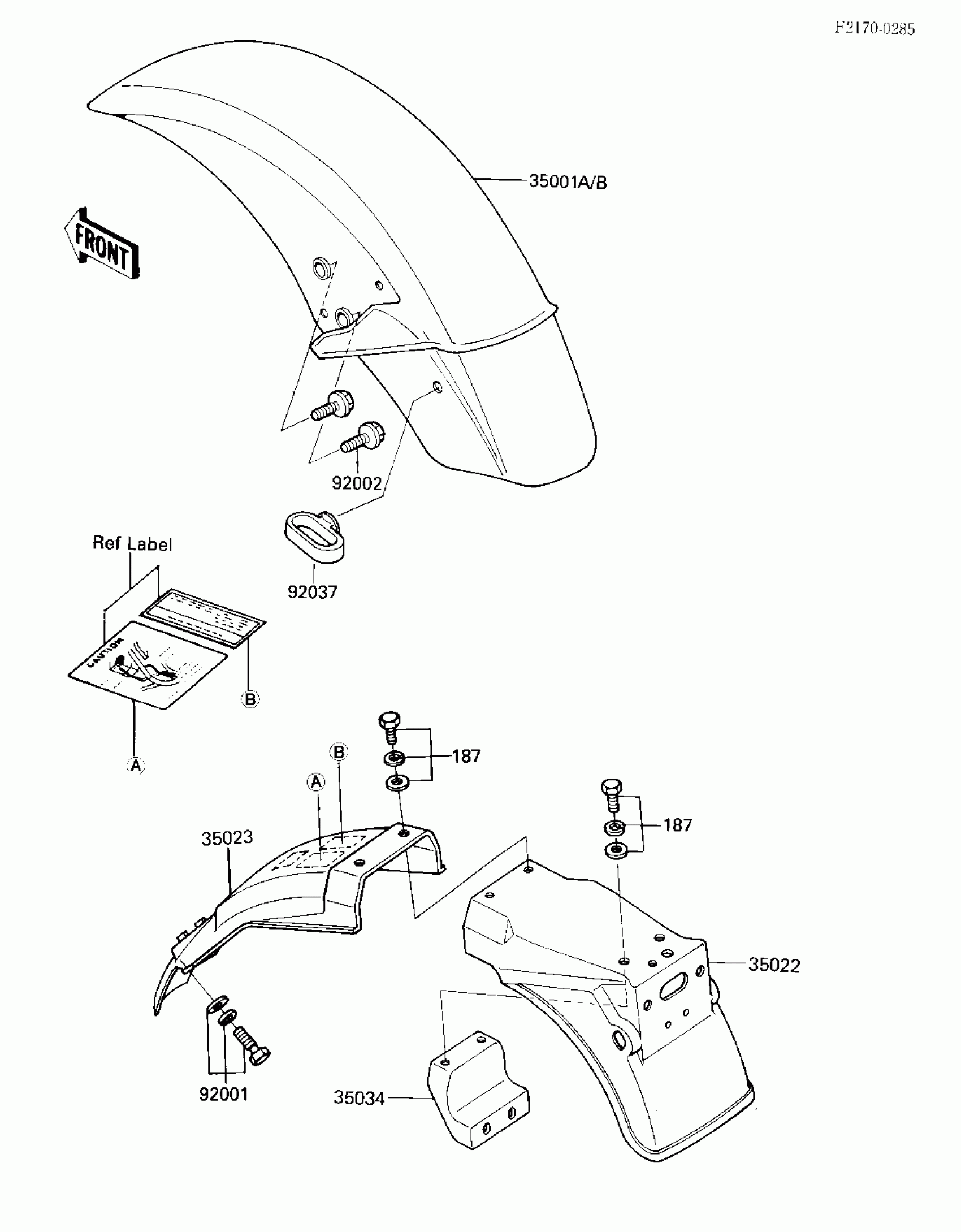

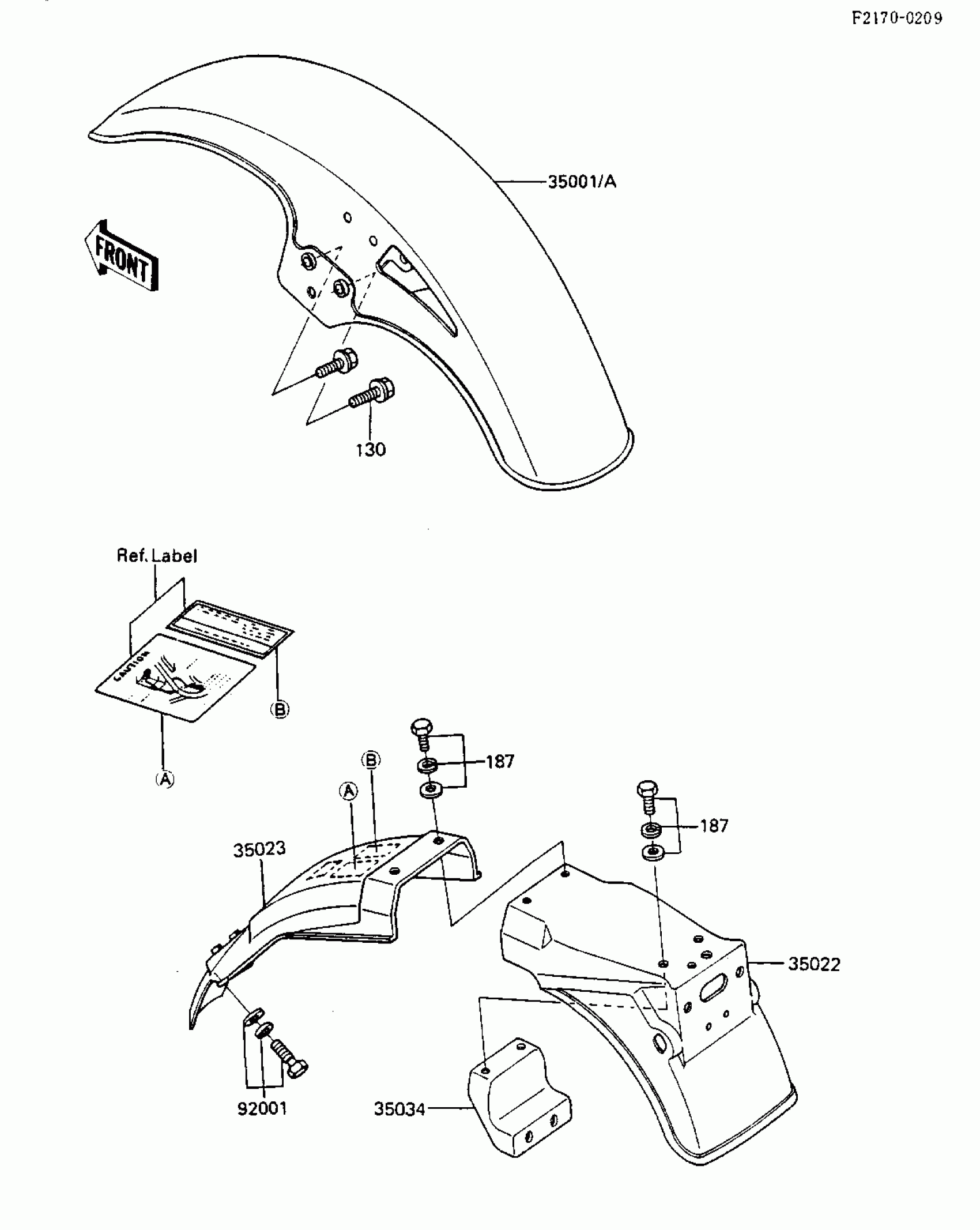

1984 Kawasaki GPZ 750 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35001

FENDER-ASSY-FRONT,F.R

35001-1046-B1

1
Out of stock

35001A

FENDER-ASSY-FRONT,G.S

35001-1046-F2

1
Out of stock

35022

FENDER-COMP-REAR,RR,B

35022-1115-6Z

1
Out of stock

35023

FENDER-REAR,FR

35023-1106

1
Out of stock

35034

REINFORCE,FENDER,RR

35034-1091

1
Out of stock

92001

BOLT,6X16

92001-1851

1
Out of stock

130

BOLT-FLANGED,8X20

130B0820

1
Out of stock

187

BOLT-UPSET-WSP

187B0620

1
Out of stock
