1984 Kawasaki GPZ 750 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

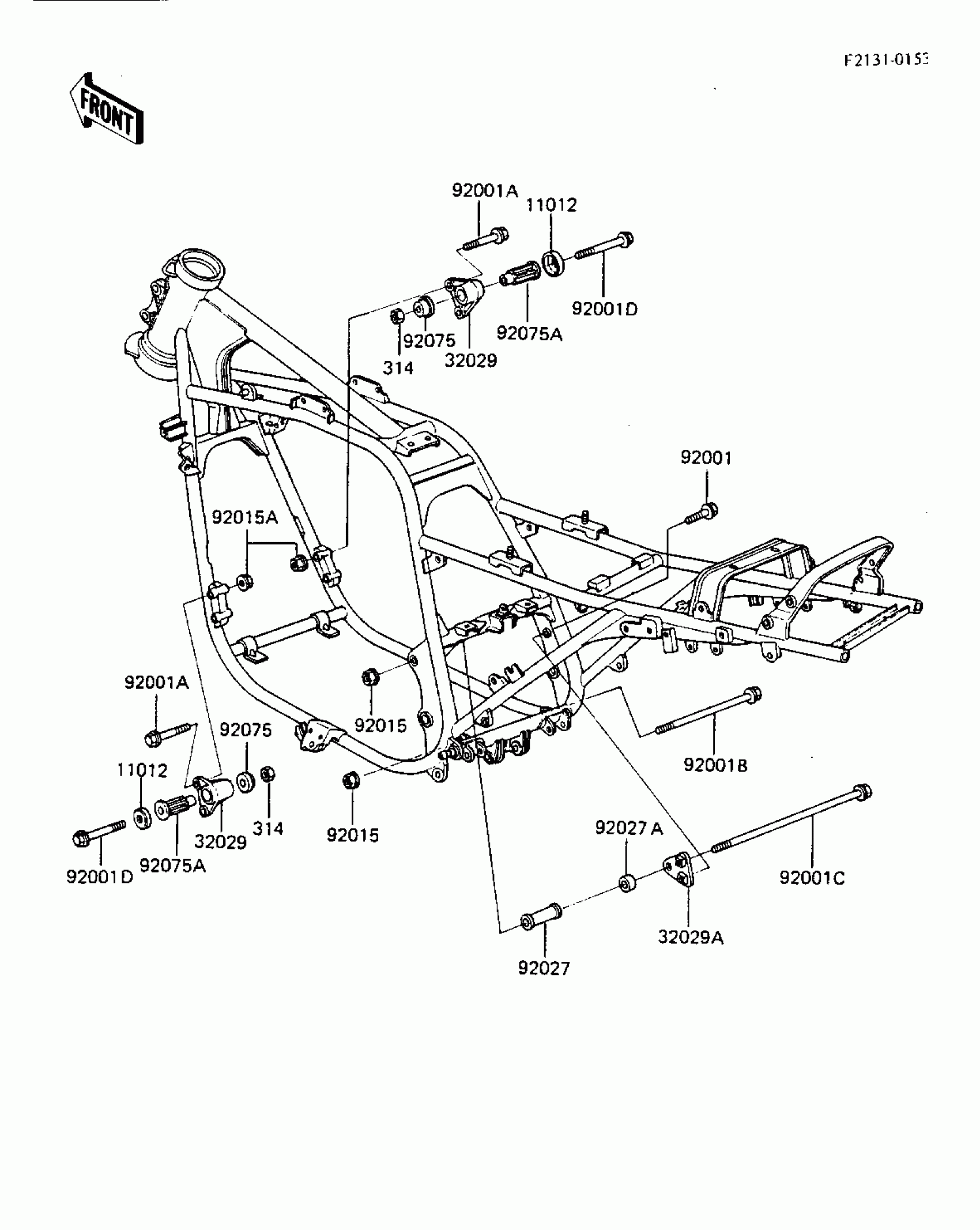

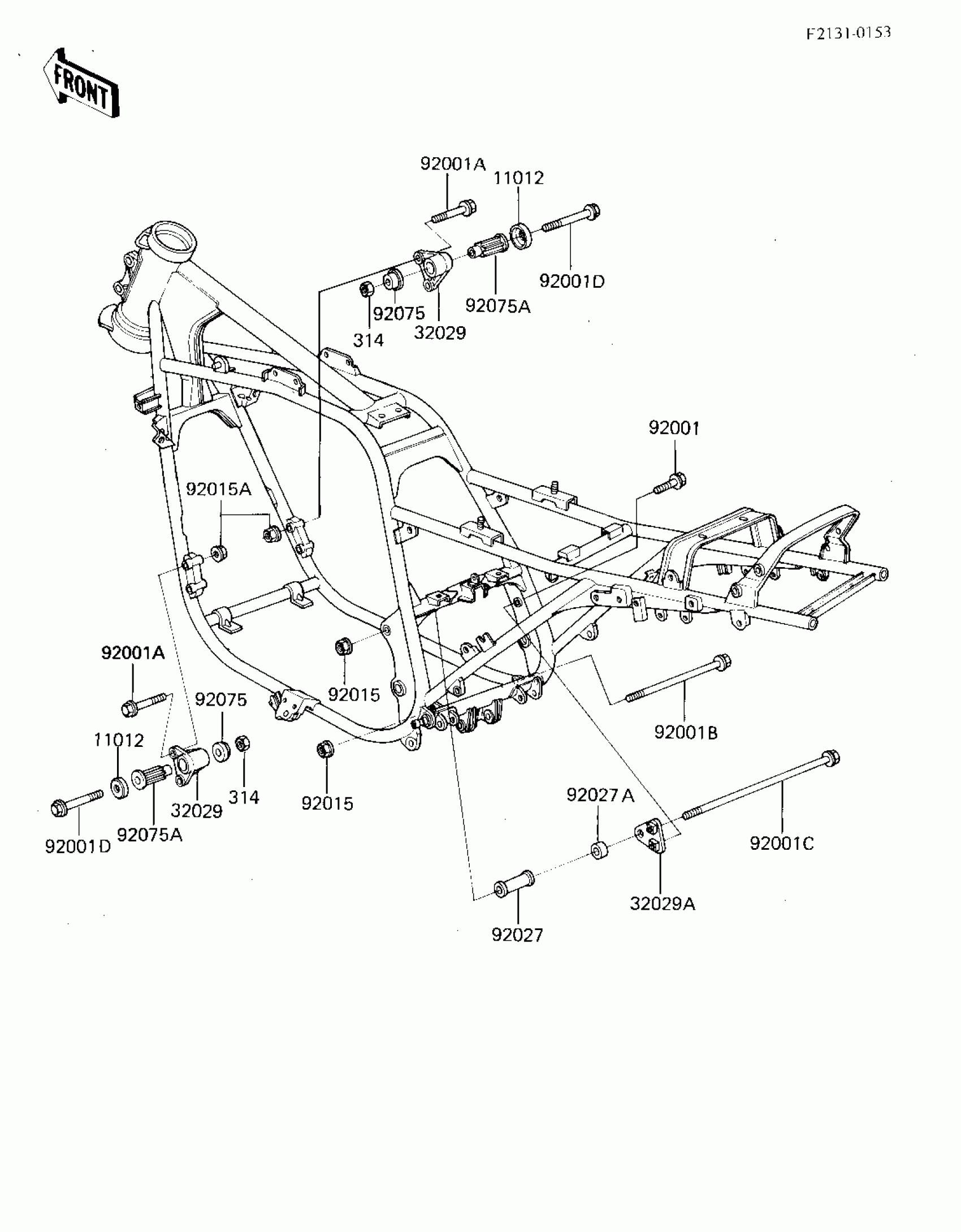

1984 Kawasaki GPZ 750 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,ENGINE BRACKET

11012-1228

1
Out of stock

32029

BRACKET-ENGINE,FR

32029-1254

1
Out of stock

32029A

BRACKET-ENGINE,RR

32029-1345

1
Out of stock

92001

BOLT,FLANGED,8X60,BLACK

92001-1615

1
Out of stock

92001B

BOLT,FLANGED,10X180

92001-1621

1
Out of stock

92001C

BOLT,10X290,BLACK

92001-1749

1
Out of stock

92001D

BOLT,FLANGED,10X115,BLACK

92001-1780

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92015A

NUT,FLANGED,8MM

92015-1408

1
Out of stock

92027

COLLAR,L=56.8

92027-1570

1
Out of stock

92027A

COLLAR,11X26X12.3

92027-1571

1
Out of stock

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

1
Out of stock

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

1
Out of stock

314

NUT-HEX-FINE,10MM,BLACK

314C1000

1
Out of stock
