1999 Yamaha Wave Runner GP800 (GP800X) Engine Hatch 2 Diagram

← All diagrams

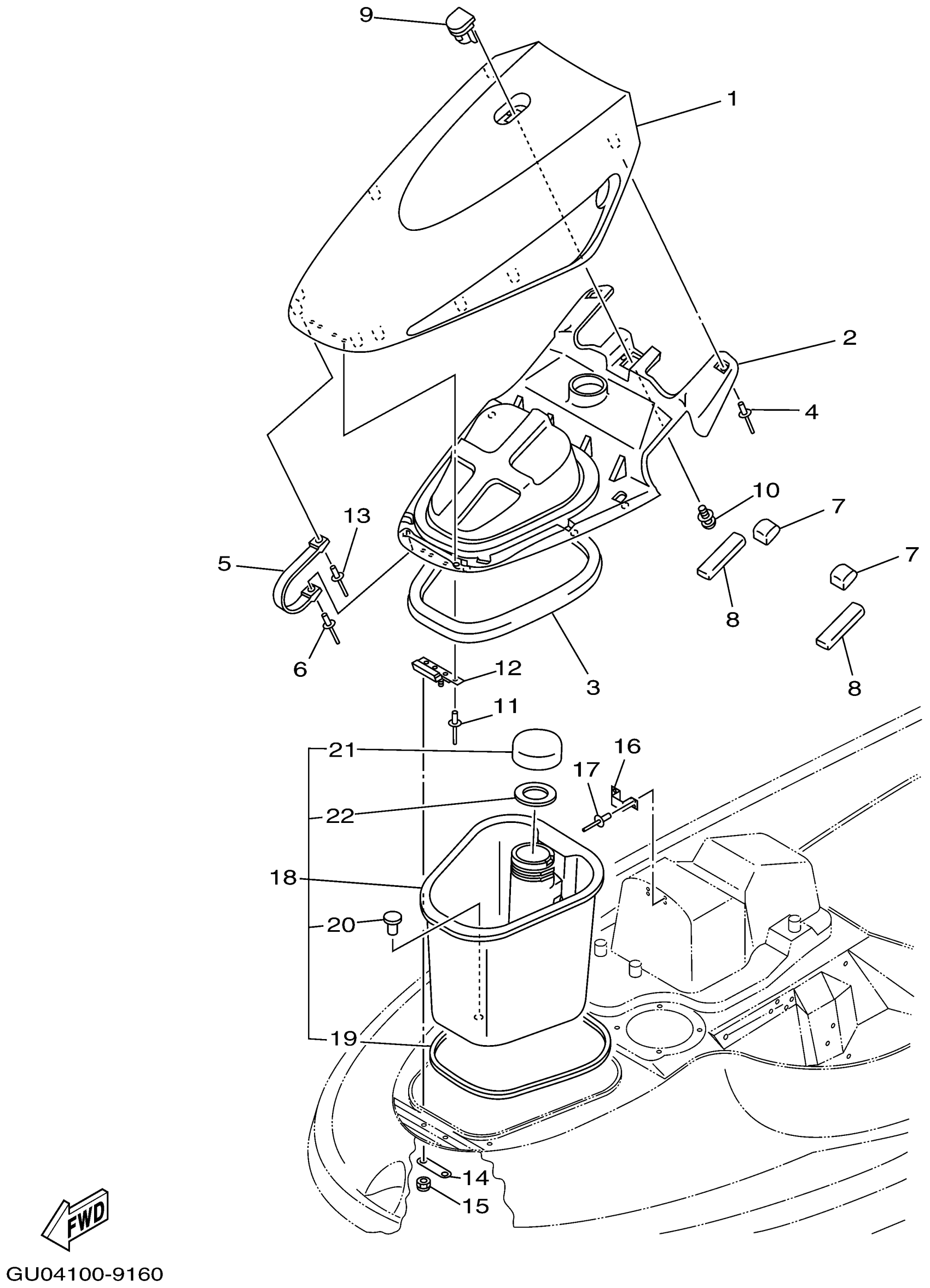

Find the part on the Engine Hatch 2 diagram for your 1999 Yamaha Wave Runner GP800 (GP800X), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Yamaha Wave Runner GP800 (GP800X) Engine Hatch 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID, ENGINE ROOM

GP7-U517B-20-P0

1
Out of stock

2

VENTILATOR COVER COMP., 2

GP7-U2103-00-00

1
Out of stock

3

PACKING 4

GP7-U266C-00-00

1
Out of stock

4

RIVET, BLIND

90267-48809-00

1

$2.38

In stock

5

SUPPORT, LID

GP7-6517P-01-00

1

$3.95

In stock

6

RIVET, BLIND

90267-489UE-00

1
Out of stock

7

DAMPER 1

GP7-U515D-02-00

1
Out of stock

8

DAMPER 2

GP7-U515E-00-00

1
Out of stock

9

LOCK, LID

F1K-6517C-00-00

1

$74.99

In stock

10

SCREW, WITH WASHER

90159-059U2-00

1
Out of stock

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

1

$3.32

In stock

12

HINGE, LID

GP7-6517D-10-00

1
Out of stock

13

RIVET, 1

F3J-U516R-00-00

1

$2.69

In stock

14

PLATE, HINGE LID

GP7-U518E-00-00

1
Out of stock

15

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

16

KEEP, LOCK

GP7-6517F-10-00

1

$11.99

In stock

17

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

18

BOW LOCKER ASSY

GP7-U475A-00-00

1
Out of stock

19

. PACKING, 6

GP7-U266E-03-00

1
Out of stock

20

. PLUG, BLIND

90605-502U1-00

1

$2.46

In stock

21

. CAP, CASE

EW2-U5912-01-00

1
Out of stock

22

PACKING, CASE

EW2-U5913-01-00

1
Out of stock
