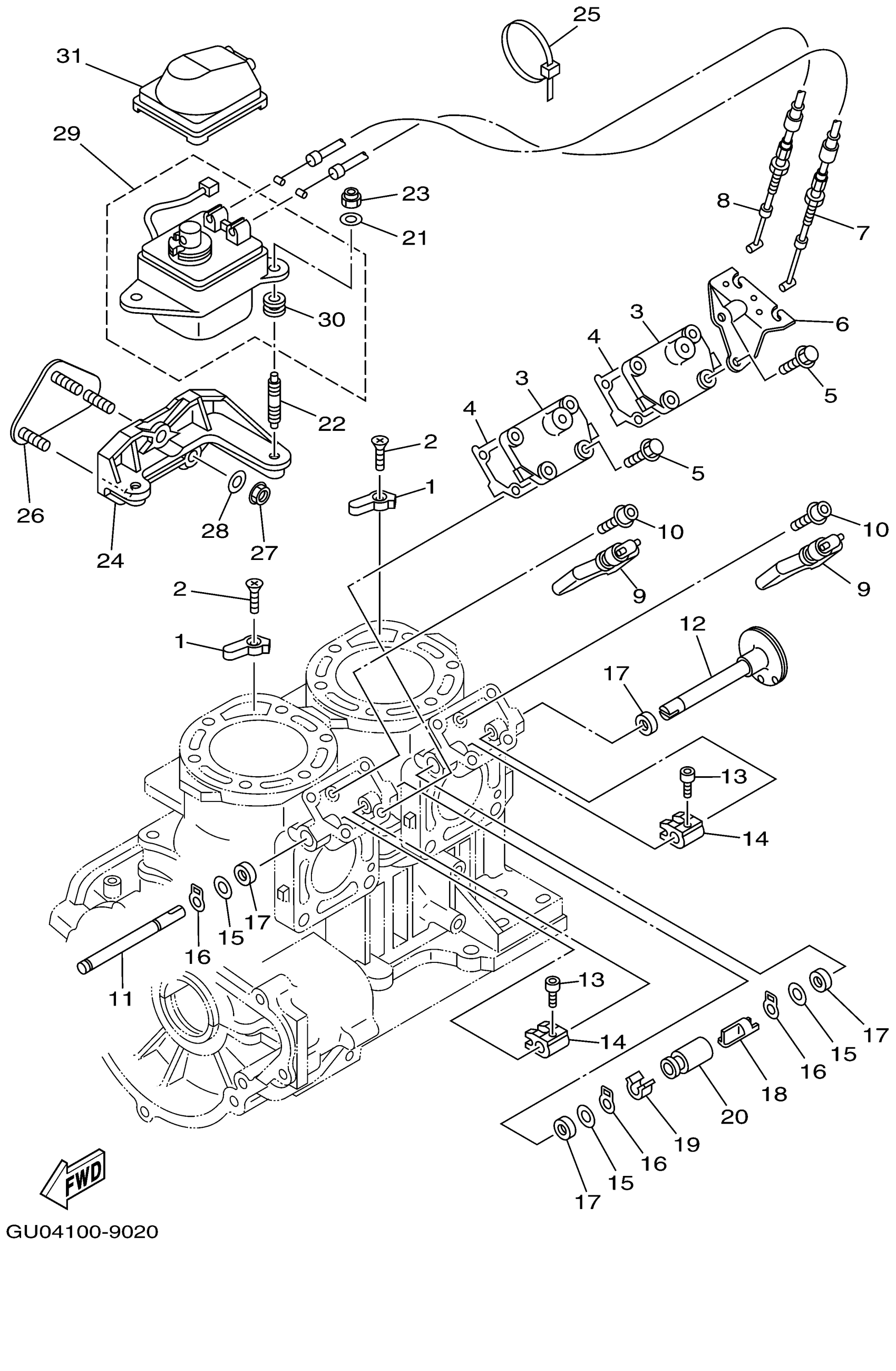

Yamaha GP800X (WAVE RUNNER GP800) GU04 1999 CYLINDER CRANKCASE 2 Diagram

#

Description
Price

1

ANODE

66E-11325-00-00

$10.36

2

SCREW, FLAT HEAD

98780-05020-00

$2.27

3

COVER

66E-1131M-01-00

Unavailable

4

GASKET, COVER

66E-1131B-02-00

$11.05

5

BOLT, WITH WASHER(61B)

97513-06525-00

$1.75

6

BRACKET 1

66E-11998-10-00

$245.44

7

CABLE, PULLEY 1

66E-1133E-10-00

$146.95

8

CABLE, PULLEY 2

66E-1133F-10-00

$137.86

9

VALVE ASSY.

66E-1131S-10-00

$216.65

10

BOLT,SOCKET

91380-05010-00

Unavailable

11

SHAFT 1

66E-1131V-00-00

Unavailable

12

PULLEY, SHAFT

66E-1132C-00-00

Unavailable

13

BOLT,SOCKET

91317-04008-00

$5.75

14

LEVER, LINK

60T-11832-00-00

$34.49

15

WASHER, PLATE

90201-08M09-00

Unavailable

16

CIRCLIP

93410-08M12-00

Unavailable

17

OIL SEAL

93109-08M07-00

$12.86

18

JOINT 1

66E-1131H-00-00

$4.55

19

JOINT 2

66E-1131J-10-00

$2.69

20

COVER, JOINT

66E-1131C-10-00

$2.95

21

WASHER, PLATE

90201-06020-00

Unavailable

22

BOLT, STUD

90116-06M67-00

Unavailable

23

NUT, SELF-LOCKING

95720-06300-00

$1.82

24

BRACKET, REFLECTOR 1

66E-85112-00-94

Unavailable

25

BAND

90601-200U1-00

$2.77

26

BRACKET, YPVS

GU0-6824E-00-00

Unavailable

27

. NUT, SELF-LOCKING

95720-08300-00

$3.33

28

WASHER, PLAIN

92990-08200-00

$2.36

29

SERVO MOTOR ASSY

66E-85820-11-00

$963.62

30

GROMMET 839774310000

90480-14023-00

Unavailable

31

COVER, WIRE

66E-85825-00-00

$23.99
