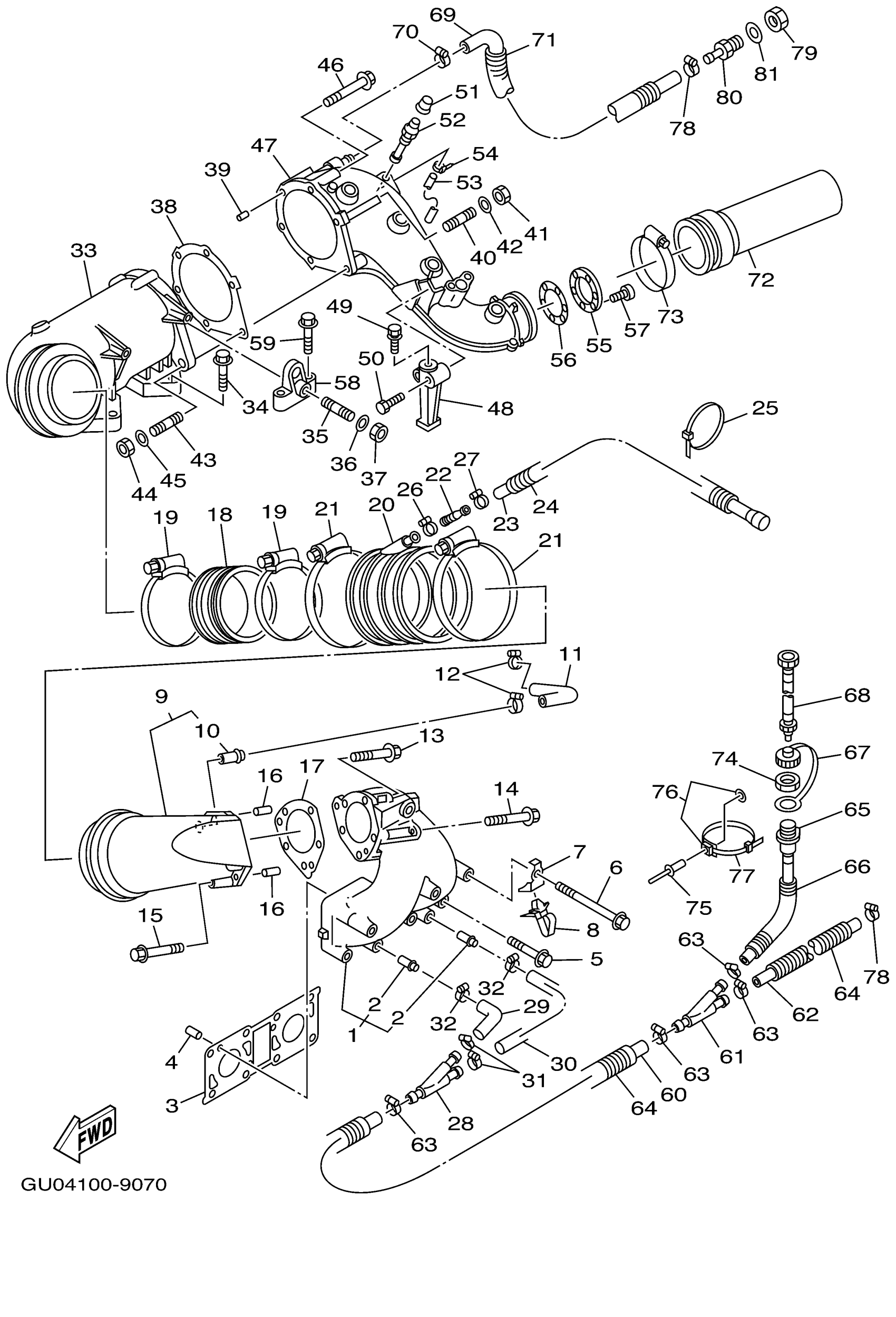

Yamaha GP800X (WAVE RUNNER GP800) GU04 1999 EXHAUST 1 Diagram
#
10
. NIPPLE
66E-51129-00-00
Unavailable
11
HOSE 1
66E-12576-00-00
Unavailable
13
BOLT, FLANGE
90105-08M83-00
Unavailable
15
BOLT, FLANGE
90105-08M66-00
Unavailable
19
HOSE CLAMP ASSY(62T)
90450-99M02-00
Unavailable
20
JOINT, EXHAUST 1
66E-14615-00-00
Unavailable
21
HOSE CLAMP ASSY
90450-99M18-00
Unavailable
23
HOSE 6
66E-12589-00-00
Unavailable
24
HOSE(65R)
90446-20M70-00
Unavailable
25
CLAMP(6E8)
90465-13M39-00
Unavailable
27
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
28
JOINT, HOSE 1
63M-12581-00-00
Unavailable
29
HOSE 2
66E-12577-00-00
Unavailable
30
HOSE 4
66E-12579-00-00
Unavailable
32
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
34
BOLT, WASHER BASED
90105-10M82-00
Unavailable
35
BOLT, STUD
90116-10M66-00
Unavailable
37
NUT(624)
95380-10600-00
Unavailable
40
BOLT, STUD
90116-08M64-00
Unavailable
41
NUT(6L2)
95333-08600-00
Unavailable
43
BOLT, STUD
90116-10M65-00
Unavailable
44
NUT(624)
95380-10600-00
Unavailable
46
BOLT, FLANGE
90105-08M83-00
Unavailable
47
OUTER COVER, EXHAUST
66E-41123-10-94
Unavailable
49
BOLT, WITH WASHER
90119-10M10-00
Unavailable
51
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
53
HOSE (L445)
90445-09M21-00
Unavailable
55
SPACER
66E-14763-10-94
Unavailable
58
STAY, MUFFLER 1
66E-14771-01-00
Unavailable
59
BOLT, WITH WASHER
97513-10550-00
Unavailable
60
HOSE
90445-18M16-00
Unavailable
61
JOINT, HOSE 1
63M-12581-00-00
Unavailable
62
HOSE
90445-18M16-00
Unavailable
64
HOSE
90446-24M81-00
Unavailable
69
HOSE 3
66E-12578-00-00
Unavailable
72
PIPE, OUTLET
66E-14752-10-00
Unavailable
76
CLAMP COMP (EU0)
90600-91736-00
Unavailable
80
THROUGH HULL
90604-80798-00
Unavailable
