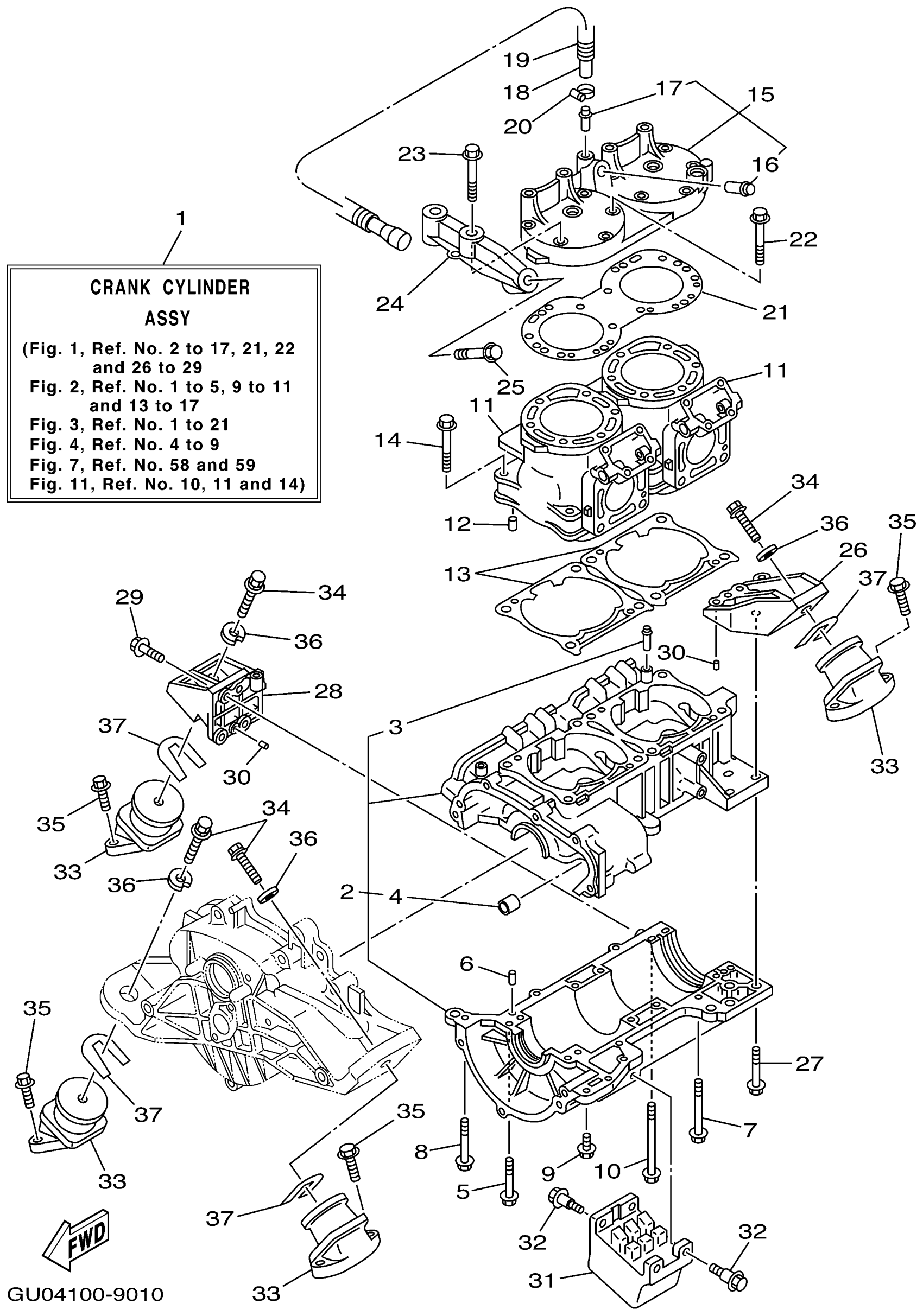

Yamaha GP800X (WAVE RUNNER GP800) GU04 1999 CYLINDER CRANKCASE 1 Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

66E-W0090-13-8S

Unavailable

2

CRANKCASE ASSY

66E-15100-10-00

$833.32

3

NIPPLE

62T-14251-10-00

$4.51

4

. BUSH, SOLID

90380-12M29-00

Unavailable

5

BOLT, WITH WASHER

90119-08M55-00

$2.95

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

BOLT, WITH WASHER

90119-06M78-00

$6.84

8

BOLT (6F5)

90119-08M09-00

$3.37

9

BOLT, WITH WASHER (682)

90119-06M13-00

Unavailable

10

BOLT, WITH WASHER

90119-08M56-00

Unavailable

11

CYLINDER & PISTON SET

66E-W1130-00-94

$1,006.05

12

PIN, DOWEL (614)

93606-12019-00

$3.05

13

GASKET, CYLINDER

66E-11351-02-00

$21.32

14

BOLT (6F5)

90119-10M07-00

$4.21

15

HEAD, CYLINDER 1

66E-11111-00-8S

Unavailable

16

. NIPPLE

66E-51129-00-00

Unavailable

17

. NIPPLE

6K8-51129-00-00

$9.62

18

HOSE 5

66E-12588-00-00

Unavailable

19

TUBE (L1040)

90446-24M94-00

Unavailable

20

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

21

. GASKET, CYLINDER HEAD 1

66E-11181-00-00

$53.99

22

BOLT, WITH WASHER

90119-08M66-00

$3.36

23

BOLT, WITH WASHER

90119-08M55-00

$2.95

24

STAY, MUFFLER 2

66E-14781-10-00

Unavailable

25

BOLT, WITH WASHER

90119-10M00-00

$8.56

26

BRACKET, REAR UPPER 1

66E-21425-10-8S

$160.59

27

BOLT, WITH WASHER

97513-08545-00

$2.73

28

BRACKET, REAR UPPER 2

66E-21426-10-8S

$104.53

29

BOLT, WITH WASHER (62X)

97513-08530-00

Unavailable

30

PIN, DOWEL (614)

93606-12019-00

$3.05

31

STOPPER, UPPER MOUNT

66E-44532-00-00

Unavailable

32

BOLT

90109-06M92-00

Unavailable

33

MOUNT RUBBER

6M6-44517-A2-94

$90.89

34

BOLT, WITH WASHER

90119-08856-00

$5.17

35

BOLT, WITH WASHER

90119-089UT-00

$3.16

36

WASHER, PLATE

90201-099U3-00

$2.16

37

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

37

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

37

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

37

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

37

SHIM (T=2.0)

EU0-67354-E0-00

$4.09
