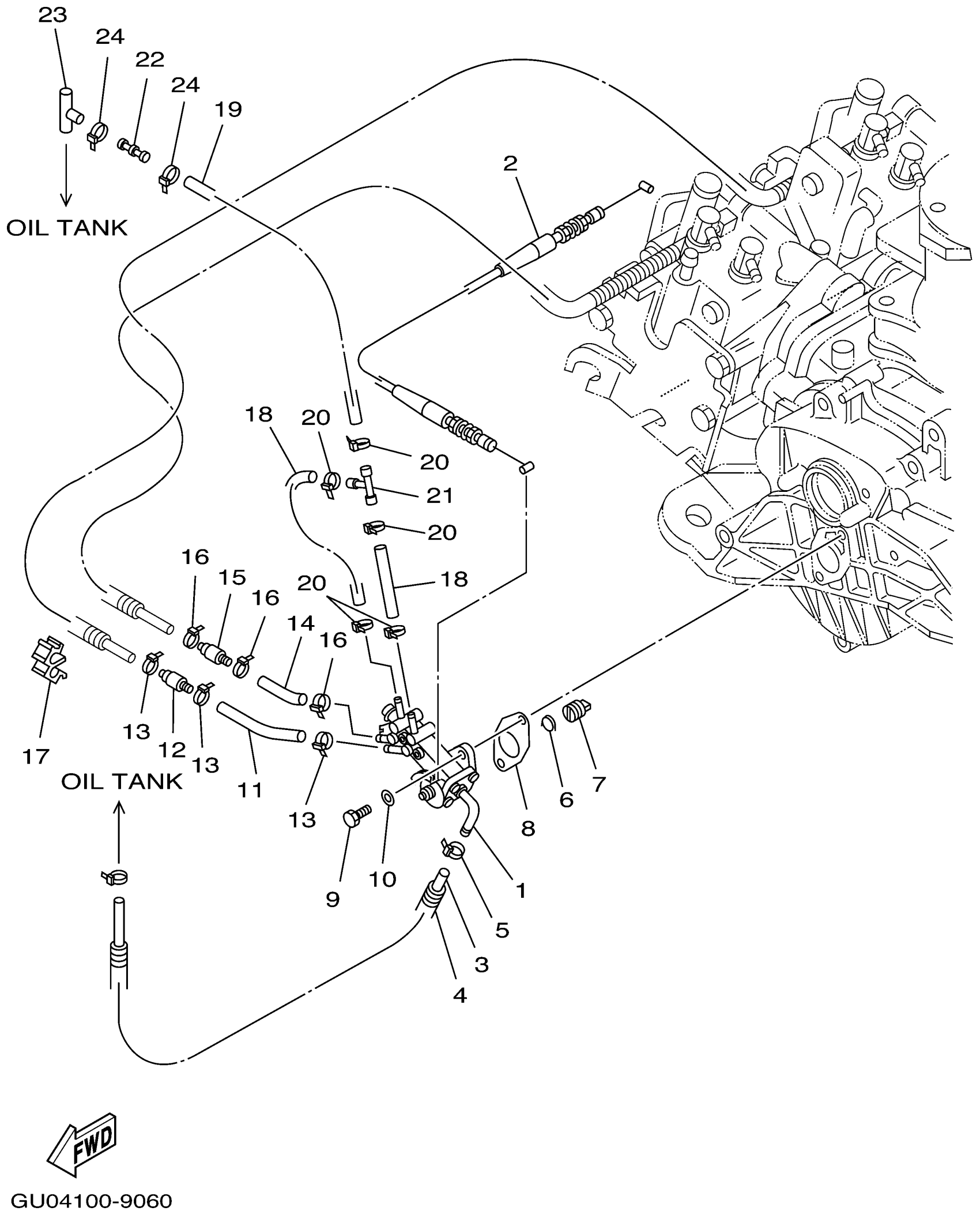

Yamaha GP800X (WAVE RUNNER GP800) GU04 1999 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSY

66E-13200-02-00

Unavailable

2

PUMP CABLE ASSY

66E-26320-00-00

Unavailable

3

HOSE (L700)

90445-117F2-00

$22.86

4

HOSE

90446-17M75-00

Unavailable

5

CLAMP

90465-10098-00

$1.68

6

SPRING

66E-13469-00-00

Unavailable

7

JOINT

65U-13132-00-00

$48.47

8

GASKET, PUMP CASE

63M-13116-00-00

$2.80

9

BOLT(7U8)

97080-06020-00

$3.63

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

HOSE(62T)

90446-07M48-00

Unavailable

12

VALVE, CHECK

6R3-13183-10-00

$39.61

13

CLAMP

90465-10098-00

$1.68

14

HOSE(62T)

90446-07M48-00

Unavailable

15

VALVE, CHECK

6R3-13183-10-00

$39.61

16

CLAMP

90465-10098-00

$1.68

17

CLAMP

90464-07M20-00

Unavailable

18

HOSE (L200)

90445-07MA3-00

$6.86

19

HOSE (L390)

90445-07M90-00

$6.59

20

CLAMP

90465-10098-00

$1.68

21

PIPE, JOINT 3

6E0-24378-00-00

$6.00

22

JOINT

63M-13132-00-00

$13.99

23

PIPE, JOINT 3

63M-24378-00-00

$5.91

24

CLAMP

90465-10098-00

$1.68
