1972 Yamaha GP433SS Shroud Diagram

← All diagrams

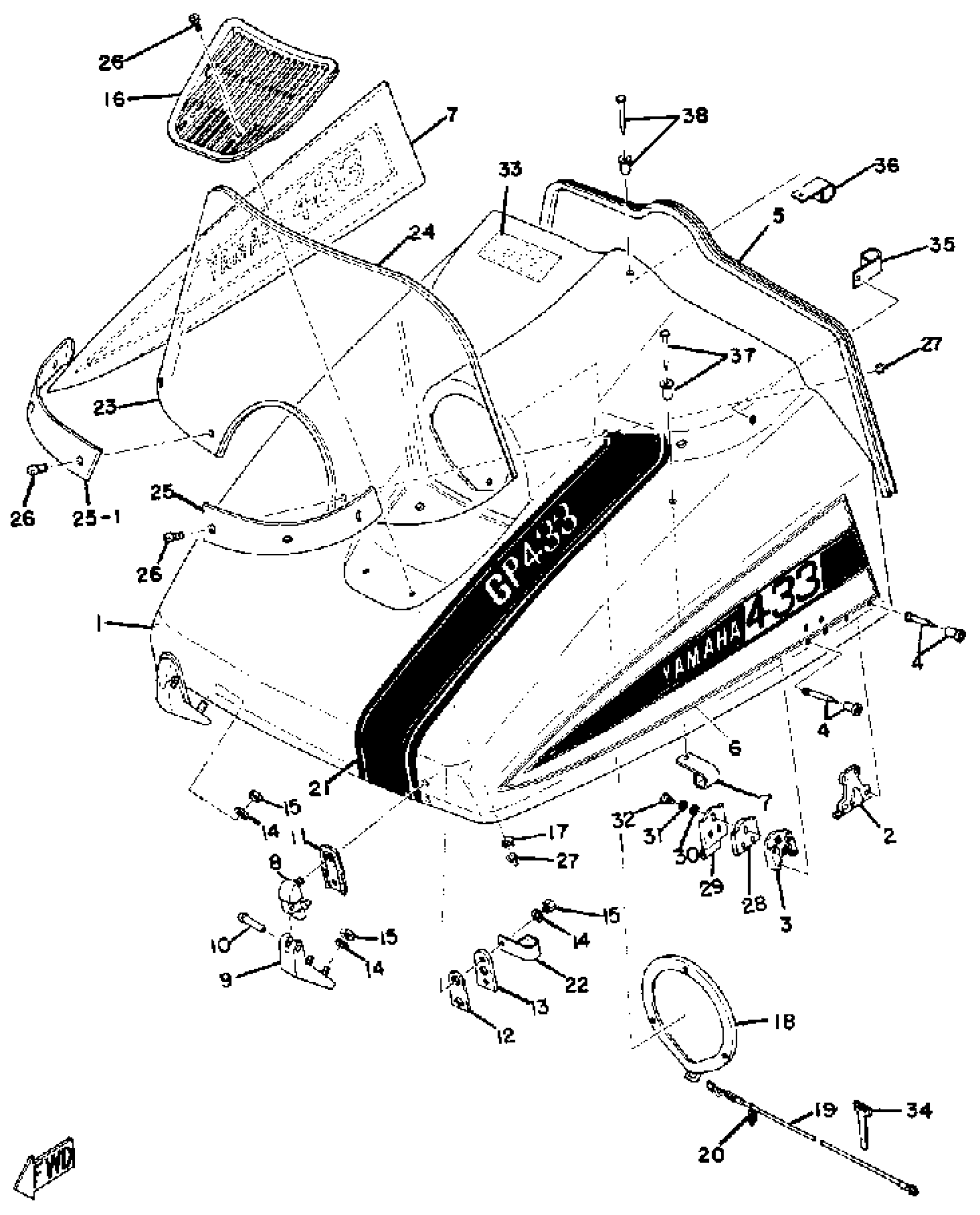

Find the part on the Shroud diagram for your 1972 Yamaha GP433SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP433SS Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD (806-77110-00)

806-77111-00-00

1
Out of stock

1

TRIM 3

806-77215-00-00

1
Out of stock

1

. TRIM, LOWER CENTER

806-77216-00-00

1
Out of stock

2

. BODY, LATCH 1

806-77171-00-00

1
Out of stock

3

CLAMP 4

810-77138-00-00

1
Out of stock

4

. RIVET, BLIND ()806-77175-00)

90267-40026-00

1
Out of stock

5

TRIM, SHROUD REAR

806-77166-00-00

1
Out of stock

6

ORNAMENT, SHROUD LEFT

828-77163-00-00

1
Out of stock

7

ORNAMENT, SHROUD RIGHT

828-77164-00-00

1
Out of stock

8

HINGE, UPPER

806-77145-00-00

1
Out of stock

9

HINGE 3

806-77147-00-00

1
Out of stock

10

PIN (806-77157-00)

90243-05002-00

1
Out of stock

11

DAMPER, FRONT

806-77198-00-00

1
Out of stock

12

DAMPER, REAR

806-77199-00-00

1
Out of stock

13

PLATE, BACK UP 1

810-77153-00-00

1
Out of stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

16

LOUVER COMP.

810-77130-00-00

1
Out of stock

17

CLAMP

810-77135-00-00

1
Out of stock

18

HOLDER, ROD UPPER

817-77139-00-00

1
Out of stock

19

STOPPER, SHROUD

821-77118-00-00

1
Out of stock

20

. CLAMP, ROD

806-77159-00-00

1
Out of stock

21

ORNAMENT 3

828-77169-00-00

1
Out of stock

22

CLAMP

90465-06013-00

1
Out of stock

23

WINDSHIELD COMP

806-77210-00-00

1
Out of stock

24

. TRIM, UPPER

806-77213-00-00

1
Out of stock

25

TRIM, LOWER LEFT

806-77214-00-00

1
Out of stock

26

SCREW, BIND

98903-05016-00

1
Out of stock

27

NUT, T (802-77217-00)

90180-05004-00

1
Out of stock

28

WASHER 2

810-77179-00-00

1
Out of stock

29

CLAMP 2

810-77136-00-00

1
Out of stock

30

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

31

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

32

BOLT, HEXAGON

97013-05010-00

—

$0.85

In stock

33

LABEL, SAFETY

288-21659-00-00

1
Out of stock

34

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

35

CLAMP(83R)

90461-08113-00

—

$10.48

In stock

36

CLAMP (813-82594-00)

90461-05001-00

1
Out of stock

37

RIVET 2 (809-77156-00)

90267-32020-00

1
Out of stock

38

RIVET (813)

90267-32070-00

—

$2.25

In stock
