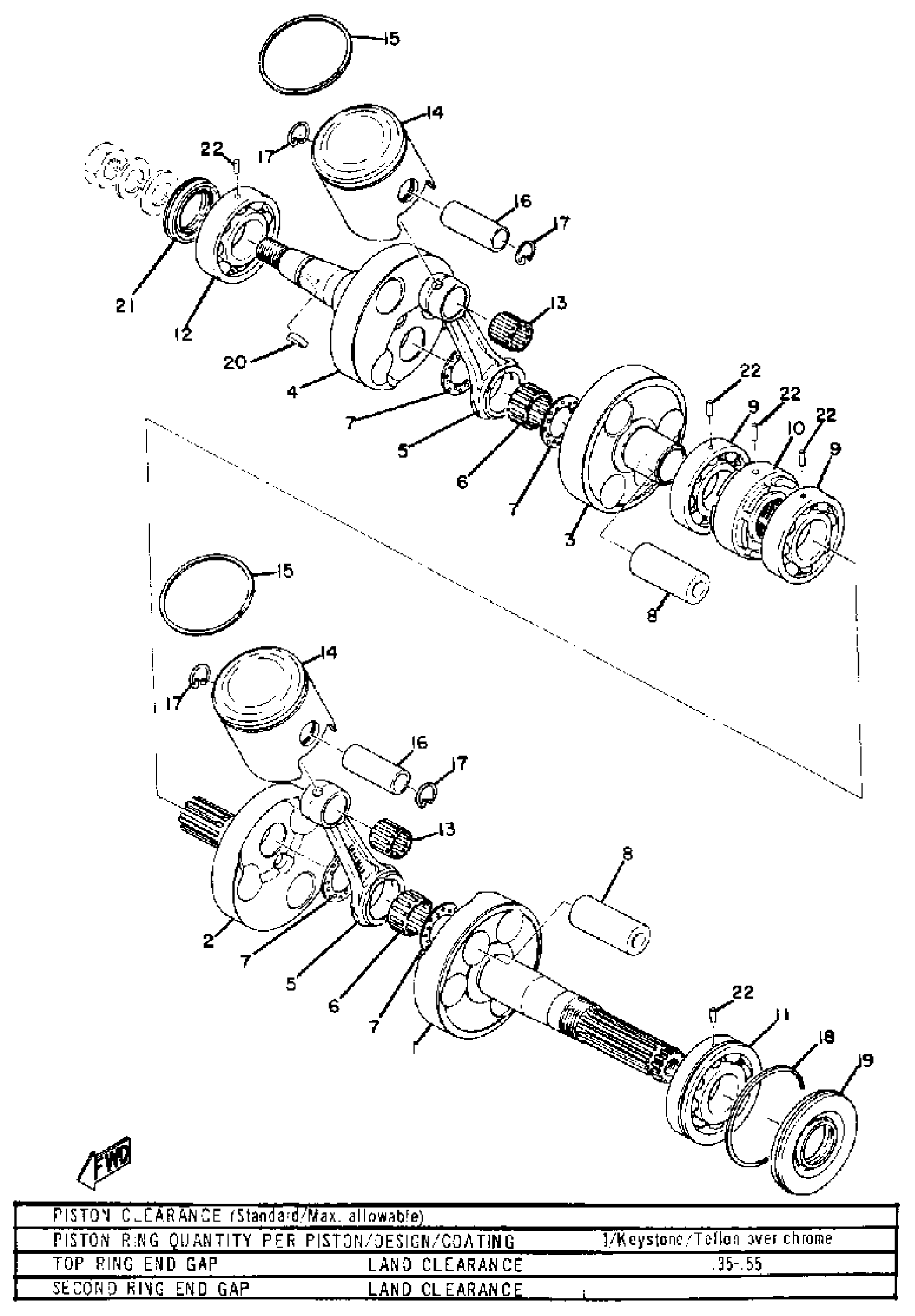

Find the part on the Crank - Piston diagram for your 1972 Yamaha GP433SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP433SS Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASS''Y

811-11400-00-00

1
Out of stock

1

CRANK 1, LEFT

811-11412-00-00

1
Out of stock

1

CRANKSHAFT ASS''Y

821-11400-00-00

1
Out of stock

1

CRANK 1, LEFT

821-11412-00-00

1
Out of stock

2

CRANK 1, RIGHT

811-11422-00-00

1
Out of stock

2

CRANK 1, RIGHT (821-11422-00)

821-11422-01-00

1
Out of stock

3

CRANK 2, LEFT

807-11432-00-00

1
Out of stock

3

CRANK 2, LEFT (821-11432-00)

821-11432-01-00

1
Out of stock

4

CRANK 2, RIGHT

807-11442-00-00

1
Out of stock

4

CRANK 2, RIGHT

821-11442-00-00

1
Out of stock

5

. ROD, CONNECTING (838-11651-00)

8A7-11651-00-00

1
Out of stock

6

BEARING

93310-424E8-00

1

$19.49

In stock

7

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

8

. PIN, CRANK 1

168-11681-00-00

1
Out of stock

8

. PIN, CRANK 1

857-11681-00-00

1
Out of stock

9

BEARING(8V0)

93306-20633-00

—

$67.35

In stock

10

. SEAL, LABYRINTH 1

811-11515-00-00

1
Out of stock

11

. BEARING

93306-30603-00

1
Out of stock

12

BEARING(8V0)

93306-20633-00

—

$67.35

In stock

13

—

$32.87

In stock

14

PISTON (.96 STD)

820-11631-02-96

1
Out of stock

14

PISTON (0.25 1ST O.S)

820-11635-02-00

1
Out of stock

14

PISTON (0.50 2ND O.S)

820-11636-02-00

1
Out of stock

15

RING, PISTON (STD)

820-11611-00-00

1
Out of stock

15

RING, PISTON (1ST O.S)

820-11611-10-00

1
Out of stock

15

RING, PISTON (2ND O.S)

820-11611-20-00

1
Out of stock

16

PIN, PISTON

818-11633-00-00

—

$28.05

In stock

17

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

18

CIRCLIP, OUTER

93440-78011-00

1
Out of stock

19

OIL SEAL, SW-TYPE

93103-32054-00

1
Out of stock

20

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

21

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

22

PIN,DOWEL (168)

93604-12037-00

—
Out of stock
