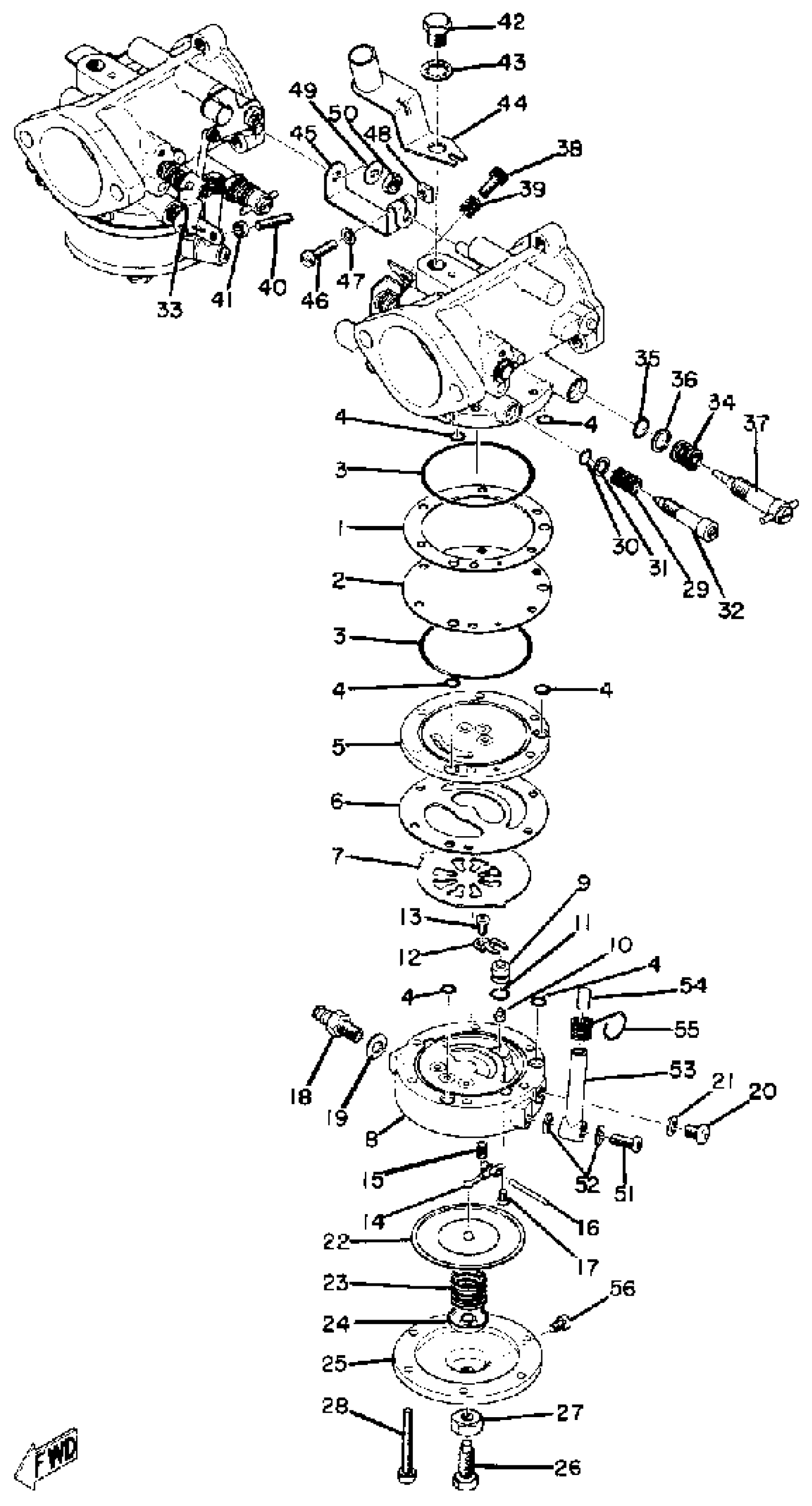

Find the part on the Carburetor diagram for your 1972 Yamaha GP433SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP433SS Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. GASKET

806-14536-00-00

1
Out of stock

1

CARBURETOR ASS''Y LEFT

828-14501-00-00

1
Out of stock

2

. DIAPHRAGM, PUMP

806-14541-00-00

1
Out of stock

2

CARBURETOR ASS''Y RIGHT

828-14502-00-00

1
Out of stock

3

. O-RING

806-14562-00-00

1
Out of stock

4

. O-RING

810-14561-00-00

1
Out of stock

5

BODY, PUMP 1

824-14542-00-00

1
Out of stock

6

GASKET

810-14553-00-00

1
Out of stock

7

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

8

BODY, PUMP 2

810-14543-00-00

1
Out of stock

9

VALVE SEAT ASS''Y (K1.4)

824-14590-00-00

1
Out of stock

10

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

11

. O-RING

810-24486-00-00

1
Out of stock

12

PLATE, PIN SET

810-14549-00-00

1
Out of stock

13

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

14

ARM, FLOAT

810-14547-00-00

1
Out of stock

15

. SPRING

810-14556-00-00

1
Out of stock

16

. DIAPHRAGM, PUMP

806-14541-00-00

1
Out of stock

17

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

18

. JOINT

813-14568-00-00

1
Out of stock

19

. WASHER

810-14558-00-00

1
Out of stock

20

. SCREW, PLUG

806-14567-01-00

1
Out of stock

21

. WASHER

810-14597-00-00

1
Out of stock

22

DIAPHRAGM

810-14545-00-00

—
Out of stock

23

. SPRING, MAIN DIAPHRAGM

810-14555-00-00

1
Out of stock

24

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

25

. BODY, PUMP 3

813-14544-00-00

1
Out of stock

26

. SCREW, STOP

824-14565-00-00

1
Out of stock

27

. NUT

95380-08700-00

1

$3.07

In stock

28

. SCREW, PAN HEAD

824-24567-00-00

1
Out of stock

29

. SPRING, SLOW ADJUSTER

824-14531-00-00

1
Out of stock

30

. O-RING

824-14563-00-00

1
Out of stock

31

. WASHER

806-14596-00-00

1
Out of stock

32

. SCREW, ADJUST

824-14522-00-00

1
Out of stock

33

. SCREW, ADJUST

828-14522-00-00

1
Out of stock

34

SPRING, MAIN AJUSTER

824-14533-00-00

1
Out of stock

35

. O-RING

824-14564-00-00

1
Out of stock

36

. WASHER

824-14597-00-00

1
Out of stock

37

. SCREW, MAIN ADJUSTER

828-14521-00-00

1
Out of stock

38

. SCREW, STOP

806-14523-00-00

1
Out of stock

39

. SPRING MAIN ADJUSTER

806-14533-00-00

1
Out of stock

40

. SCREW, STOP

813-14591-00-00

1
Out of stock

41

. NUT

806-14594-00-00

1
Out of stock

42

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

43

WASHER, TOOTH

92901-08300-00

1
Out of stock

44

. BRACKET, THROTTLE

828-14571-00-00

1
Out of stock

45

. CONNECTOR

806-14588-00-00

1
Out of stock

46

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

47

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

48

NUT

806-14595-00-00

1
Out of stock

49

. WASHER, LOCK (806-14593-00)

806-14598-00-00

1
Out of stock

50

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

51

. SCREW

8A1-14592-00-00

1
Out of stock

52

. WASHER

806-14559-00-00

1
Out of stock

53

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

54

. CAP, BLIND

810-24462-01-00

1
Out of stock

55

. CLIP, PIPE

824-14159-00-00

1
Out of stock

56

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
