1972 Yamaha GP433SS Cylinder Piston Diagram

← All diagrams

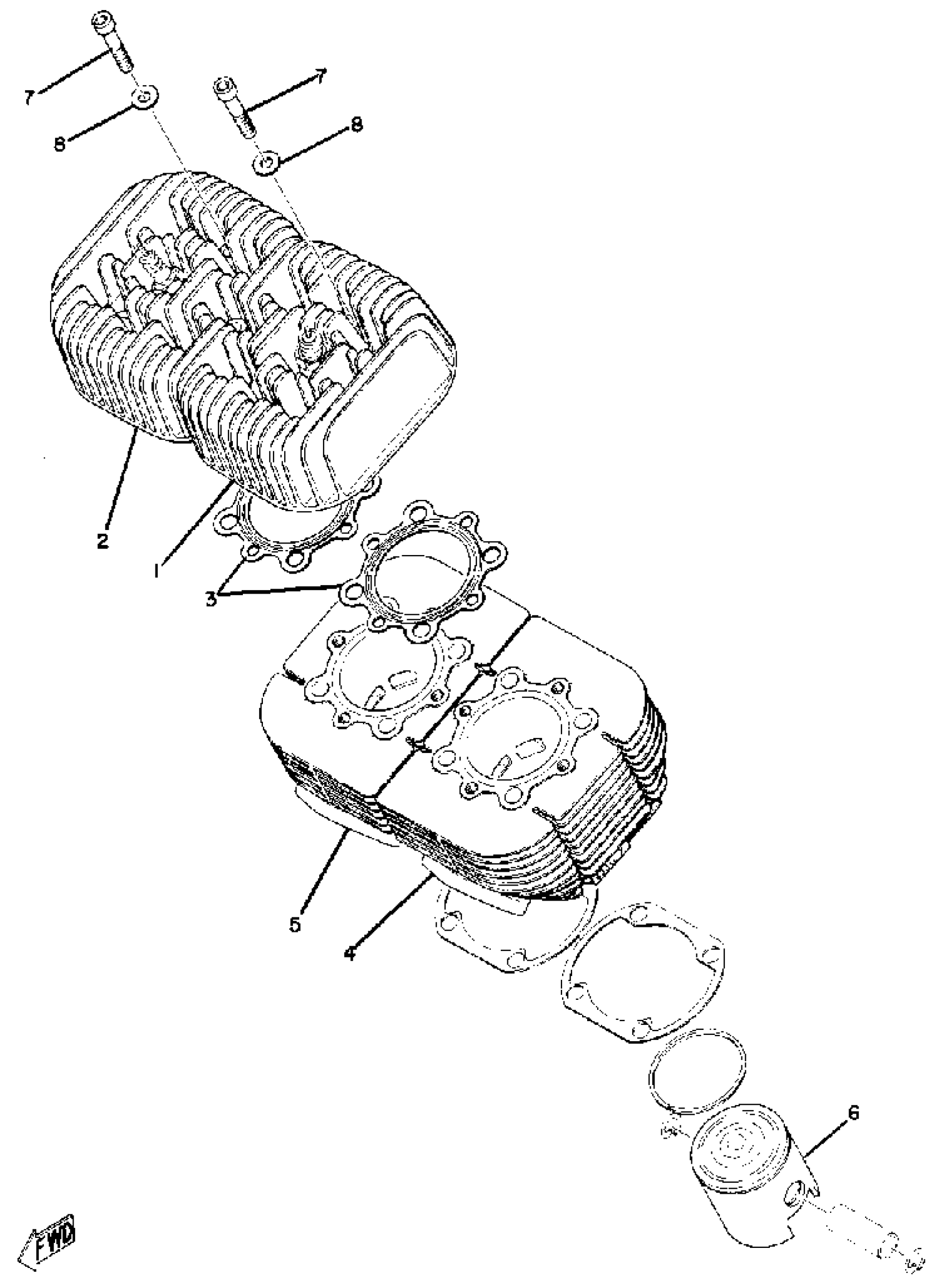

Find the part on the Cylinder Piston diagram for your 1972 Yamaha GP433SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP433SS Cylinder Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER LEFT

828-11111-70-00

1
Out of stock

2

HEAD, CYLINDER RIGHT

828-11121-70-00

1
Out of stock

3

GASKET, CYL HEAD 1

828-11181-09-00

1
Out of stock

4

CYLINDER, LEFT

828-11311-70-00

1
Out of stock

5

CYLINDER, RIGHT

828-11321-70-00

1
Out of stock

6

PISTON (.96MM STD)

828-11631-70-96

1
Out of stock

6

PISTON (0.25MM 1ST O.S))

828-11635-70-00

1
Out of stock

6

PISTON (0.50MM 2ND O.S))

828-11636-70-00

1
Out of stock

7

BOLT, SOCKET

91317-08050-00

1

$6.17

In stock

8

WASHER, PLAIN

92903-08200-00

1
Out of stock
