1972 Yamaha GP433SS Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1972 Yamaha GP433SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

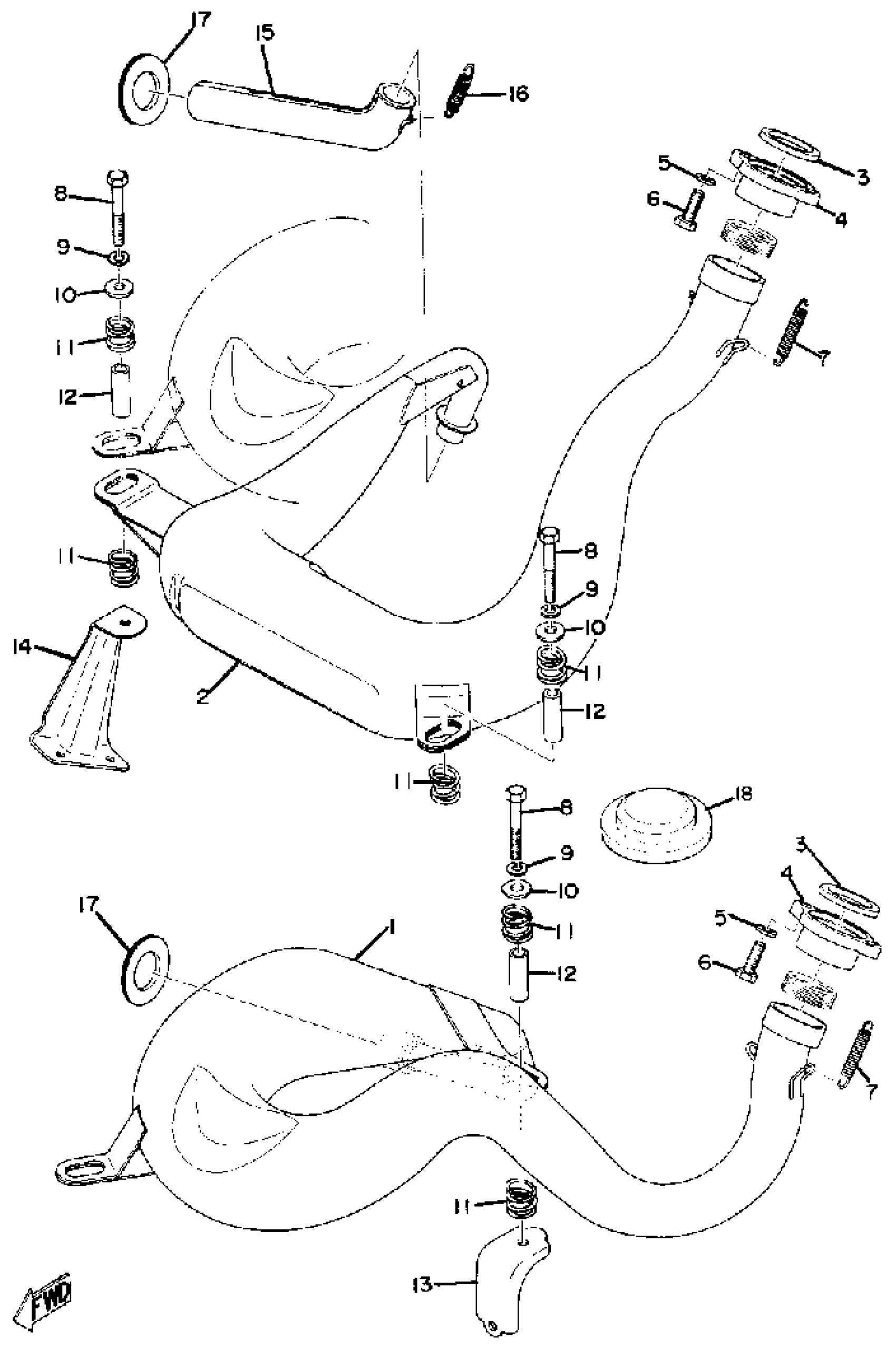

1972 Yamaha GP433SS Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASS''Y, LEFT

828-14610-70-00

1
Out of stock

2

EXHAUST PIPE ASS''Y, RIGHT

828-14620-70-00

1
Out of stock

3

GASKET, EXHAUST PIPE

89A-14613-00-00

1

$13.42

In stock

4

NUT, RING

828-14612-70-00

1
Out of stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

BOLT (682)

97013-08025-00

1

$6.80

In stock

7

SPRING, HOOK (828-14683-70)

90506-12027-00

1
Out of stock

8

BOLT (663)

97013-08060-00

1

$3.25

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

WASHER, PLATE (5J0)

90201-085E6-00

1
Out of stock

11

SPRING, COMPRESSION (802-14773-00)

90501-26149-00

1
Out of stock

12

COLLAR (802-14638-00)

90387-09071-00

1
Out of stock

13

STAY, MUFFLER 1

820-21445-00-00

1
Out of stock

14

STAY, MUFFLER 2

820-21446-00-00

1
Out of stock

15

PIPE, MUFFLER TAIL

818-14746-00-00

1
Out of stock

16

SPRING 214-14683-01

90506-12029-00

—

$6.49

In stock

17

PROTECTOR, MUFFLER 2

818-14728-00-00

1
Out of stock

18

PROTECTOR, MUFFLER 3

809-14738-00-00

1
Out of stock
