1972 Yamaha GP292 Seat GP-292B Diagram

← All diagrams

Find the part on the Seat GP-292B diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

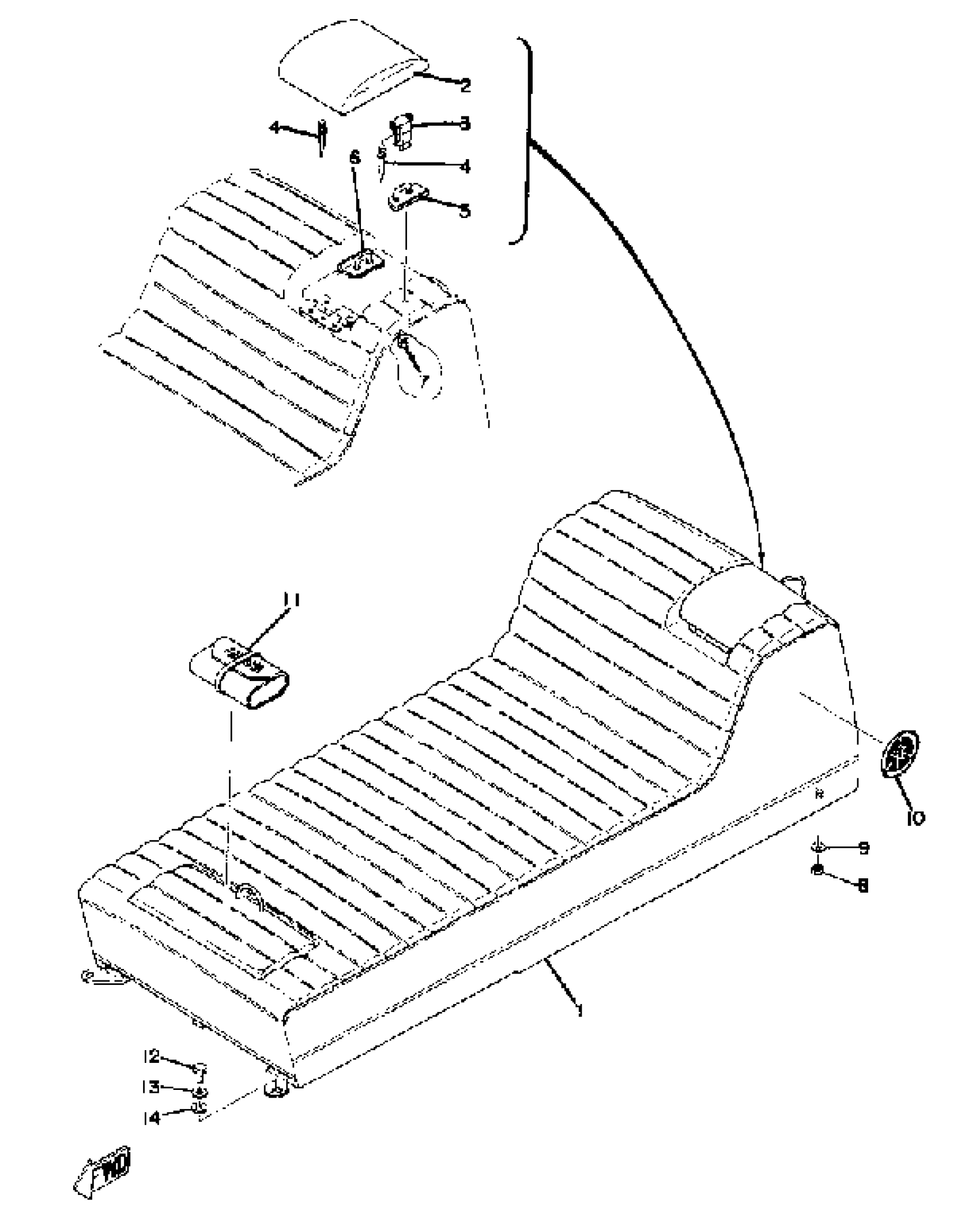

1972 Yamaha GP292 Seat GP-292B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

(841-24730-00-00)

1
Out of stock

1

COVER, DOUBLE SEAT

(841-24731-00-00)

1
Out of stock

2

. LID, DOUBLE SEAT

838-24765-00-00

1
Out of stock

3

SPRING, SEAT BACK

(821-24794-00-00)

1
Out of stock

4

RIVET, BLIND

(90267-32017-00)

1
Out of stock

5

PIN

(838-24793-00-00)

1
Out of stock

6

PIN

(838-24784-00-00)

1
Out of stock

7

NUT(650)

95380-06700-00

1

$6.17

In stock

8

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

9

WASHER, CONICAL SPRING

90208-08011-00

1
Out of stock

10

EMBLEM 2

821-77352-00-00

1
Out of stock

11

TOOL KIT

(821-28100-10-00)

1
Out of stock

12

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

13

WASHER, SPRING

92907-06100-00

1
Out of stock

14

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock
